| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_079T01_9000005284_37221cztM0_level2.evt | modeM0/AS1A11_079T01_9000005284_37221cztM0_level2_quad_clean.evt |
| Size (bytes) | 451,068,480 | 72,198,720 |
| Size | 430.2 MB | 68.9 MB |
| Events in quadrant A | 2,896,976 | 456,738 |
| Events in quadrant B | 2,913,369 | 454,641 |
| Events in quadrant C | 3,449,825 | 445,913 |
| Events in quadrant D | 4,013,464 | 430,339 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12212 | 3 |
| B | 0 | 12316 | 2 |
| C | 0 | 13650 | 2 |
| D | 0 | 15659 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5698 | 16 | 0.280800% |
| B | 5698 | 71 | 1.246051% |
| C | 5698 | 164 | 2.878203% |
| D | 5698 | 223 | 3.913654% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7100 | 5699 | 11 | 11 | 0.15% | 0.19% |  |
| B | 7100 | 5699 | 51 | 51 | 0.72% | 0.89% |  |
| C | 7100 | 5699 | 133 | 133 | 1.87% | 2.33% |  |
| D | 7100 | 5699 | 162 | 162 | 2.28% | 2.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 278326 | 2084.19 | 654 | 640 | 133.2 |
| A | 13 | 248 | 41897 | 309.66 | 654 | 640 | 133.2 |
| A | 7 | 16 | 19780 | 143.66 | 654 | 640 | 133.2 |
| B | 5 | 172 | 200375 | 1571.07 | 648 | 630 | 127.1 |
| B | 0 | 213 | 101995 | 797.27 | 648 | 630 | 127.1 |
| B | 0 | 155 | 34765 | 268.48 | 648 | 630 | 127.1 |
| C | 14 | 254 | 395804 | 2657.96 | 635 | 638 | 148.7 |
| C | 15 | 214 | 240795 | 1615.34 | 635 | 638 | 148.7 |
| C | 0 | 10 | 171549 | 1149.58 | 635 | 638 | 148.7 |
| D | 13 | 249 | 330430 | 2164.36 | 628 | 610 | 152.4 |
| D | 1 | 52 | 313137 | 2050.88 | 628 | 610 | 152.4 |
| D | 2 | 249 | 268484 | 1757.86 | 628 | 610 | 152.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

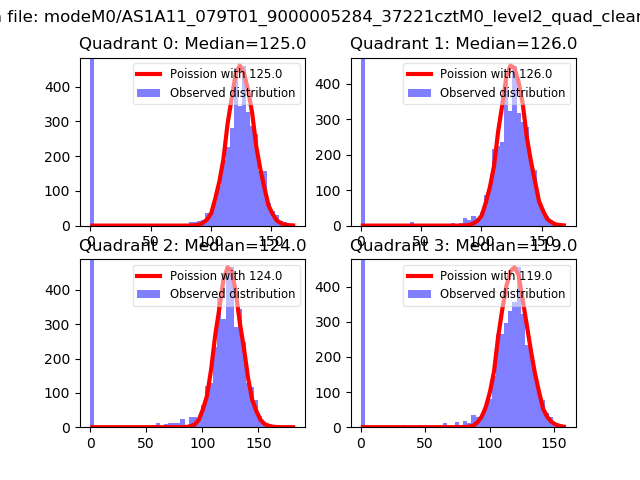

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

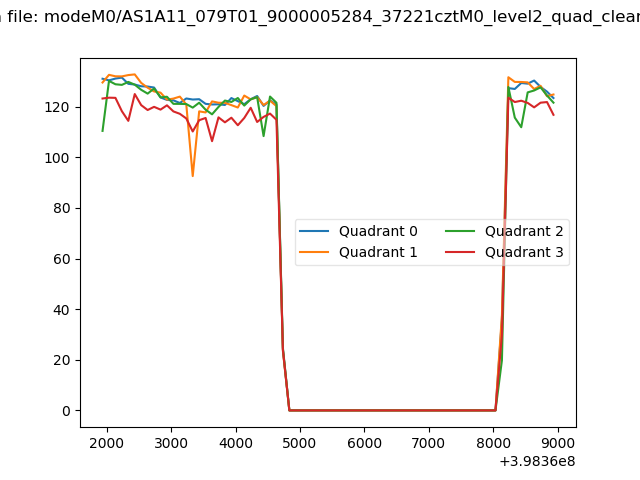

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

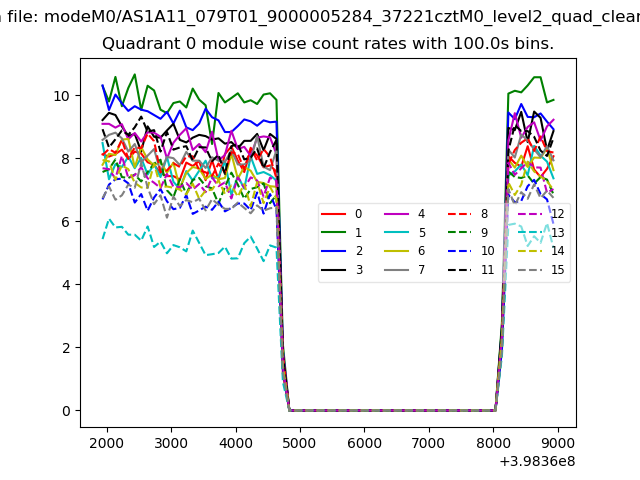

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

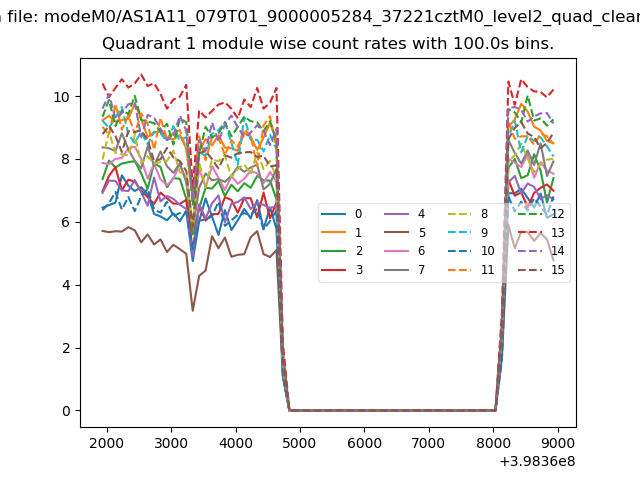

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

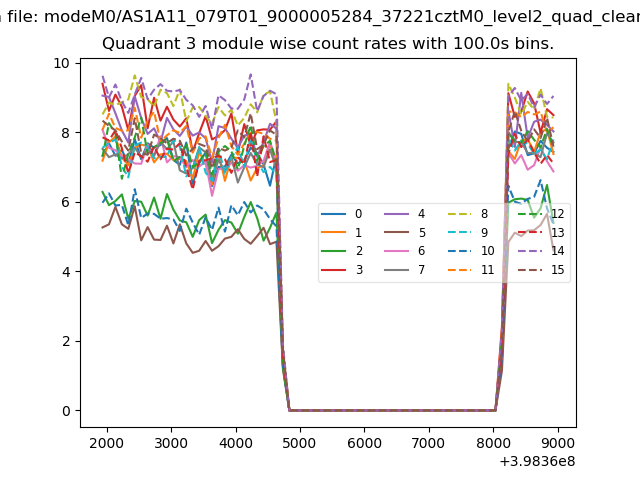

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
