| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T11_9000005286_37233cztM0_level2.evt | modeM0/AS1A10_123T11_9000005286_37233cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,108,480 | 84,723,840 |
| Size | 426.4 MB | 80.8 MB |
| Events in quadrant A | 3,006,229 | 569,407 |
| Events in quadrant B | 3,365,901 | 560,029 |
| Events in quadrant C | 3,101,411 | 539,021 |
| Events in quadrant D | 3,708,052 | 526,852 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12162 | 3 |
| B | 0 | 13462 | 2 |
| C | 0 | 12283 | 2 |
| D | 0 | 14424 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5290 | 52 | 0.982987% |
| B | 5290 | 67 | 1.266541% |
| C | 5290 | 141 | 2.665406% |
| D | 5291 | 147 | 2.778303% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7353 | 5291 | 32 | 32 | 0.44% | 0.60% |  |
| B | 7353 | 5291 | 28 | 28 | 0.38% | 0.53% |  |
| C | 7353 | 5291 | 119 | 119 | 1.62% | 2.25% |  |
| D | 7354 | 5292 | 115 | 115 | 1.56% | 2.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 291335 | 2279.35 | 631 | 619 | 127.5 |
| A | 15 | 237 | 95788 | 746.17 | 631 | 619 | 127.5 |
| A | 9 | 143 | 69405 | 539.31 | 631 | 619 | 127.5 |
| B | 4 | 232 | 277376 | 2352.93 | 618 | 602 | 117.6 |
| B | 0 | 190 | 181956 | 1541.74 | 618 | 602 | 117.6 |
| B | 0 | 213 | 144508 | 1223.38 | 618 | 602 | 117.6 |
| C | 0 | 10 | 266876 | 1906.71 | 600 | 605 | 139.6 |
| C | 14 | 254 | 236236 | 1687.3 | 600 | 605 | 139.6 |
| C | 15 | 214 | 225303 | 1609.01 | 600 | 605 | 139.6 |
| D | 13 | 249 | 188525 | 1247.26 | 610 | 594 | 150.7 |
| D | 2 | 120 | 188077 | 1244.28 | 610 | 594 | 150.7 |
| D | 12 | 248 | 141566 | 935.6 | 610 | 594 | 150.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

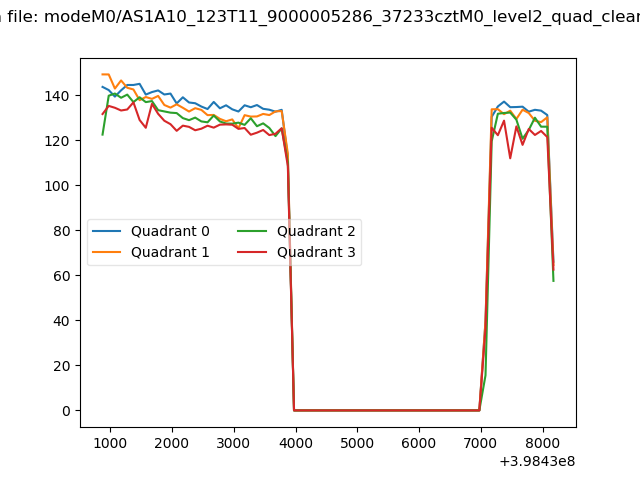

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

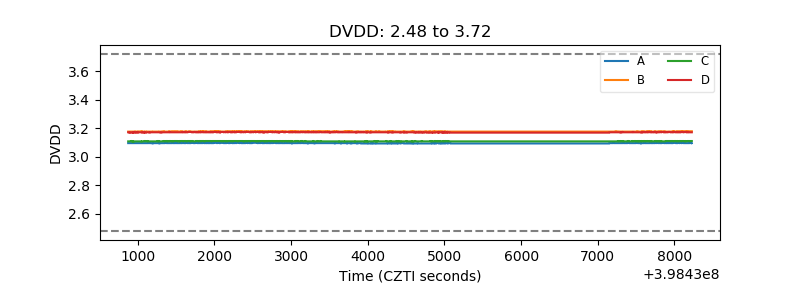

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

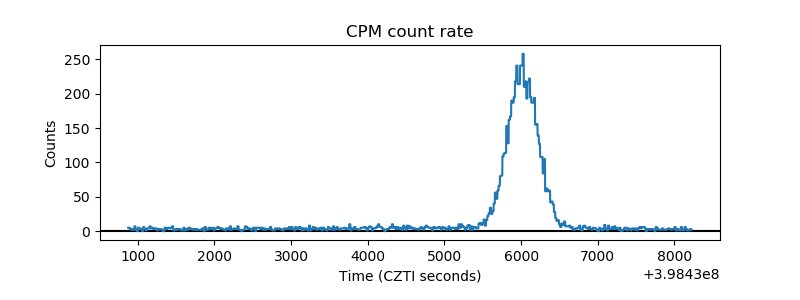

| _CPM_Rate |  |

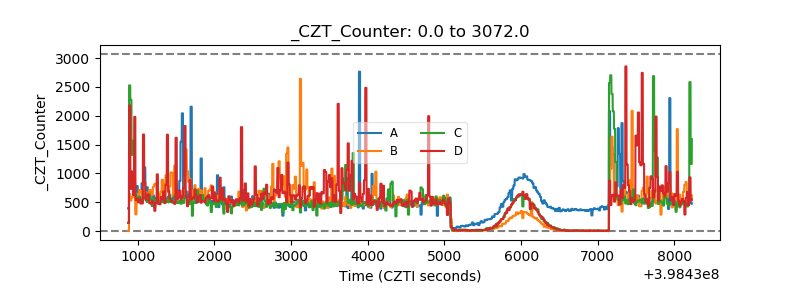

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

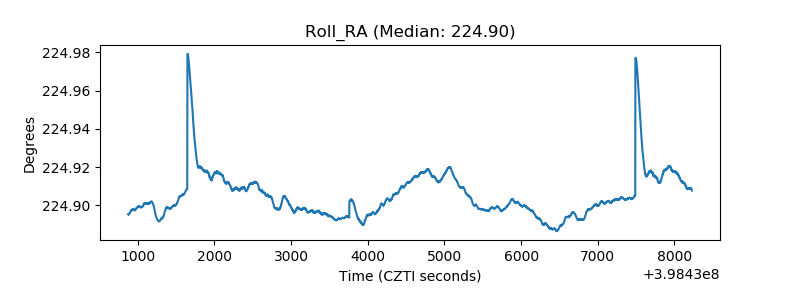

| _Roll_RA |  |
| Veto Counter |  |
