| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T11_9000005286_37243cztM0_level2.evt | modeM0/AS1A10_123T11_9000005286_37243cztM0_level2_quad_clean.evt |
| Size (bytes) | 153,031,680 | 32,679,360 |
| Size | 145.9 MB | 31.2 MB |
| Events in quadrant A | 974,866 | 226,362 |
| Events in quadrant B | 1,374,483 | 208,244 |
| Events in quadrant C | 866,548 | 221,110 |
| Events in quadrant D | 1,301,643 | 209,488 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4320 | 508 |
| B | 0 | 5858 | 567 |
| C | 0 | 3720 | 227 |
| D | 0 | 5345 | 405 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 4 |
| B | 0 | 16 | 6 |
| C | 0 | 12 | 2 |
| D | 0 | 10 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 1 |
| B | 0 | 38 | 3 |
| C | 0 | 39 | 3 |
| D | 0 | 39 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1688 | 25 | 1.481043% |
| B | 1680 | 164 | 9.761905% |
| C | 1698 | 1 | 0.058893% |
| D | 1687 | 61 | 3.615886% |

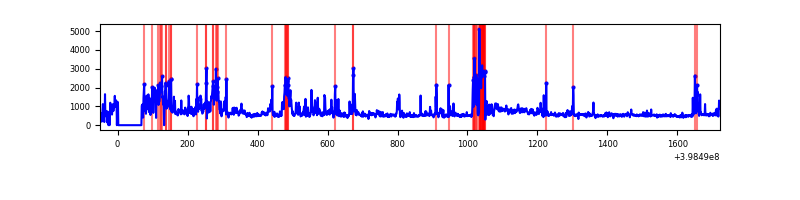

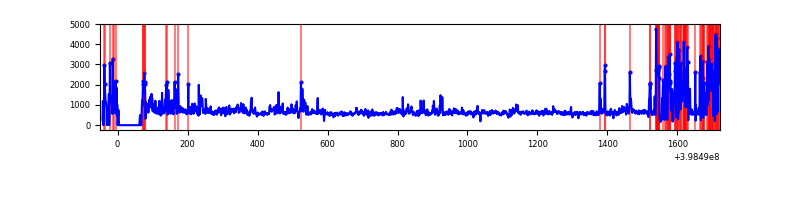

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1772 | 1700 | 18 | 18 | 1.02% | 1.06% |  |
| B | 1763 | 1695 | 92 | 92 | 5.22% | 5.43% |  |
| C | 1772 | 1706 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1770 | 1699 | 58 | 58 | 3.28% | 3.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 58683 | 1352.31 | 202 | 198 | 43.2 |
| A | 9 | 143 | 44987 | 1035.63 | 202 | 198 | 43.2 |
| A | 13 | 248 | 42631 | 981.15 | 202 | 198 | 43.2 |
| B | 12 | 18 | 335611 | 8920.36 | 187 | 183 | 37.6 |
| B | 0 | 230 | 91573 | 2430.42 | 187 | 183 | 37.6 |
| B | 0 | 213 | 57955 | 1536.39 | 187 | 183 | 37.6 |
| C | 15 | 214 | 71214 | 1488.6 | 198 | 199 | 47.7 |
| C | 14 | 254 | 12549 | 258.88 | 198 | 199 | 47.7 |
| C | 8 | 79 | 3858 | 76.7 | 198 | 199 | 47.7 |
| D | 13 | 171 | 201844 | 4022.56 | 198 | 192 | 50.1 |
| D | 2 | 249 | 88461 | 1760.79 | 198 | 192 | 50.1 |
| D | 13 | 249 | 84439 | 1680.56 | 198 | 192 | 50.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

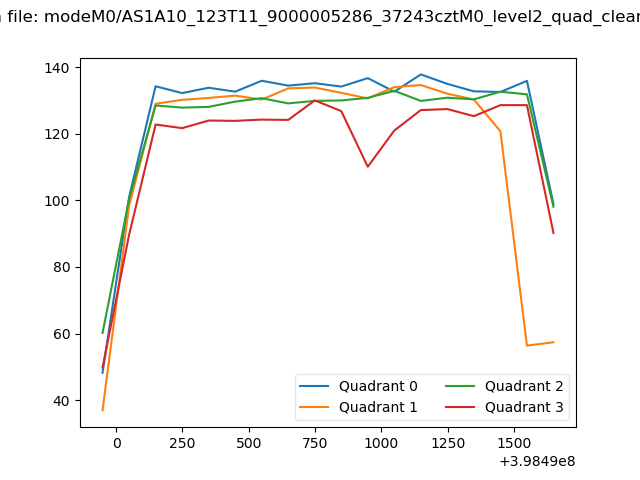

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

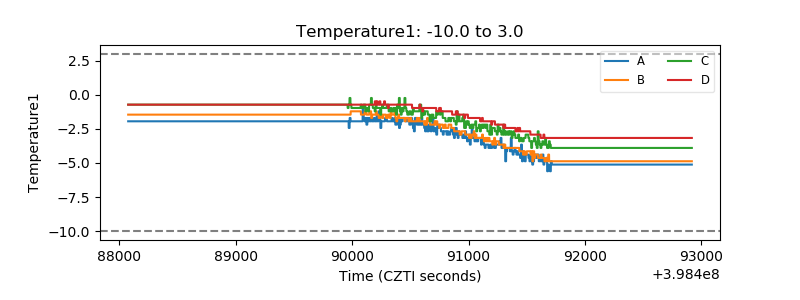

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

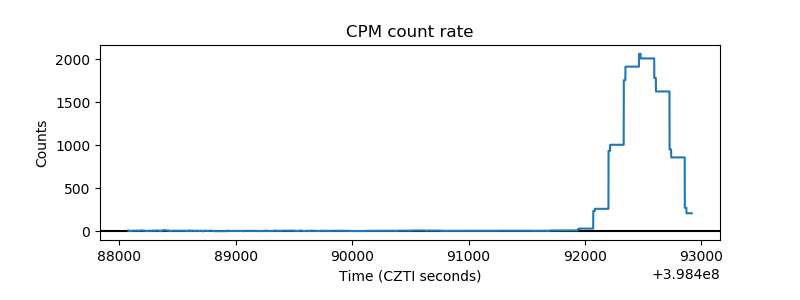

| _CPM_Rate |  |

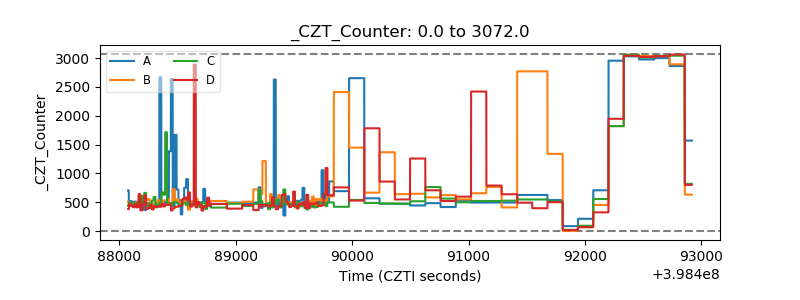

| CZT Counter |  |

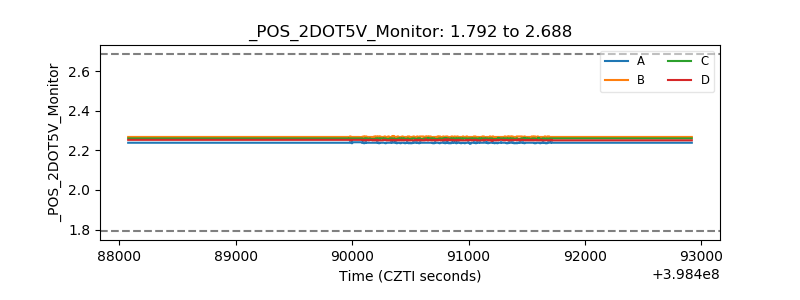

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
