| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T04_9000005288_37249cztM0_level2.evt | modeM0/AS1A10_094T04_9000005288_37249cztM0_level2_quad_clean.evt |
| Size (bytes) | 260,061,120 | 44,115,840 |
| Size | 248.0 MB | 42.1 MB |
| Events in quadrant A | 2,055,022 | 272,552 |
| Events in quadrant B | 1,669,289 | 285,767 |
| Events in quadrant C | 1,721,491 | 283,474 |
| Events in quadrant D | 2,214,331 | 269,325 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 140349397642024 | 46 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 64 | 0 |
| B | 0 | 64 | 0 |
| C | 0 | 64 | 0 |
| D | 0 | 64 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8154 | 1 |
| B | 0 | 7102 | 1 |
| C | 0 | 7142 | 1 |
| D | 0 | 8739 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3150 | 178 | 5.650794% |
| B | 3150 | 12 | 0.380952% |
| C | 3150 | 44 | 1.396825% |
| D | 3150 | 141 | 4.476190% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

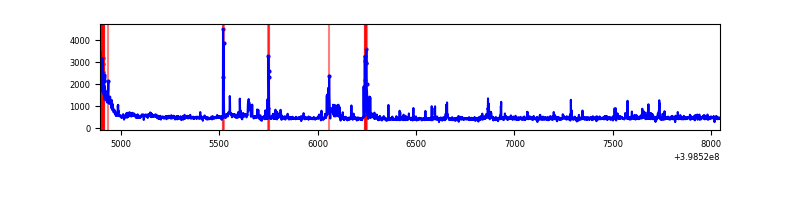

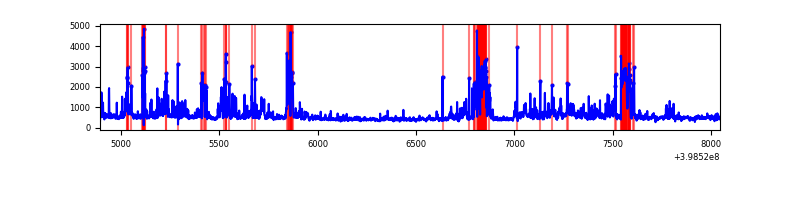

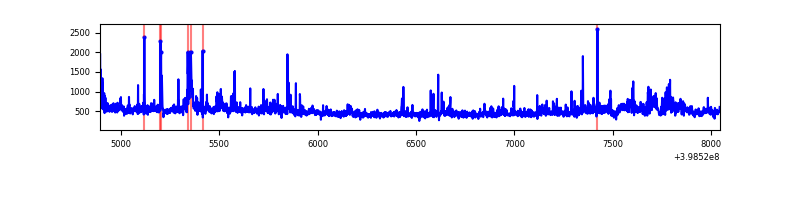

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3150 | 3150 | 140 | 140 | 4.44% | 4.44% |  |
| B | 3150 | 3150 | 7 | 7 | 0.22% | 0.22% |  |
| C | 3150 | 3150 | 33 | 33 | 1.05% | 1.05% |  |
| D | 3150 | 3150 | 131 | 131 | 4.16% | 4.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 528441 | 7668.72 | 333 | 327 | 68.9 |
| A | 10 | 83 | 157808 | 2286.77 | 333 | 327 | 68.9 |
| A | 13 | 248 | 38122 | 548.81 | 333 | 327 | 68.9 |
| B | 5 | 200 | 121280 | 1835.12 | 340 | 332 | 65.9 |
| B | 0 | 190 | 75038 | 1133.5 | 340 | 332 | 65.9 |
| B | 0 | 230 | 32623 | 489.94 | 340 | 332 | 65.9 |
| C | 15 | 214 | 132960 | 1739.17 | 326 | 329 | 76.3 |
| C | 14 | 254 | 111369 | 1456.05 | 326 | 329 | 76.3 |
| C | 0 | 10 | 87289 | 1140.29 | 326 | 329 | 76.3 |
| D | 10 | 253 | 196032 | 2419.35 | 327 | 317 | 80.9 |
| D | 12 | 218 | 168057 | 2073.53 | 327 | 317 | 80.9 |
| D | 12 | 233 | 167037 | 2060.92 | 327 | 317 | 80.9 |

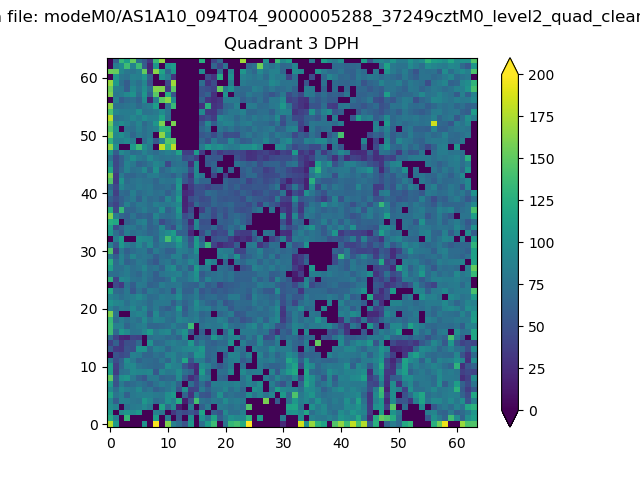

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

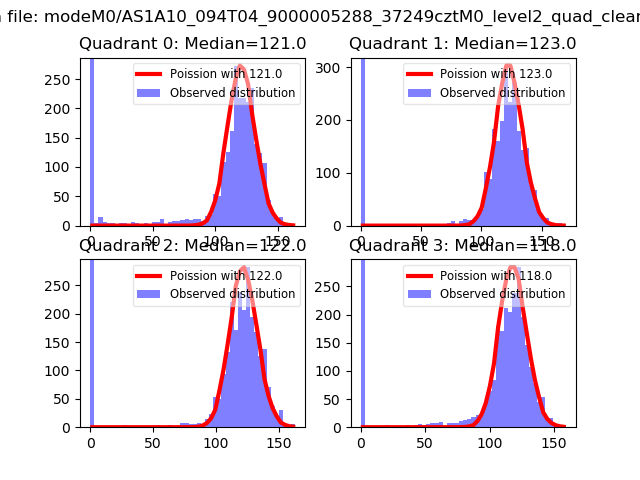

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

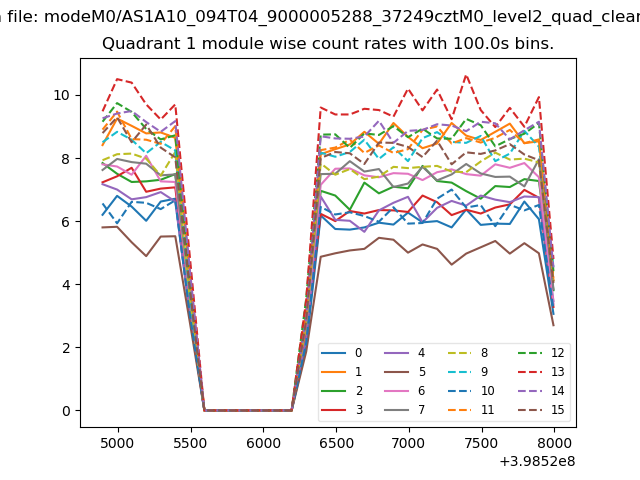

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

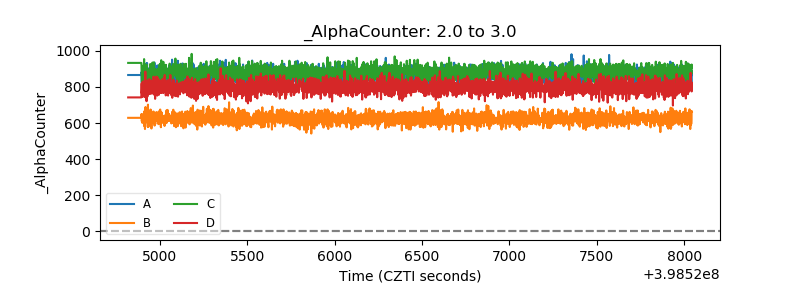

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

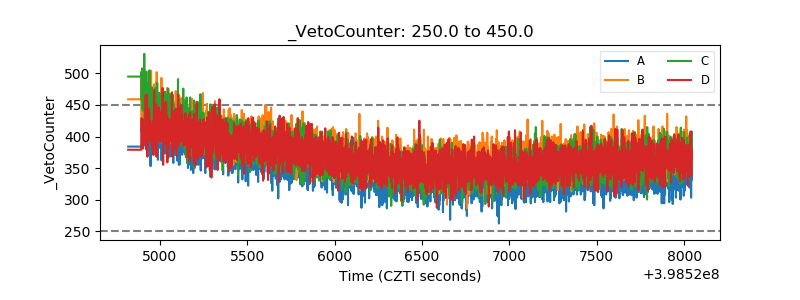

| Veto Counter |  |
