| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_087T01_9000005292_37257cztM0_level2.evt | modeM0/AS1T04_087T01_9000005292_37257cztM0_level2_quad_clean.evt |
| Size (bytes) | 16,868,160 | 5,356,800 |
| Size | 16.1 MB | 5.1 MB |
| Events in quadrant A | 126,414 | 33,849 |
| Events in quadrant B | 117,832 | 34,522 |
| Events in quadrant C | 136,833 | 35,179 |
| Events in quadrant D | 107,785 | 31,128 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 2 |
| C | 0 | 7 | 1 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 794 | 269 |
| B | 0 | 782 | 258 |
| C | 0 | 851 | 272 |
| D | 0 | 821 | 307 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 262 | 0 | 0.000000% |
| B | 260 | 0 | 0.000000% |
| C | 274 | 0 | 0.000000% |
| D | 250 | 1 | 0.400000% |

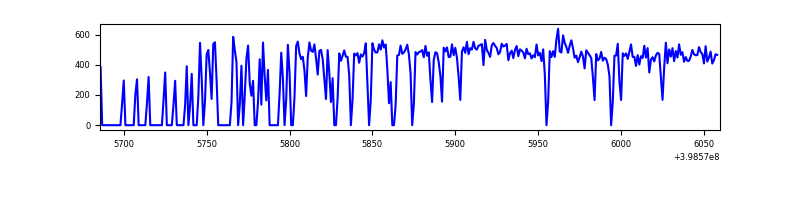

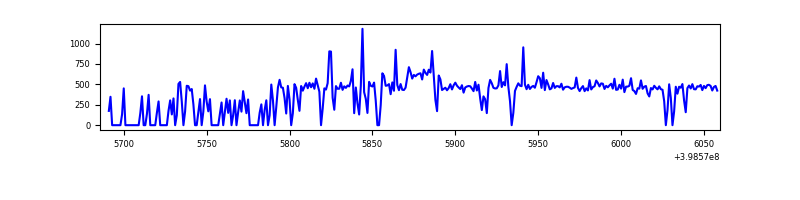

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 374 | 299 | 0 | 0 | 0.00% | 0.00% |  |
| B | 347 | 300 | 0 | 0 | 0.00% | 0.00% |  |
| C | 368 | 313 | 0 | 0 | 0.00% | 0.00% |  |
| D | 374 | 296 | 1 | 1 | 0.27% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8058 | 1011.46 | 29 | 28 | 7.9 |
| A | 13 | 6 | 4532 | 567.32 | 29 | 28 | 7.9 |
| A | 13 | 248 | 424 | 49.88 | 29 | 28 | 7.9 |
| B | 0 | 230 | 1754 | 226.29 | 28 | 28 | 7.6 |
| B | 0 | 213 | 1524 | 196.14 | 28 | 28 | 7.6 |
| B | 5 | 255 | 1489 | 191.55 | 28 | 28 | 7.6 |
| C | 15 | 214 | 11376 | 1302.94 | 29 | 29 | 8.7 |
| C | 14 | 254 | 7150 | 817.68 | 29 | 29 | 8.7 |
| C | 3 | 233 | 3672 | 418.32 | 29 | 29 | 8.7 |
| D | 1 | 52 | 4961 | 606.61 | 26 | 25 | 8.1 |
| D | 2 | 250 | 1489 | 179.92 | 26 | 25 | 8.1 |
| D | 2 | 234 | 1134 | 136.29 | 26 | 25 | 8.1 |

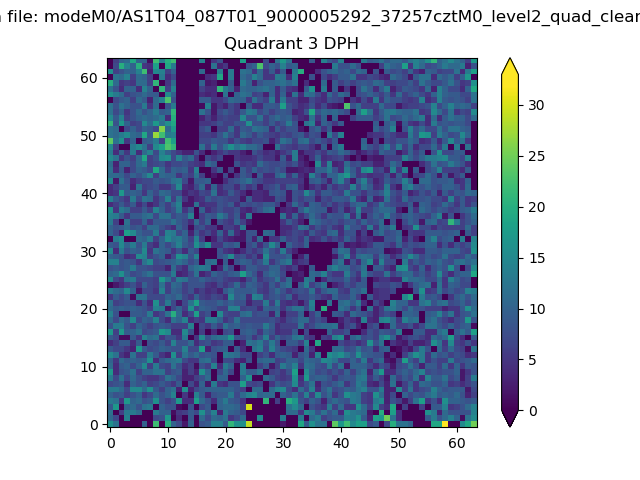

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

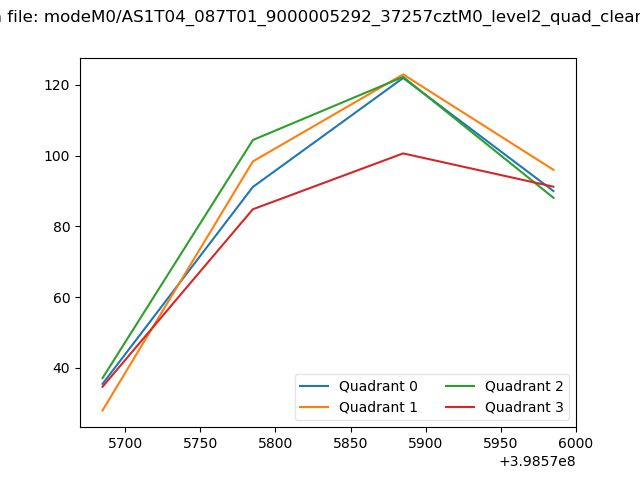

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

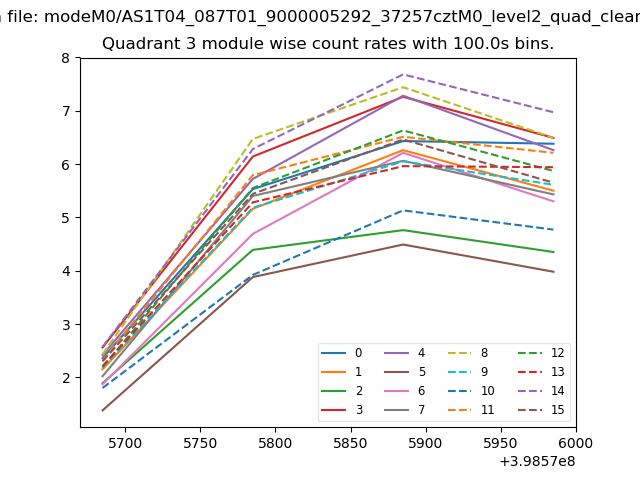

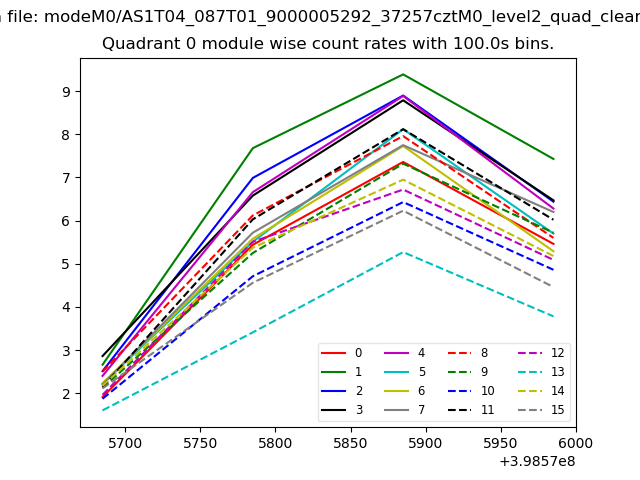

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

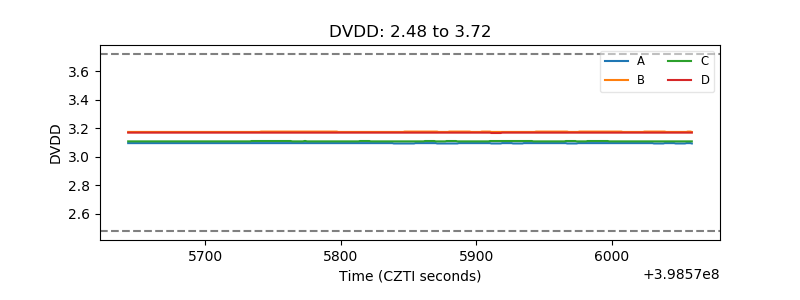

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

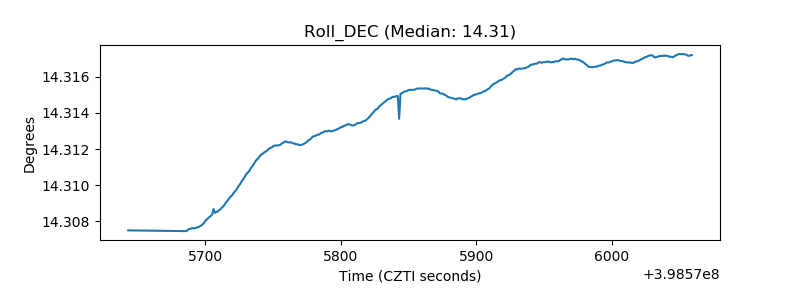

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
