| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_087T01_9000005292_37268cztM0_level2.evt | modeM0/AS1T04_087T01_9000005292_37268cztM0_level2_quad_clean.evt |
| Size (bytes) | 224,205,120 | 35,775,360 |
| Size | 213.8 MB | 34.1 MB |
| Events in quadrant A | 1,650,374 | 225,318 |
| Events in quadrant B | 1,498,641 | 227,852 |
| Events in quadrant C | 1,718,503 | 217,791 |
| Events in quadrant D | 1,729,873 | 211,175 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58 | 0 |
| B | 0 | 58 | 0 |
| C | 0 | 58 | 0 |
| D | 0 | 58 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6643 | 1 |
| B | 0 | 6186 | 1 |
| C | 0 | 6717 | 1 |
| D | 0 | 6974 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2810 | 67 | 2.384342% |
| B | 2810 | 17 | 0.604982% |
| C | 2810 | 101 | 3.594306% |
| D | 2810 | 96 | 3.416370% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4093 | 2811 | 33 | 33 | 0.81% | 1.17% |  |
| B | 4093 | 2811 | 4 | 4 | 0.10% | 0.14% |  |
| C | 4093 | 2811 | 104 | 104 | 2.54% | 3.70% |  |
| D | 4093 | 2811 | 69 | 69 | 1.69% | 2.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 137876 | 1993.38 | 331 | 324 | 69.0 |
| A | 10 | 83 | 137492 | 1987.82 | 331 | 324 | 69.0 |
| A | 15 | 222 | 53022 | 763.69 | 331 | 324 | 69.0 |
| B | 0 | 190 | 67825 | 1041.06 | 329 | 320 | 64.8 |
| B | 0 | 213 | 54860 | 841.11 | 329 | 320 | 64.8 |
| B | 0 | 230 | 36872 | 563.7 | 329 | 320 | 64.8 |
| C | 14 | 254 | 263123 | 3427.22 | 319 | 321 | 76.7 |
| C | 15 | 214 | 118550 | 1541.83 | 319 | 321 | 76.7 |
| C | 0 | 10 | 67116 | 871.08 | 319 | 321 | 76.7 |
| D | 2 | 249 | 280437 | 3542.69 | 320 | 311 | 79.1 |
| D | 2 | 153 | 97016 | 1223.0 | 320 | 311 | 79.1 |
| D | 13 | 249 | 31820 | 398.49 | 320 | 311 | 79.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

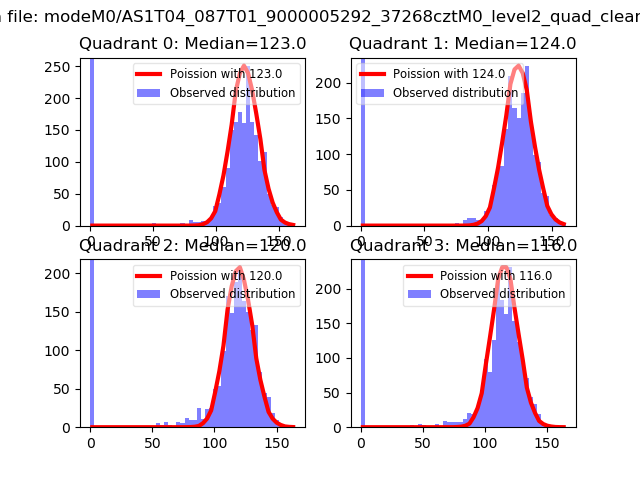

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

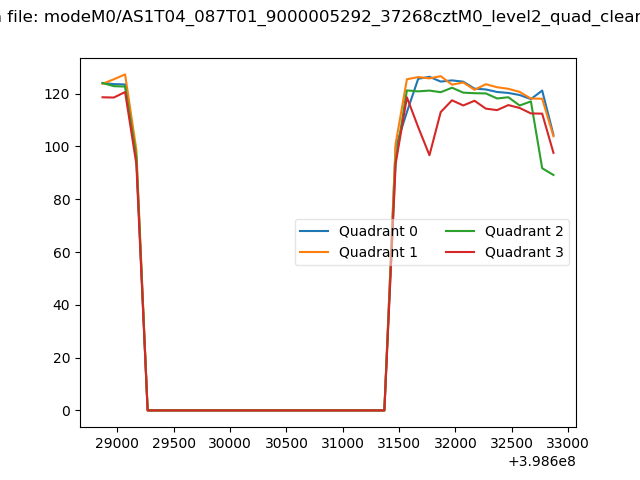

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

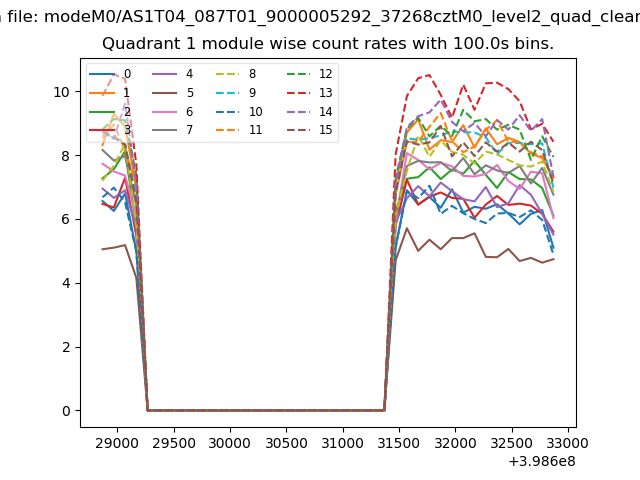

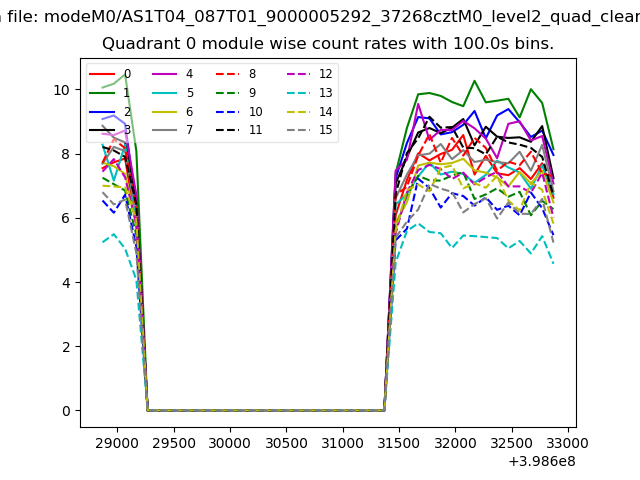

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

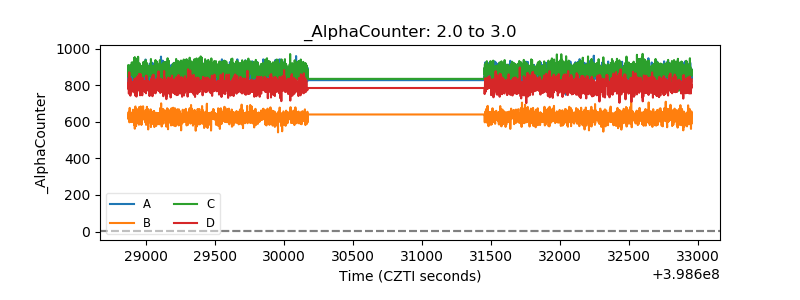

| Alpha Counter |  |

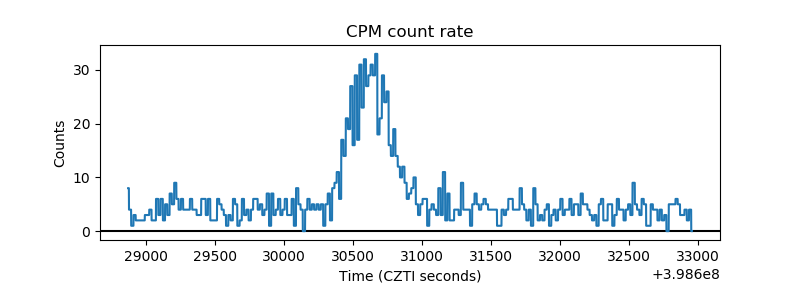

| _CPM_Rate |  |
| CZT Counter |  |

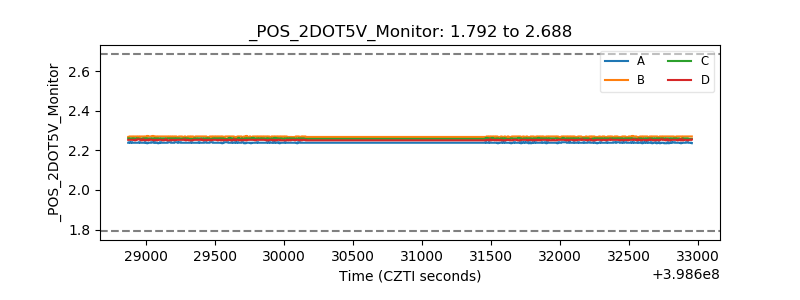

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
