| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T03_9000005296_37278cztM0_level2.evt | modeM0/AS1A10_103T03_9000005296_37278cztM0_level2_quad_clean.evt |
| Size (bytes) | 406,900,800 | 98,504,640 |
| Size | 388.1 MB | 93.9 MB |
| Events in quadrant A | 2,803,287 | 644,197 |
| Events in quadrant B | 3,216,144 | 648,074 |
| Events in quadrant C | 2,898,296 | 662,318 |
| Events in quadrant D | 3,016,367 | 628,725 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12096 | 3 |
| B | 0 | 13354 | 2 |
| C | 0 | 12251 | 2 |
| D | 0 | 12998 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5721 | 6 | 0.104877% |
| B | 5721 | 38 | 0.664220% |
| C | 5721 | 54 | 0.943891% |
| D | 5721 | 71 | 1.241042% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7364 | 5722 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7364 | 5722 | 16 | 16 | 0.22% | 0.28% |  |
| C | 7364 | 5722 | 44 | 44 | 0.60% | 0.77% |  |
| D | 7364 | 5722 | 64 | 64 | 0.87% | 1.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 280396 | 2192.08 | 632 | 620 | 127.6 |
| A | 9 | 143 | 39491 | 304.56 | 632 | 620 | 127.6 |
| A | 13 | 248 | 20938 | 159.19 | 632 | 620 | 127.6 |
| B | 0 | 213 | 285822 | 2390.59 | 626 | 611 | 119.3 |
| B | 0 | 190 | 200566 | 1675.99 | 626 | 611 | 119.3 |
| B | 5 | 200 | 169456 | 1415.23 | 626 | 611 | 119.3 |
| C | 15 | 214 | 243956 | 1707.29 | 615 | 620 | 142.5 |
| C | 0 | 10 | 140657 | 982.52 | 615 | 620 | 142.5 |
| C | 14 | 254 | 92482 | 644.52 | 615 | 620 | 142.5 |
| D | 13 | 249 | 160295 | 1076.6 | 615 | 597 | 148.3 |
| D | 12 | 218 | 156180 | 1048.85 | 615 | 597 | 148.3 |
| D | 10 | 199 | 146594 | 984.23 | 615 | 597 | 148.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

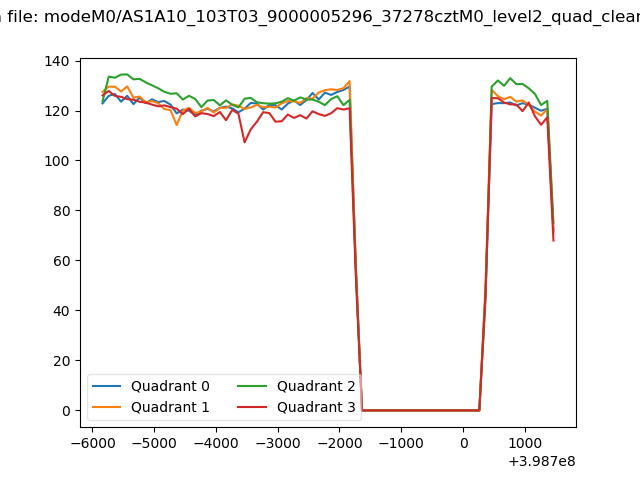

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

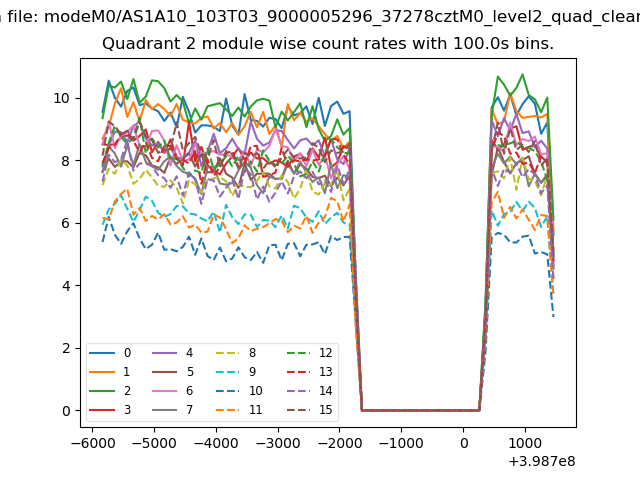

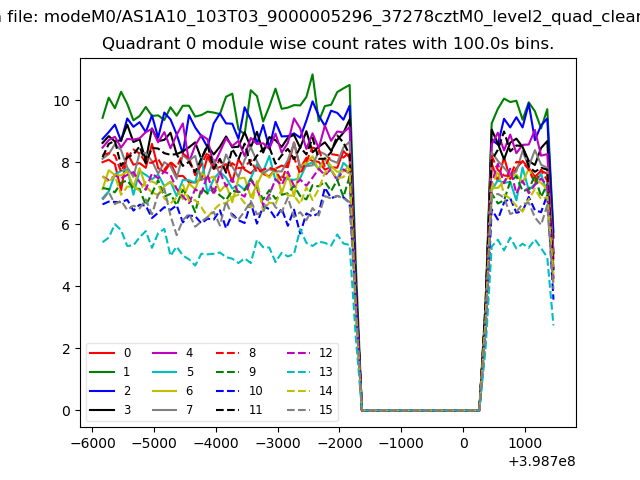

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

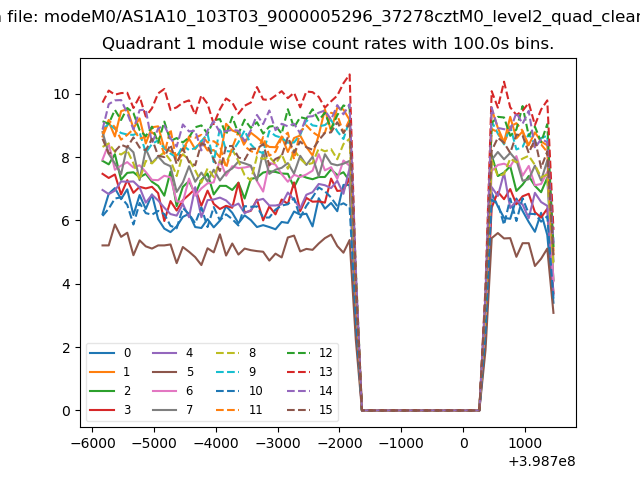

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

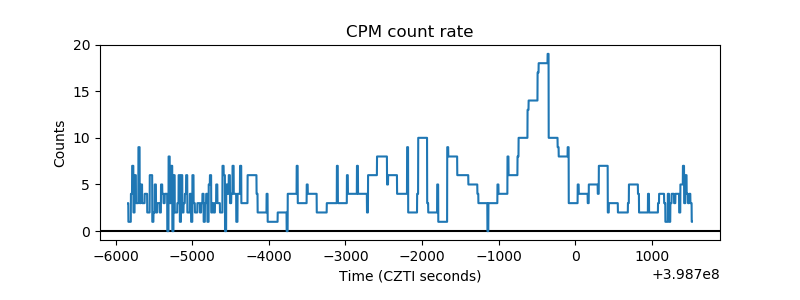

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

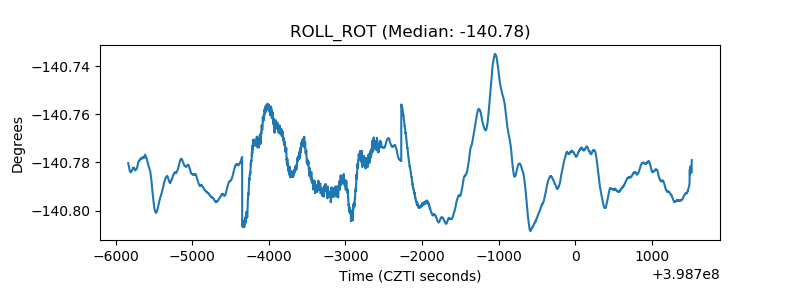

| _ROLL_ROT |  |

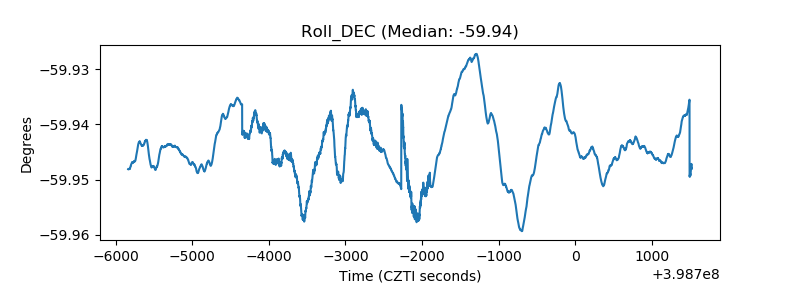

| _Roll_DEC |  |
| _Roll_RA |  |

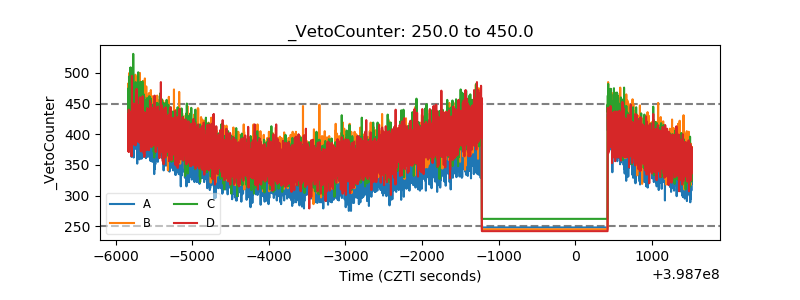

| Veto Counter |  |
