| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T07_9000005302_37303cztM0_level2.evt | modeM0/AS1A10_103T07_9000005302_37303cztM0_level2_quad_clean.evt |
| Size (bytes) | 309,738,240 | 50,120,640 |
| Size | 295.4 MB | 47.8 MB |
| Events in quadrant A | 2,107,919 | 307,328 |
| Events in quadrant B | 2,165,383 | 317,616 |
| Events in quadrant C | 2,184,791 | 319,086 |
| Events in quadrant D | 2,648,728 | 290,301 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8457 | 1 |
| B | 0 | 8723 | 1 |
| C | 0 | 8554 | 1 |
| D | 0 | 10392 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 80 | 0 |
| B | 0 | 80 | 0 |
| C | 0 | 80 | 0 |
| D | 0 | 80 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4011 | 5 | 0.124657% |
| B | 4011 | 32 | 0.797806% |
| C | 4011 | 23 | 0.573423% |
| D | 4011 | 200 | 4.986288% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4478 | 4478 | 1 | 1 | 0.02% | 0.02% |  |
| B | 4478 | 4478 | 13 | 13 | 0.29% | 0.29% |  |
| C | 4478 | 4478 | 20 | 20 | 0.45% | 0.45% |  |
| D | 4478 | 4478 | 157 | 157 | 3.51% | 3.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 165850 | 1667.23 | 495 | 486 | 99.2 |
| A | 9 | 143 | 10941 | 105.41 | 495 | 486 | 99.2 |
| A | 12 | 189 | 7301 | 68.71 | 495 | 486 | 99.2 |
| B | 12 | 18 | 65411 | 694.61 | 495 | 484 | 93.5 |
| B | 0 | 221 | 49013 | 519.18 | 495 | 484 | 93.5 |
| B | 0 | 213 | 46230 | 489.4 | 495 | 484 | 93.5 |
| C | 15 | 214 | 166167 | 1460.8 | 492 | 496 | 113.4 |
| C | 0 | 10 | 85954 | 753.52 | 492 | 496 | 113.4 |
| C | 14 | 254 | 10032 | 84.08 | 492 | 496 | 113.4 |
| D | 2 | 249 | 574211 | 4964.08 | 480 | 467 | 115.6 |
| D | 13 | 249 | 68043 | 584.67 | 480 | 467 | 115.6 |
| D | 12 | 227 | 60988 | 523.63 | 480 | 467 | 115.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

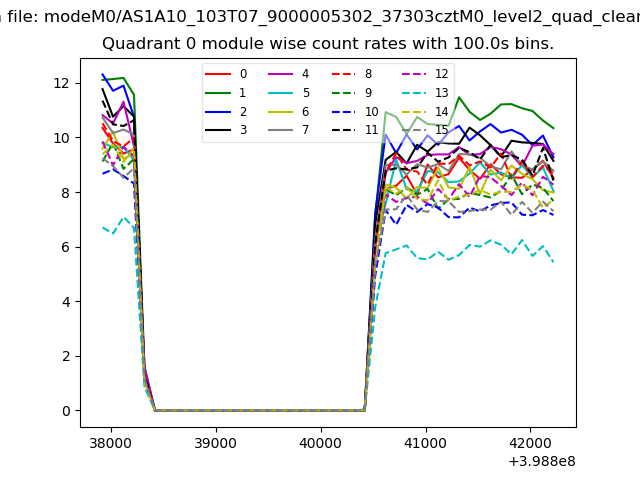

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

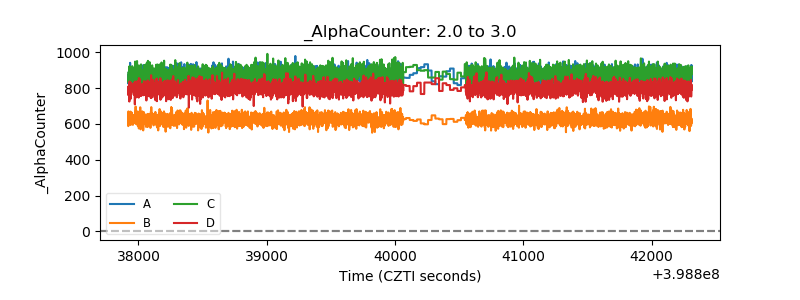

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

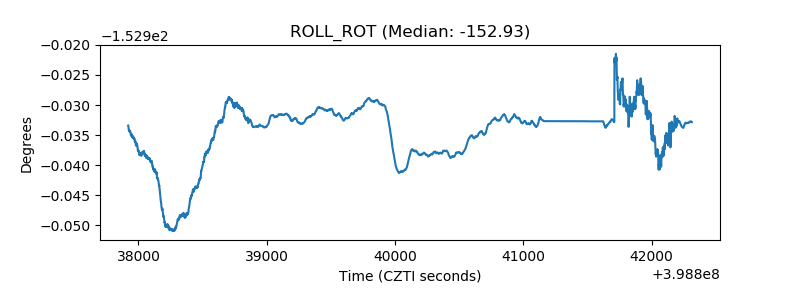

| _ROLL_ROT |  |

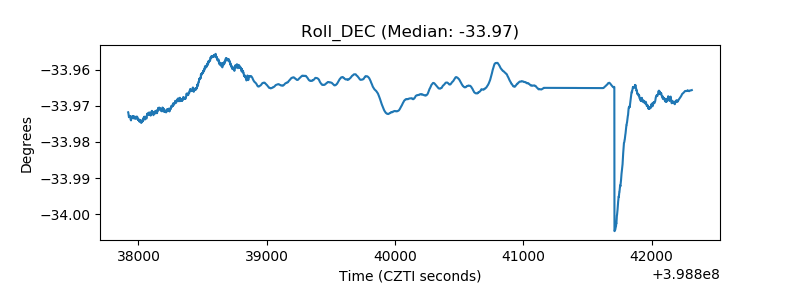

| _Roll_DEC |  |

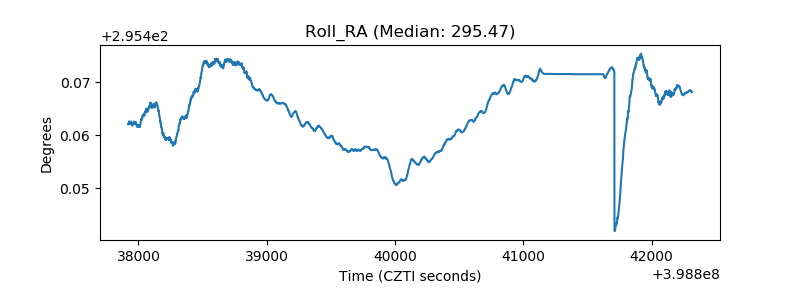

| _Roll_RA |  |
| Veto Counter |  |
