| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_002T01_9000005322_37418cztM0_level2.evt | modeM0/AS1A09_002T01_9000005322_37418cztM0_level2_quad_clean.evt |
| Size (bytes) | 390,352,320 | 63,270,720 |
| Size | 372.3 MB | 60.3 MB |
| Events in quadrant A | 2,802,745 | 390,718 |
| Events in quadrant B | 2,796,412 | 400,414 |
| Events in quadrant C | 3,015,725 | 392,537 |
| Events in quadrant D | 2,861,669 | 376,018 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11357 | 3 |
| B | 0 | 11381 | 2 |
| C | 0 | 11788 | 2 |
| D | 0 | 11701 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5078 | 21 | 0.413549% |
| B | 5078 | 57 | 1.122489% |
| C | 5078 | 94 | 1.851122% |
| D | 5078 | 38 | 0.748326% |

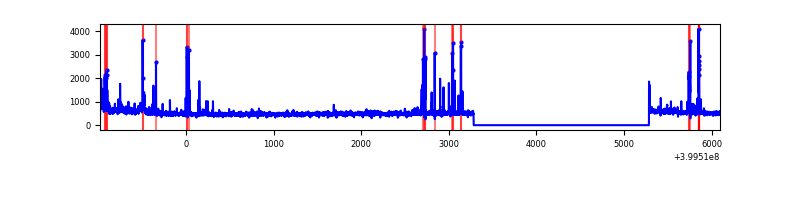

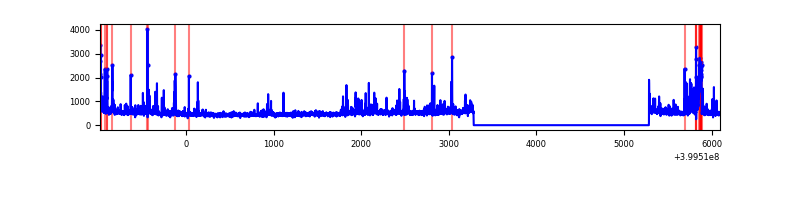

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7081 | 5079 | 14 | 14 | 0.20% | 0.28% |  |
| B | 7081 | 5079 | 30 | 30 | 0.42% | 0.59% |  |
| C | 7081 | 5079 | 86 | 86 | 1.21% | 1.69% |  |
| D | 7081 | 5079 | 32 | 32 | 0.45% | 0.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 264500 | 2153.08 | 616 | 606 | 122.6 |
| A | 15 | 222 | 58624 | 473.36 | 616 | 606 | 122.6 |
| A | 13 | 248 | 31098 | 248.78 | 616 | 606 | 122.6 |
| B | 5 | 172 | 159249 | 1375.05 | 616 | 603 | 115.4 |
| B | 5 | 255 | 102577 | 883.85 | 616 | 603 | 115.4 |
| B | 0 | 155 | 43701 | 373.55 | 616 | 603 | 115.4 |
| C | 14 | 254 | 293139 | 2114.47 | 604 | 610 | 138.3 |
| C | 15 | 214 | 215435 | 1552.81 | 604 | 610 | 138.3 |
| C | 0 | 10 | 135022 | 971.56 | 604 | 610 | 138.3 |
| D | 2 | 249 | 212487 | 1486.28 | 602 | 587 | 142.6 |
| D | 12 | 235 | 174315 | 1218.54 | 602 | 587 | 142.6 |
| D | 2 | 153 | 44976 | 311.35 | 602 | 587 | 142.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

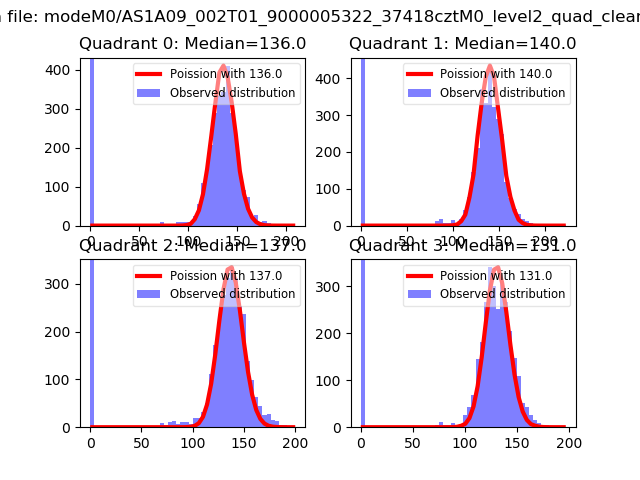

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

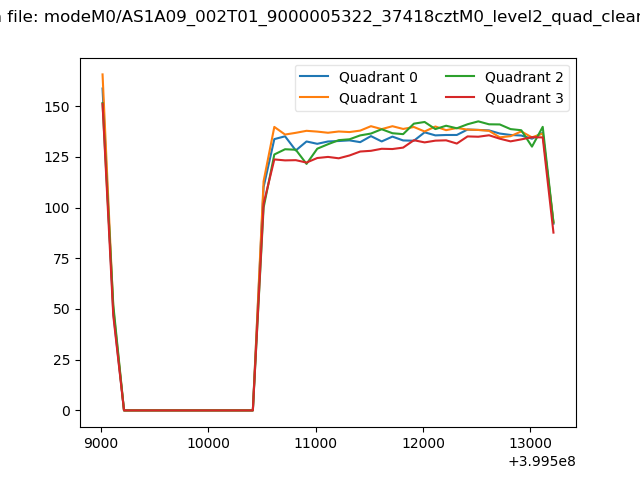

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

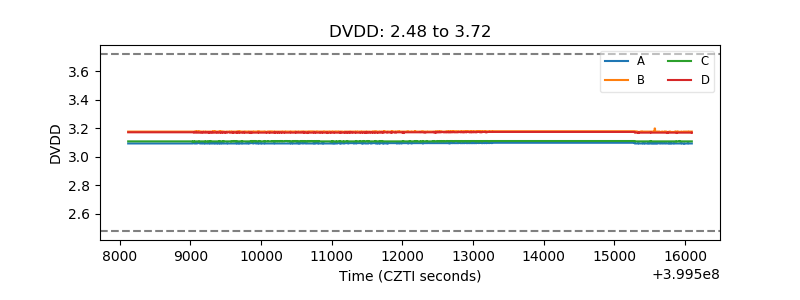

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

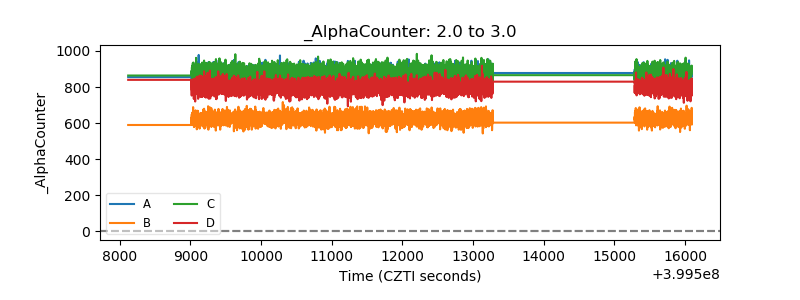

| Alpha Counter |  |
| _CPM_Rate |  |

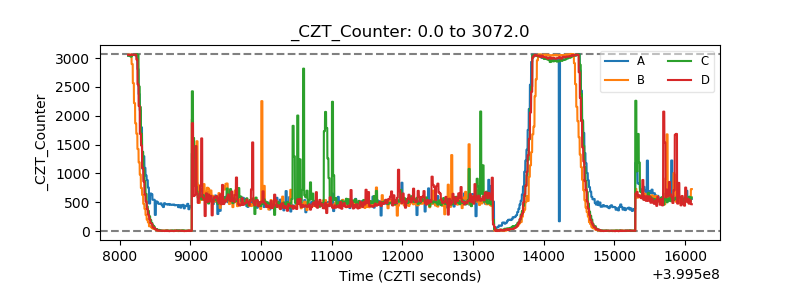

| CZT Counter |  |
