| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_002T01_9000005322_37437cztM0_level2.evt | modeM0/AS1A09_002T01_9000005322_37437cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,286,400 | 94,403,520 |
| Size | 410.4 MB | 90.0 MB |
| Events in quadrant A | 2,699,477 | 624,157 |
| Events in quadrant B | 3,976,886 | 614,309 |
| Events in quadrant C | 2,860,311 | 641,480 |
| Events in quadrant D | 3,131,997 | 605,266 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11236 | 3 |
| B | 0 | 15345 | 2 |
| C | 0 | 11676 | 2 |
| D | 0 | 12885 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5332 | 13 | 0.243811% |
| B | 5332 | 323 | 6.057764% |
| C | 5332 | 44 | 0.825206% |
| D | 5332 | 56 | 1.050263% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7094 | 5333 | 4 | 4 | 0.06% | 0.08% |  |
| B | 7094 | 5333 | 252 | 252 | 3.55% | 4.73% |  |
| C | 7094 | 5333 | 36 | 36 | 0.51% | 0.68% |  |
| D | 7094 | 5333 | 52 | 52 | 0.73% | 0.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 274968 | 2258.09 | 604 | 593 | 121.5 |
| A | 12 | 189 | 32200 | 260.12 | 604 | 593 | 121.5 |
| A | 13 | 6 | 25353 | 203.77 | 604 | 593 | 121.5 |
| B | 15 | 35 | 650645 | 5797.51 | 586 | 568 | 112.1 |
| B | 4 | 171 | 474604 | 4227.54 | 586 | 568 | 112.1 |
| B | 0 | 189 | 361549 | 3219.3 | 586 | 568 | 112.1 |
| C | 15 | 214 | 243977 | 1784.72 | 592 | 598 | 136.4 |
| C | 0 | 10 | 140919 | 1028.99 | 592 | 598 | 136.4 |
| C | 14 | 254 | 134349 | 980.81 | 592 | 598 | 136.4 |
| D | 12 | 227 | 382437 | 2672.8 | 592 | 577 | 142.9 |
| D | 2 | 249 | 181761 | 1268.18 | 592 | 577 | 142.9 |
| D | 13 | 249 | 45521 | 314.58 | 592 | 577 | 142.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

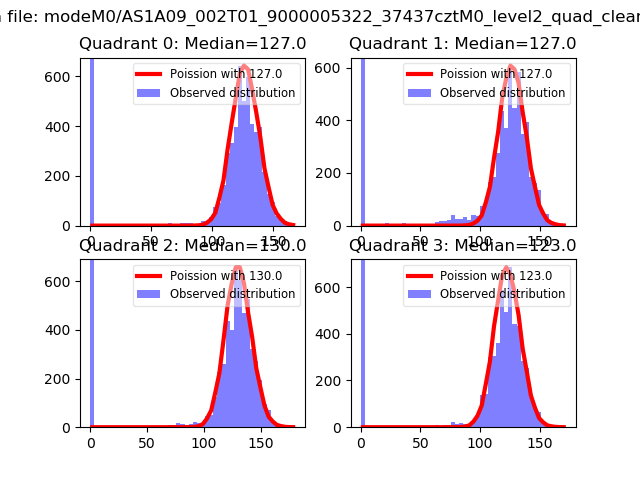

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

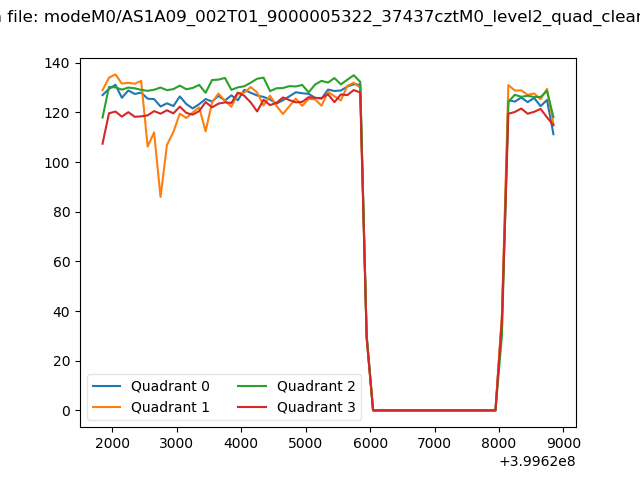

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

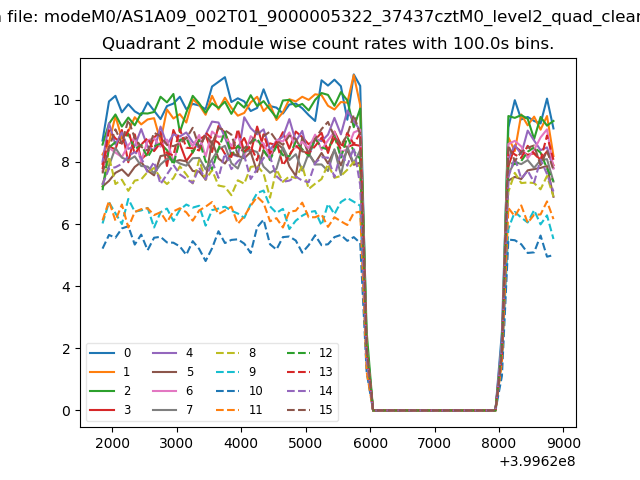

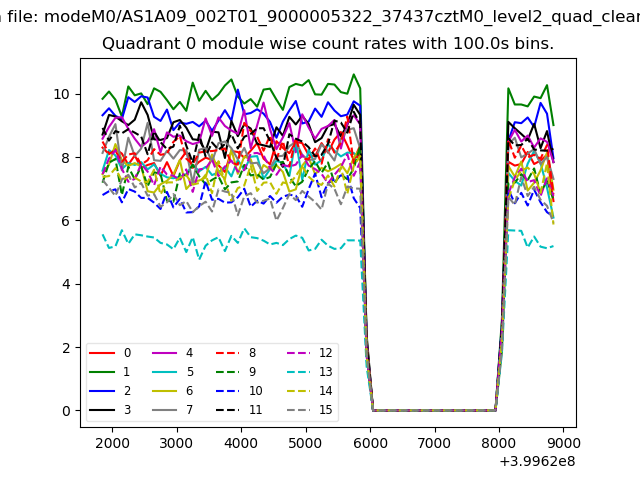

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

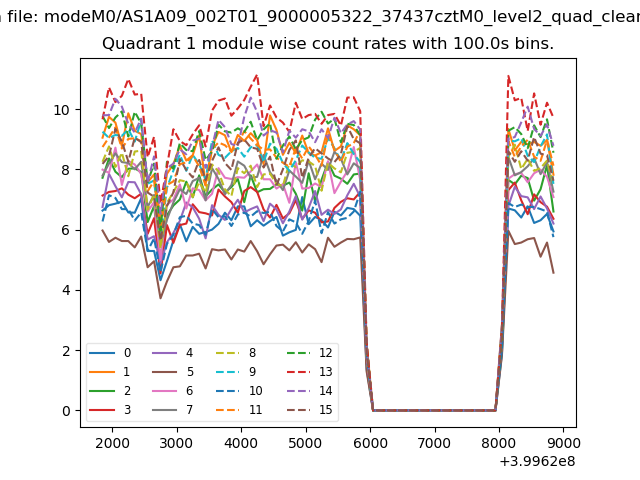

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

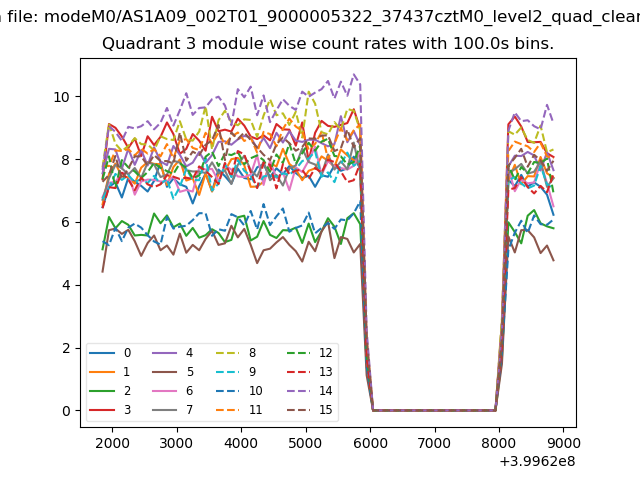

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

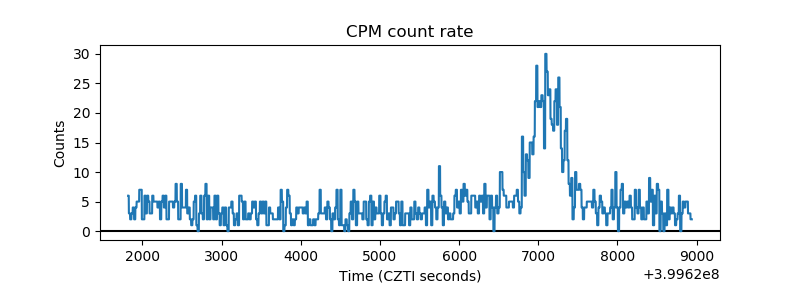

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

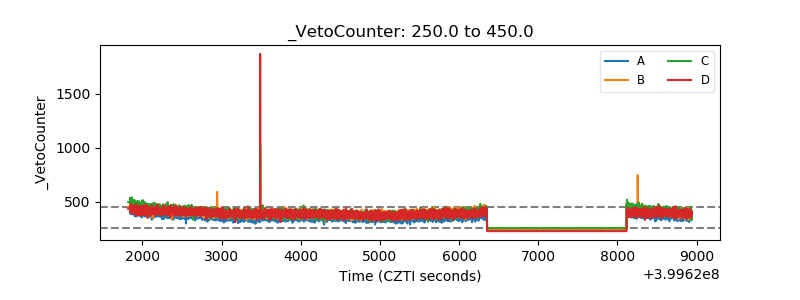

| Veto Counter |  |
