| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_027T01_9000005324_37478cztM0_level2.evt | modeM0/AS1A11_027T01_9000005324_37478cztM0_level2_quad_clean.evt |
| Size (bytes) | 199,281,600 | 50,057,280 |
| Size | 190.0 MB | 47.7 MB |
| Events in quadrant A | 1,302,672 | 338,057 |
| Events in quadrant B | 1,274,668 | 354,252 |
| Events in quadrant C | 1,313,968 | 341,109 |
| Events in quadrant D | 1,975,358 | 305,931 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5428 | 1 |
| B | 0 | 5319 | 1 |
| C | 0 | 5280 | 1 |
| D | 0 | 7497 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2455 | 6 | 0.244399% |
| B | 2455 | 21 | 0.855397% |
| C | 2455 | 31 | 1.262729% |
| D | 2455 | 206 | 8.391039% |

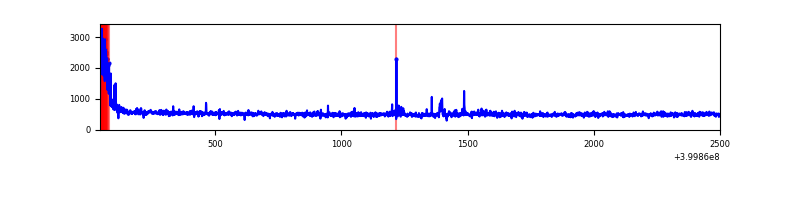

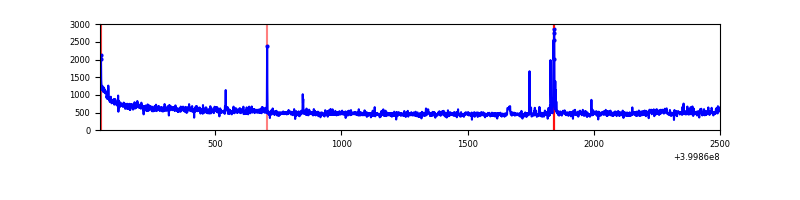

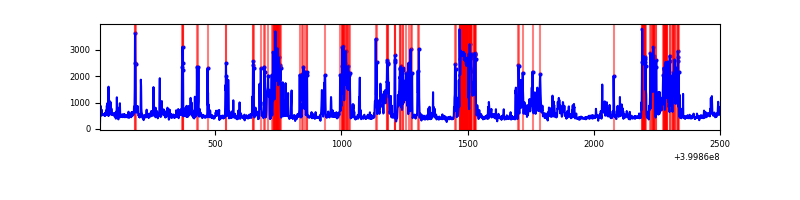

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2455 | 2455 | 8 | 8 | 0.33% | 0.33% |  |
| B | 2455 | 2455 | 18 | 18 | 0.73% | 0.73% |  |
| C | 2455 | 2455 | 25 | 25 | 1.02% | 1.02% |  |
| D | 2455 | 2455 | 194 | 194 | 7.90% | 7.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 128567 | 2251.43 | 279 | 274 | 57.0 |
| A | 15 | 222 | 54185 | 946.09 | 279 | 274 | 57.0 |
| A | 13 | 248 | 21394 | 370.64 | 279 | 274 | 57.0 |
| B | 5 | 172 | 54996 | 1014.01 | 285 | 278 | 54.0 |
| B | 5 | 173 | 34708 | 638.04 | 285 | 278 | 54.0 |
| B | 0 | 190 | 17070 | 311.18 | 285 | 278 | 54.0 |
| C | 15 | 214 | 103406 | 1574.29 | 283 | 286 | 65.5 |
| C | 0 | 10 | 77450 | 1178.03 | 283 | 286 | 65.5 |
| C | 0 | 207 | 14838 | 222.16 | 283 | 286 | 65.5 |
| D | 13 | 249 | 823215 | 12696.27 | 265 | 258 | 64.8 |
| D | 2 | 250 | 48447 | 743.44 | 265 | 258 | 64.8 |
| D | 2 | 153 | 29499 | 451.12 | 265 | 258 | 64.8 |

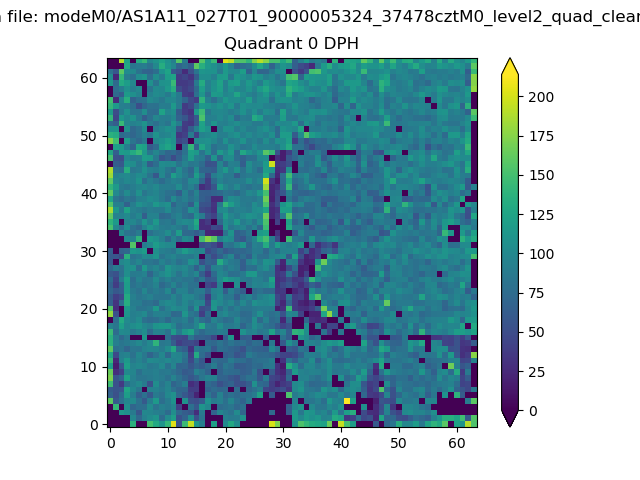

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

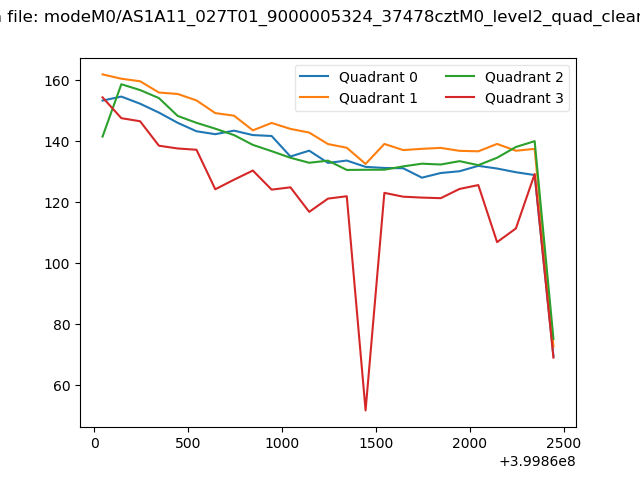

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

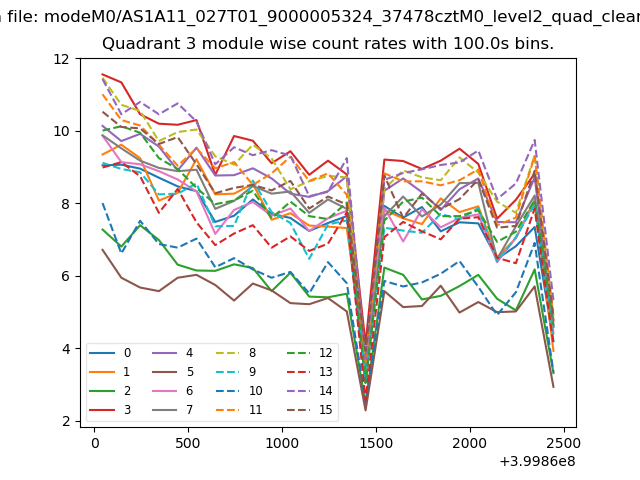

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

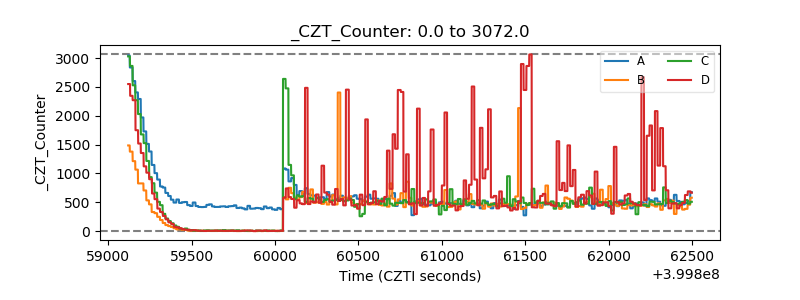

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

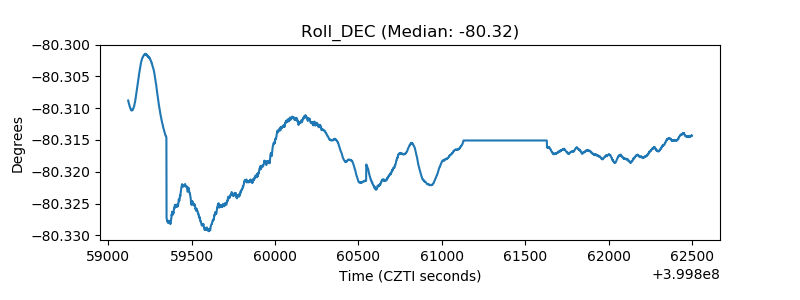

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
