| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T11_9000005326_37479cztM0_level2.evt | modeM0/AS1C07_001T11_9000005326_37479cztM0_level2_quad_clean.evt |
| Size (bytes) | 415,218,240 | 97,407,360 |
| Size | 396.0 MB | 92.9 MB |
| Events in quadrant A | 2,628,959 | 656,447 |
| Events in quadrant B | 2,749,842 | 668,497 |
| Events in quadrant C | 2,815,796 | 659,814 |
| Events in quadrant D | 4,032,189 | 606,342 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10996 | 3 |
| B | 0 | 11556 | 2 |
| C | 0 | 11562 | 2 |
| D | 0 | 15574 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5115 | 10 | 0.195503% |
| B | 5115 | 83 | 1.622678% |
| C | 5115 | 80 | 1.564027% |
| D | 5115 | 382 | 7.468231% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

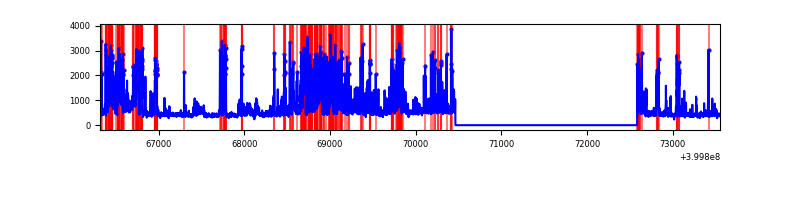

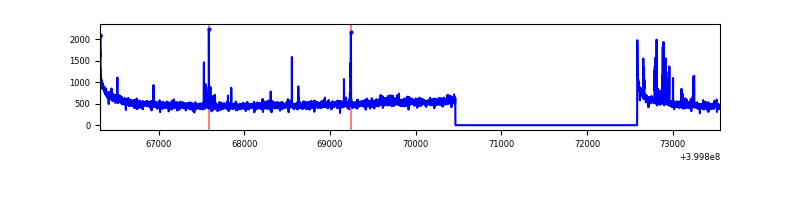

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7237 | 5116 | 4 | 4 | 0.06% | 0.08% |  |
| B | 7237 | 5116 | 62 | 62 | 0.86% | 1.21% |  |
| C | 7237 | 5116 | 63 | 63 | 0.87% | 1.23% |  |
| D | 7237 | 5116 | 374 | 374 | 5.17% | 7.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 278050 | 2391.68 | 576 | 566 | 116.0 |
| A | 13 | 248 | 33224 | 281.48 | 576 | 566 | 116.0 |
| A | 15 | 222 | 28123 | 237.52 | 576 | 566 | 116.0 |
| B | 5 | 255 | 205442 | 1899.0 | 571 | 556 | 107.9 |
| B | 4 | 232 | 80674 | 742.58 | 571 | 556 | 107.9 |
| B | 5 | 172 | 75318 | 692.94 | 571 | 556 | 107.9 |
| C | 14 | 254 | 286082 | 2206.56 | 557 | 563 | 129.4 |
| C | 15 | 214 | 219580 | 1692.61 | 557 | 563 | 129.4 |
| C | 0 | 10 | 70221 | 538.33 | 557 | 563 | 129.4 |
| D | 13 | 249 | 1037064 | 7964.37 | 541 | 526 | 130.1 |
| D | 2 | 249 | 345705 | 2652.23 | 541 | 526 | 130.1 |
| D | 13 | 171 | 179304 | 1373.66 | 541 | 526 | 130.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

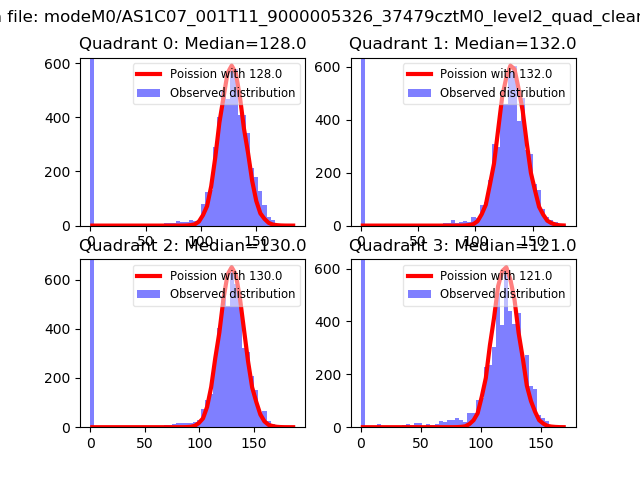

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

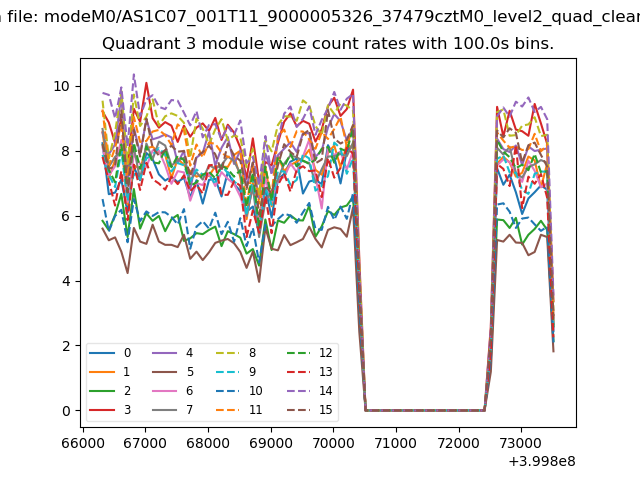

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

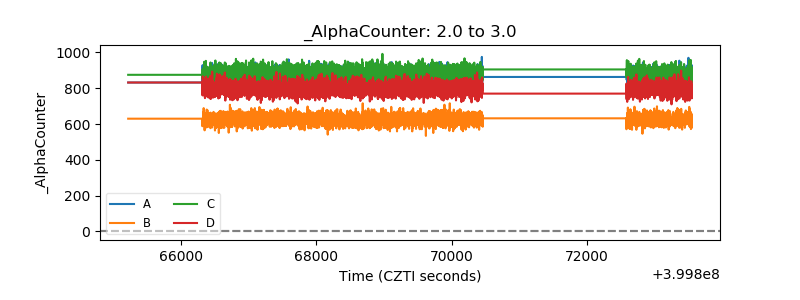

| Alpha Counter |  |

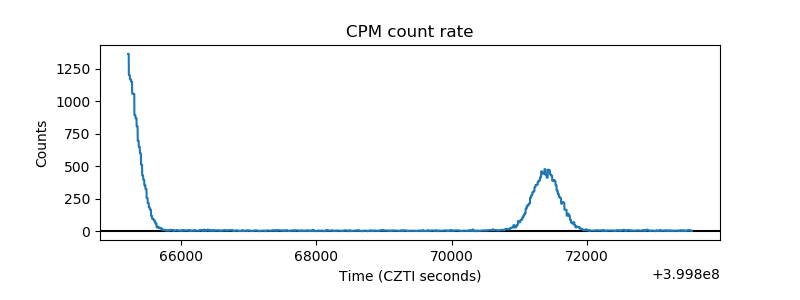

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

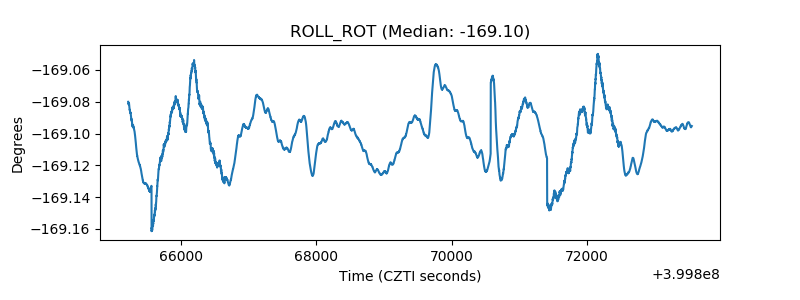

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

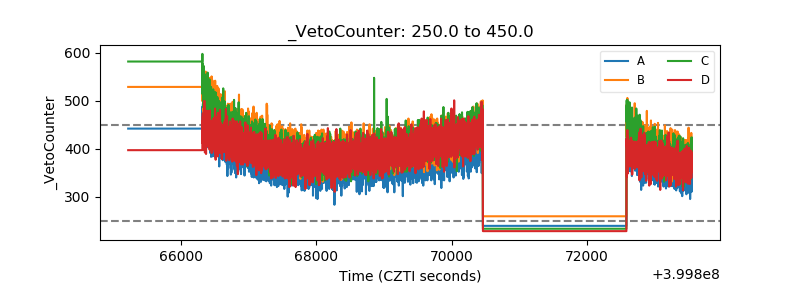

| Veto Counter |  |
