| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T11_9000005326_37480cztM0_level2.evt | modeM0/AS1C07_001T11_9000005326_37480cztM0_level2_quad_clean.evt |
| Size (bytes) | 382,452,480 | 94,847,040 |
| Size | 364.7 MB | 90.5 MB |
| Events in quadrant A | 2,738,334 | 632,610 |
| Events in quadrant B | 2,864,300 | 641,428 |
| Events in quadrant C | 2,651,979 | 635,292 |
| Events in quadrant D | 2,979,411 | 604,159 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11319 | 3 |
| B | 0 | 11987 | 2 |
| C | 0 | 11094 | 2 |
| D | 0 | 12457 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5125 | 28 | 0.546341% |
| B | 5125 | 117 | 2.282927% |
| C | 5125 | 45 | 0.878049% |
| D | 5125 | 119 | 2.321951% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7008 | 5126 | 23 | 23 | 0.33% | 0.45% |  |
| B | 7008 | 5126 | 95 | 95 | 1.36% | 1.85% |  |
| C | 7008 | 5126 | 41 | 41 | 0.59% | 0.80% |  |
| D | 7008 | 5126 | 114 | 114 | 1.63% | 2.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 277700 | 2409.97 | 566 | 555 | 115.0 |
| A | 13 | 248 | 191077 | 1656.72 | 566 | 555 | 115.0 |
| A | 13 | 6 | 18056 | 152.18 | 566 | 555 | 115.0 |
| B | 5 | 172 | 344571 | 3210.68 | 562 | 548 | 107.1 |
| B | 5 | 255 | 144975 | 1347.9 | 562 | 548 | 107.1 |
| B | 0 | 229 | 64513 | 596.97 | 562 | 548 | 107.1 |
| C | 15 | 214 | 219183 | 1716.16 | 549 | 553 | 127.4 |
| C | 14 | 254 | 130216 | 1017.8 | 549 | 553 | 127.4 |
| C | 15 | 159 | 86735 | 676.5 | 549 | 553 | 127.4 |
| D | 13 | 249 | 334464 | 2508.86 | 548 | 531 | 133.1 |
| D | 2 | 250 | 188293 | 1410.67 | 548 | 531 | 133.1 |
| D | 2 | 249 | 106079 | 792.99 | 548 | 531 | 133.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

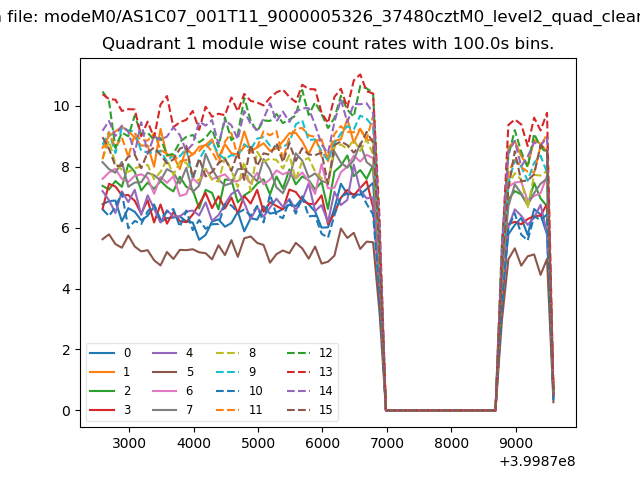

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

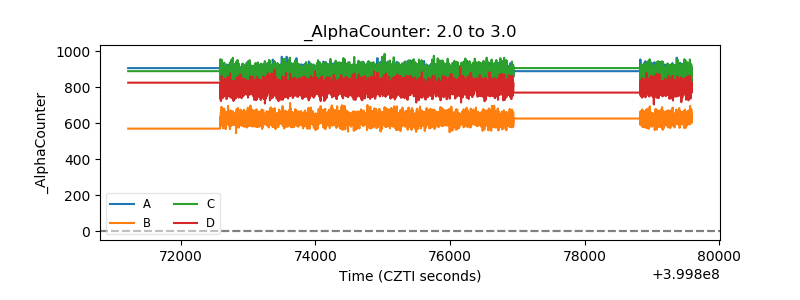

| Alpha Counter |  |

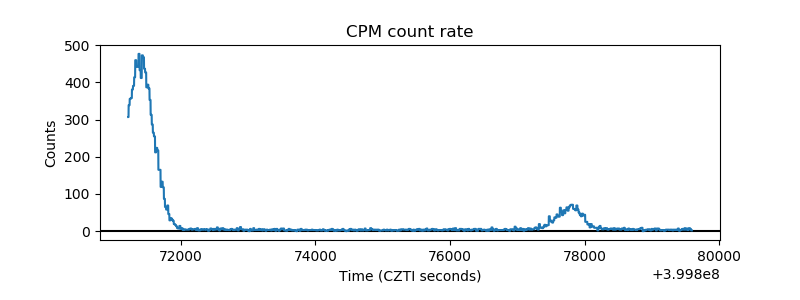

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

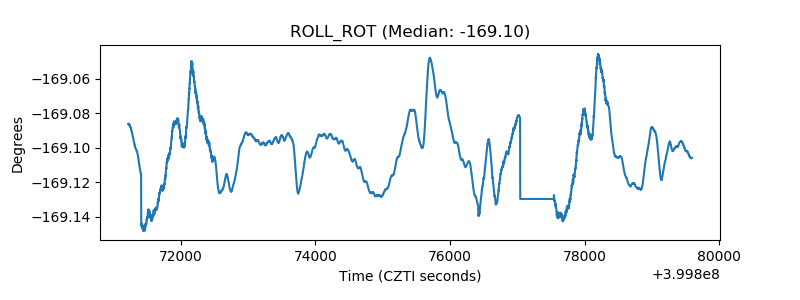

| _ROLL_ROT |  |

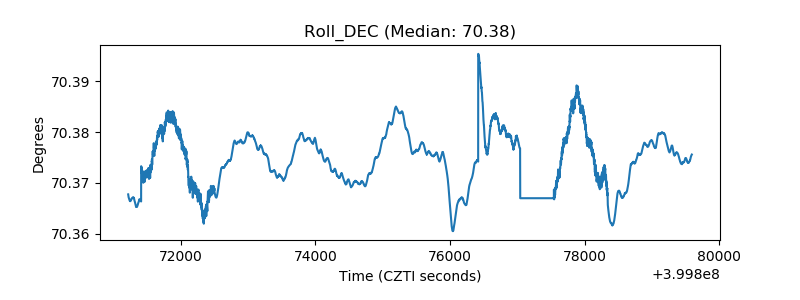

| _Roll_DEC |  |

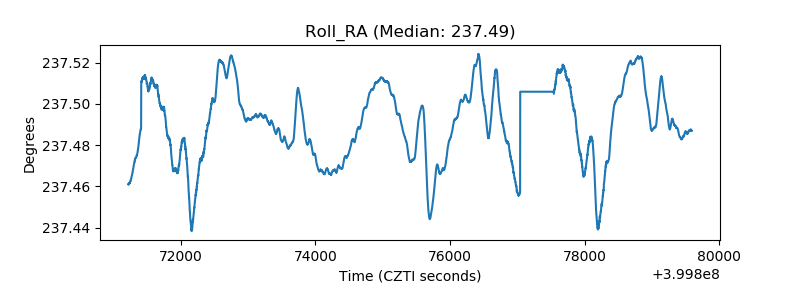

| _Roll_RA |  |
| Veto Counter |  |
