| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T11_9000005326_37487cztM0_level2.evt | modeM0/AS1C07_001T11_9000005326_37487cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,813,440 | 95,955,840 |
| Size | 445.2 MB | 91.5 MB |
| Events in quadrant A | 3,326,308 | 648,092 |
| Events in quadrant B | 3,373,351 | 643,193 |
| Events in quadrant C | 2,825,080 | 641,643 |
| Events in quadrant D | 4,251,594 | 600,097 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13509 | 3 |
| B | 0 | 13708 | 2 |
| C | 0 | 11803 | 2 |
| D | 0 | 16305 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5316 | 36 | 0.677201% |
| B | 5316 | 231 | 4.345372% |
| C | 5316 | 111 | 2.088036% |
| D | 5316 | 501 | 9.424379% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6989 | 5317 | 18 | 18 | 0.26% | 0.34% |  |
| B | 6989 | 5317 | 193 | 193 | 2.76% | 3.63% |  |
| C | 6989 | 5317 | 96 | 96 | 1.37% | 1.81% |  |
| D | 6989 | 5317 | 475 | 475 | 6.80% | 8.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 685041 | 5763.38 | 587 | 573 | 118.8 |
| A | 10 | 83 | 279881 | 2351.84 | 587 | 573 | 118.8 |
| A | 13 | 6 | 55516 | 462.63 | 587 | 573 | 118.8 |
| B | 5 | 255 | 554241 | 5043.63 | 577 | 560 | 109.8 |
| B | 15 | 35 | 201617 | 1831.48 | 577 | 560 | 109.8 |
| B | 5 | 172 | 141630 | 1285.05 | 577 | 560 | 109.8 |
| C | 14 | 254 | 245753 | 1820.45 | 574 | 576 | 134.7 |
| C | 15 | 214 | 226054 | 1674.18 | 574 | 576 | 134.7 |
| C | 0 | 10 | 88428 | 652.3 | 574 | 576 | 134.7 |
| D | 13 | 249 | 970995 | 7217.82 | 556 | 540 | 134.5 |
| D | 2 | 249 | 349296 | 2593.89 | 556 | 540 | 134.5 |
| D | 12 | 227 | 229205 | 1700.71 | 556 | 540 | 134.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

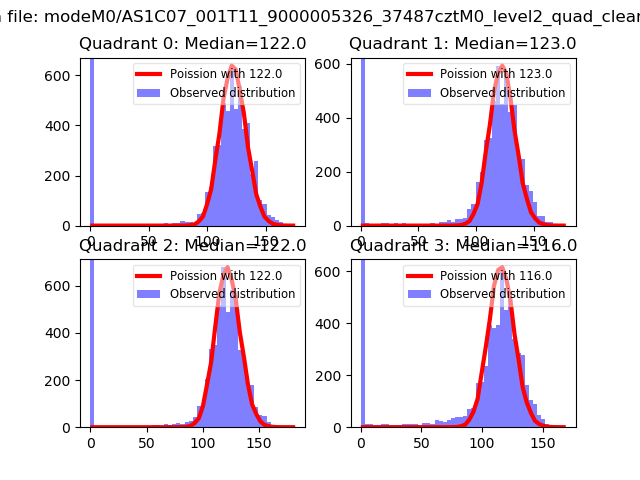

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

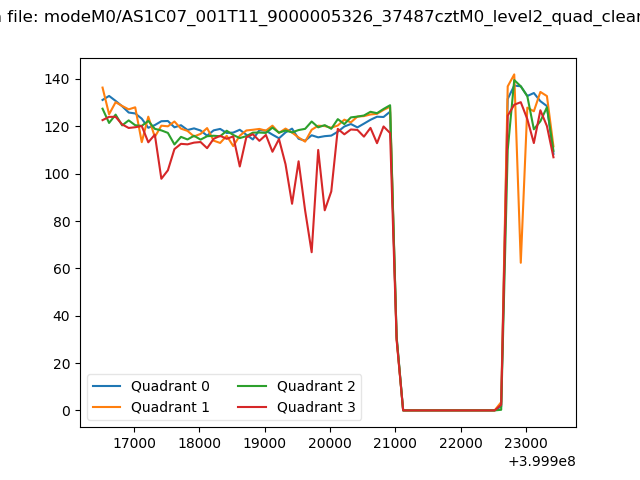

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

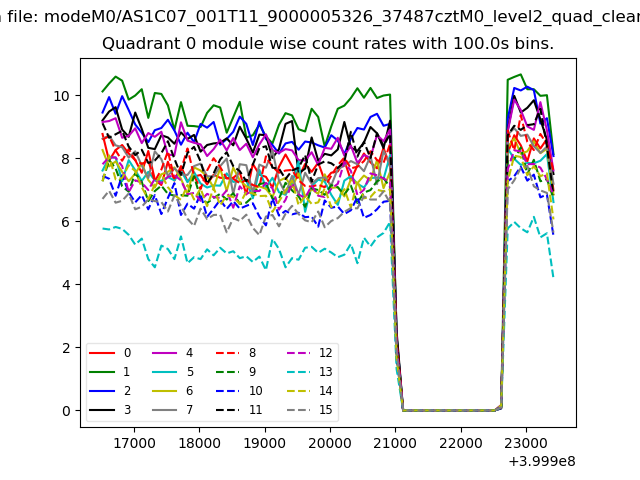

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

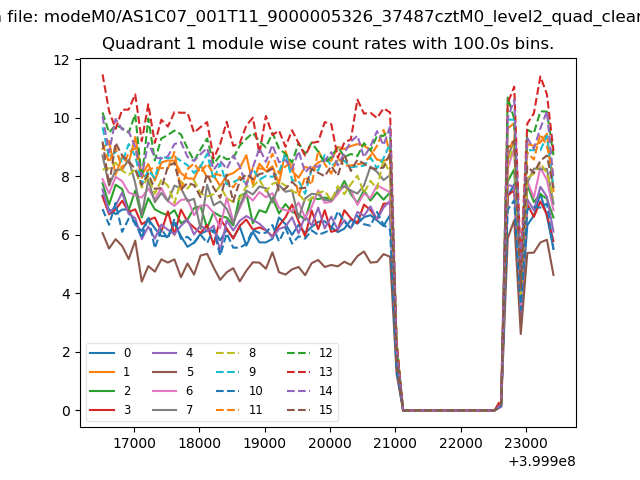

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

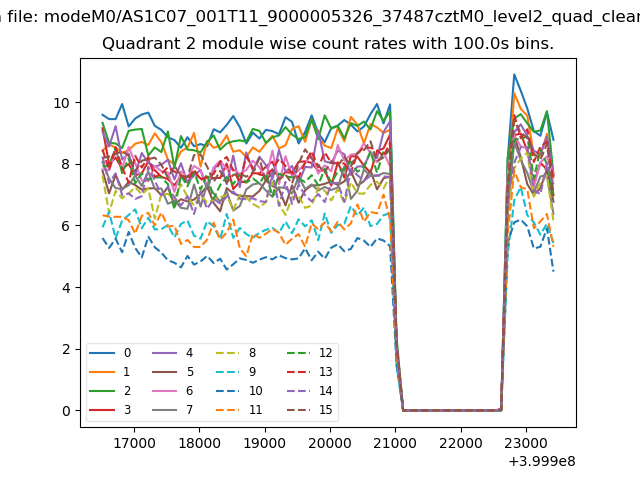

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

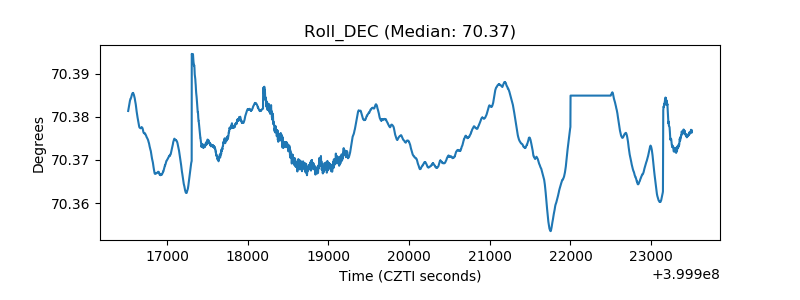

| _Roll_DEC |  |
| _Roll_RA |  |

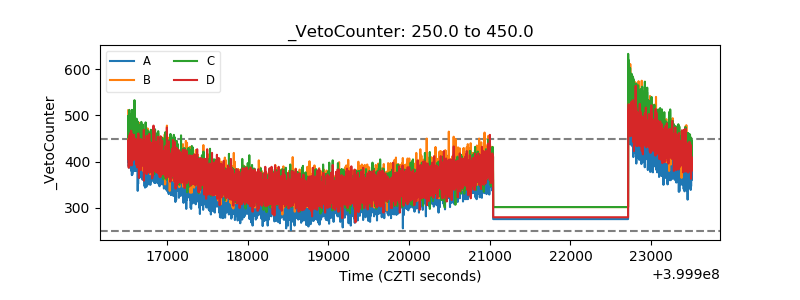

| Veto Counter |  |
