| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T11_9000005326_37494cztM0_level2.evt | modeM0/AS1C07_001T11_9000005326_37494cztM0_level2_quad_clean.evt |
| Size (bytes) | 337,147,200 | 75,081,600 |
| Size | 321.5 MB | 71.6 MB |
| Events in quadrant A | 2,133,399 | 502,940 |
| Events in quadrant B | 2,457,892 | 511,785 |
| Events in quadrant C | 2,482,900 | 496,044 |
| Events in quadrant D | 2,859,334 | 476,244 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8886 | 1 |
| B | 0 | 10119 | 1 |
| C | 0 | 9943 | 1 |
| D | 0 | 11344 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 82 | 0 |
| B | 0 | 82 | 0 |
| C | 0 | 82 | 0 |
| D | 0 | 82 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4062 | 30 | 0.738552% |
| B | 4062 | 127 | 3.126539% |
| C | 4062 | 154 | 3.791236% |
| D | 4062 | 166 | 4.086657% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4062 | 4062 | 18 | 18 | 0.44% | 0.44% |  |
| B | 4062 | 4062 | 100 | 100 | 2.46% | 2.46% |  |
| C | 4062 | 4062 | 151 | 151 | 3.72% | 3.72% |  |
| D | 4062 | 4062 | 148 | 148 | 3.64% | 3.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 183107 | 2010.13 | 449 | 441 | 90.9 |
| A | 13 | 248 | 144183 | 1581.79 | 449 | 441 | 90.9 |
| A | 12 | 189 | 30596 | 331.84 | 449 | 441 | 90.9 |
| B | 5 | 172 | 315178 | 3737.97 | 443 | 431 | 84.2 |
| B | 15 | 35 | 208933 | 2476.19 | 443 | 431 | 84.2 |
| B | 0 | 229 | 103091 | 1219.2 | 443 | 431 | 84.2 |
| C | 0 | 207 | 255870 | 2577.52 | 427 | 428 | 99.1 |
| C | 14 | 128 | 190185 | 1914.73 | 427 | 428 | 99.1 |
| C | 15 | 214 | 169540 | 1706.42 | 427 | 428 | 99.1 |
| D | 13 | 249 | 439811 | 4235.16 | 428 | 415 | 103.7 |
| D | 13 | 171 | 428276 | 4123.98 | 428 | 415 | 103.7 |
| D | 2 | 249 | 156609 | 1505.49 | 428 | 415 | 103.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

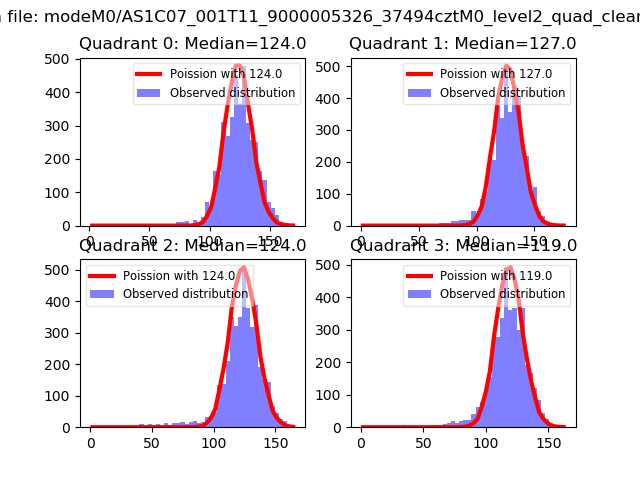

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

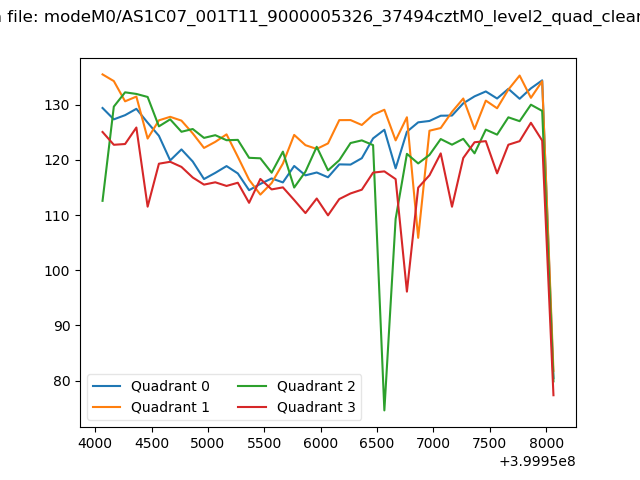

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

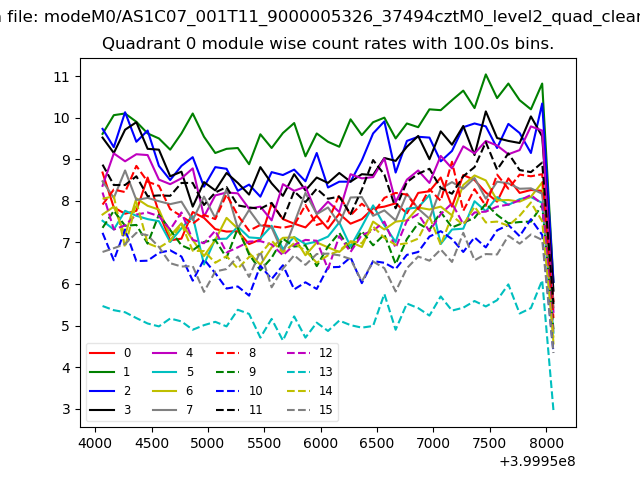

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

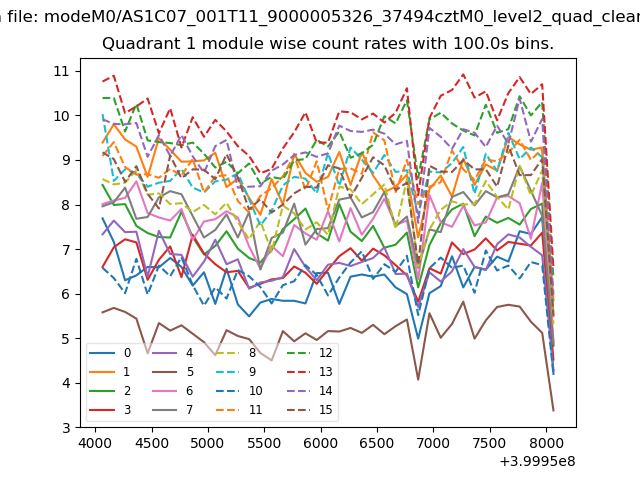

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

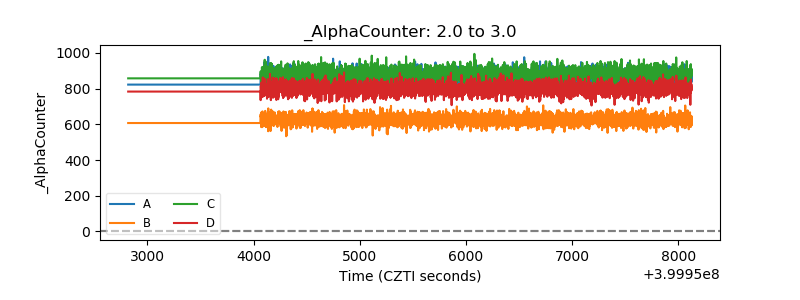

| Alpha Counter |  |

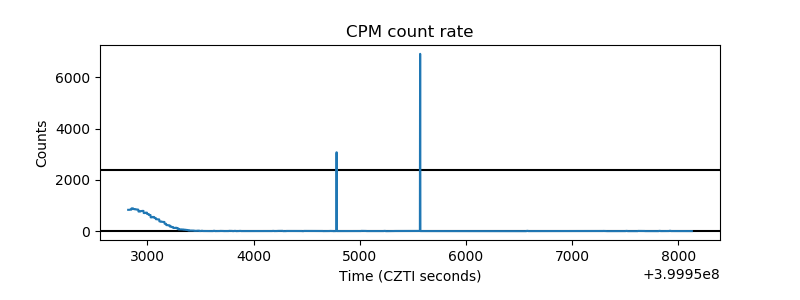

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

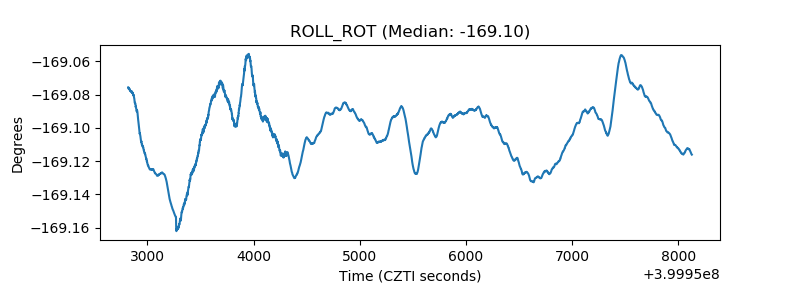

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
