| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T11_9000005336_37565cztM0_level2.evt | modeM0/AS1C07_001T11_9000005336_37565cztM0_level2_quad_clean.evt |
| Size (bytes) | 371,062,080 | 93,994,560 |
| Size | 353.9 MB | 89.6 MB |
| Events in quadrant A | 2,473,882 | 622,238 |
| Events in quadrant B | 2,711,185 | 642,552 |
| Events in quadrant C | 2,552,936 | 641,959 |
| Events in quadrant D | 3,171,621 | 601,644 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10455 | 3 |
| B | 0 | 11193 | 2 |
| C | 0 | 10479 | 2 |
| D | 0 | 12753 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 37 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4821 | 19 | 0.394109% |
| B | 4821 | 66 | 1.369011% |
| C | 4821 | 47 | 0.974901% |
| D | 4821 | 173 | 3.588467% |

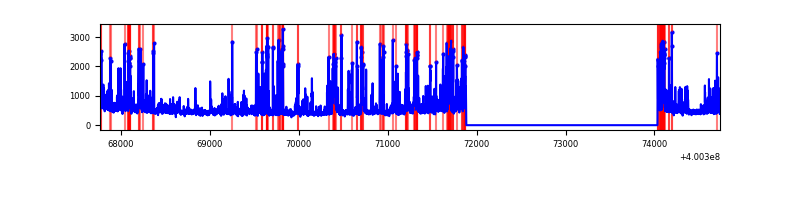

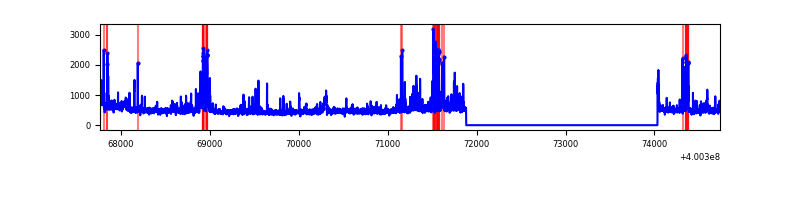

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6973 | 4822 | 13 | 13 | 0.19% | 0.27% |  |
| B | 6973 | 4822 | 47 | 47 | 0.67% | 0.97% |  |
| C | 6973 | 4822 | 39 | 39 | 0.56% | 0.81% |  |
| D | 6973 | 4822 | 160 | 160 | 2.29% | 3.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 292062 | 2680.99 | 541 | 530 | 108.7 |
| A | 9 | 143 | 33608 | 304.19 | 541 | 530 | 108.7 |
| A | 13 | 248 | 21016 | 188.39 | 541 | 530 | 108.7 |
| B | 5 | 255 | 154574 | 1511.84 | 545 | 532 | 101.9 |
| B | 5 | 172 | 139319 | 1362.12 | 545 | 532 | 101.9 |
| B | 0 | 213 | 66750 | 649.89 | 545 | 532 | 101.9 |
| C | 15 | 214 | 221580 | 1781.93 | 537 | 540 | 124.0 |
| C | 0 | 10 | 158472 | 1273.18 | 537 | 540 | 124.0 |
| C | 14 | 254 | 69424 | 555.31 | 537 | 540 | 124.0 |
| D | 2 | 250 | 287899 | 2222.87 | 523 | 509 | 129.3 |
| D | 10 | 199 | 226151 | 1745.27 | 523 | 509 | 129.3 |
| D | 2 | 249 | 217186 | 1675.92 | 523 | 509 | 129.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

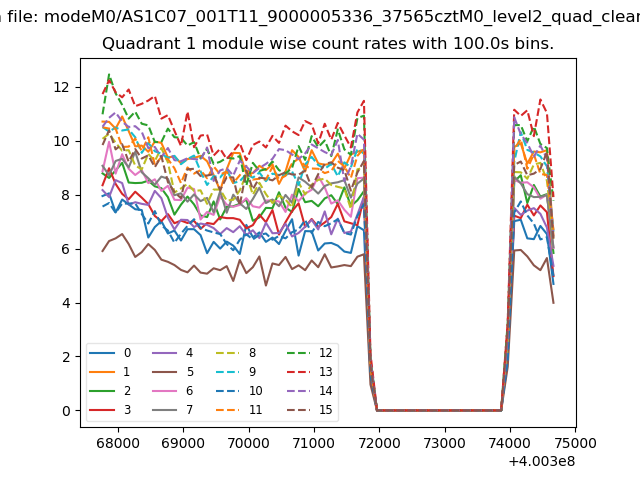

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

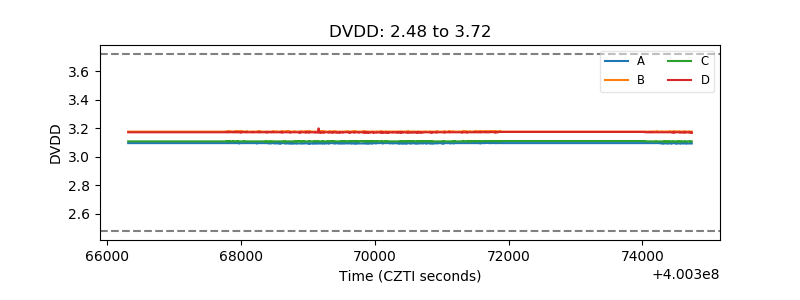

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

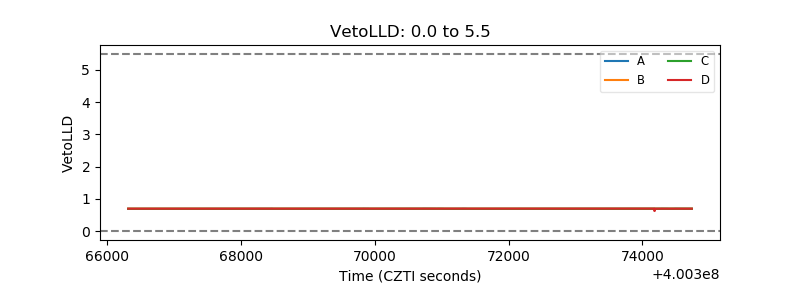

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

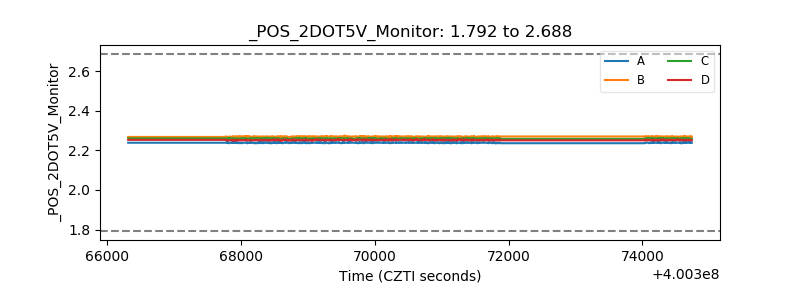

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

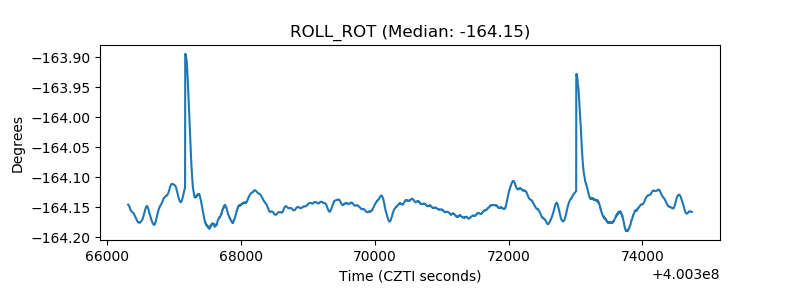

| _ROLL_ROT |  |

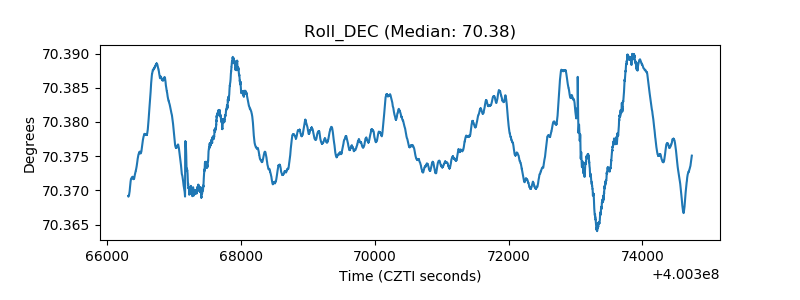

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
