| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_075T01_9000005342_37620cztM0_level2.evt | modeM0/AS1A11_075T01_9000005342_37620cztM0_level2_quad_clean.evt |
| Size (bytes) | 557,447,040 | 78,039,360 |
| Size | 531.6 MB | 74.4 MB |
| Events in quadrant A | 6,746,578 | 478,306 |
| Events in quadrant B | 2,962,528 | 522,891 |
| Events in quadrant C | 2,903,235 | 518,336 |
| Events in quadrant D | 3,913,539 | 474,425 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23700 | 3 |
| B | 0 | 12253 | 2 |
| C | 0 | 11755 | 2 |
| D | 0 | 15227 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 35 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5264 | 1198 | 22.758359% |
| B | 5264 | 47 | 0.892857% |
| C | 5264 | 49 | 0.930851% |
| D | 5264 | 361 | 6.857903% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7147 | 5265 | 896 | 896 | 12.54% | 17.02% |  |
| B | 7146 | 5263 | 28 | 28 | 0.39% | 0.53% |  |
| C | 7146 | 5263 | 35 | 35 | 0.49% | 0.67% |  |
| D | 7147 | 5264 | 348 | 348 | 4.87% | 6.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 4078018 | 34290.95 | 592 | 581 | 118.9 |
| A | 10 | 83 | 297937 | 2500.74 | 592 | 581 | 118.9 |
| A | 9 | 143 | 30601 | 252.47 | 592 | 581 | 118.9 |
| B | 0 | 189 | 81775 | 661.73 | 649 | 633 | 122.6 |
| B | 4 | 232 | 71628 | 578.98 | 649 | 633 | 122.6 |
| B | 5 | 172 | 61624 | 497.4 | 649 | 633 | 122.6 |
| C | 15 | 214 | 242827 | 1644.37 | 638 | 645 | 147.3 |
| C | 0 | 10 | 136650 | 923.45 | 638 | 645 | 147.3 |
| C | 14 | 254 | 20104 | 132.12 | 638 | 645 | 147.3 |
| D | 12 | 233 | 731777 | 4853.58 | 616 | 599 | 150.6 |
| D | 2 | 249 | 280504 | 1858.02 | 616 | 599 | 150.6 |
| D | 13 | 249 | 238410 | 1578.6 | 616 | 599 | 150.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

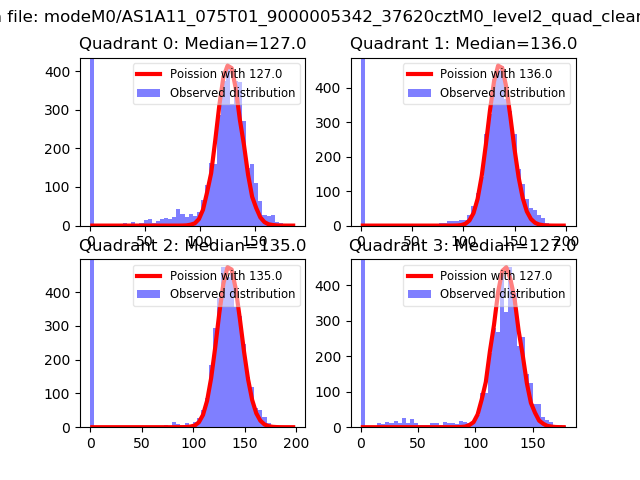

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

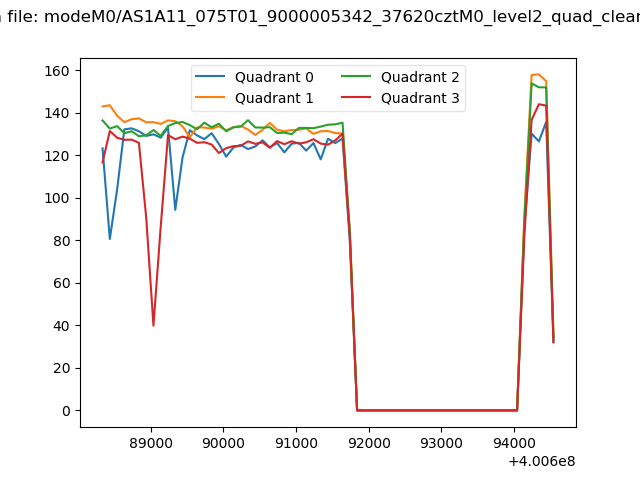

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

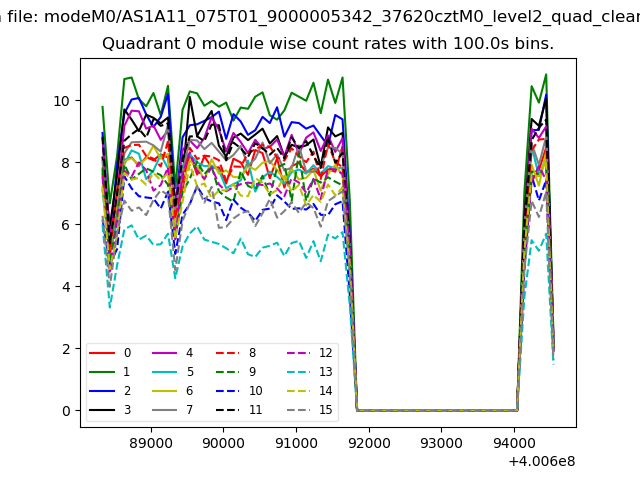

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

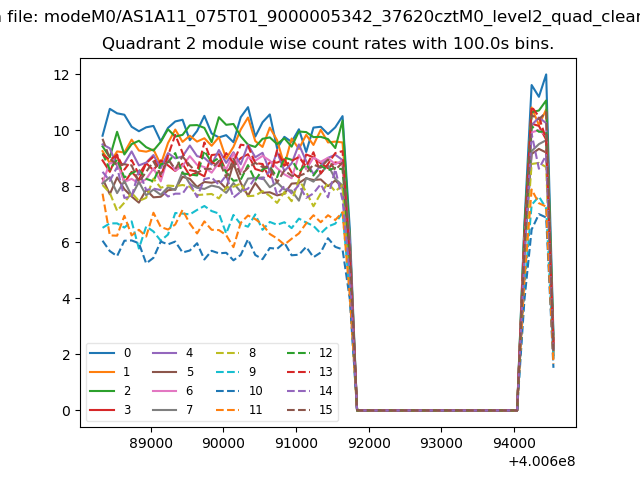

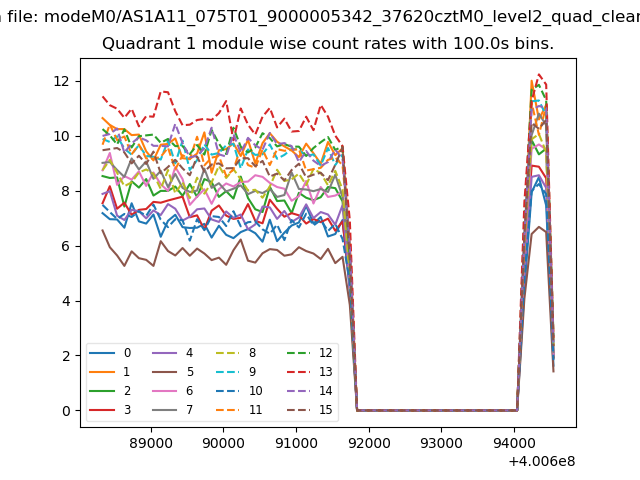

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

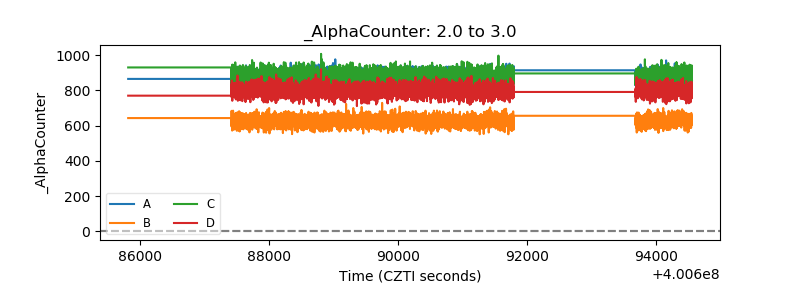

| Alpha Counter |  |

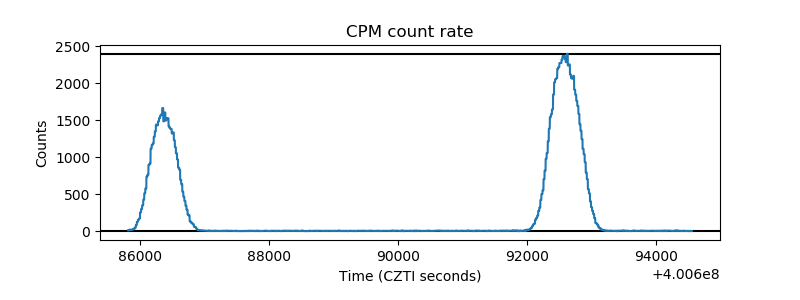

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

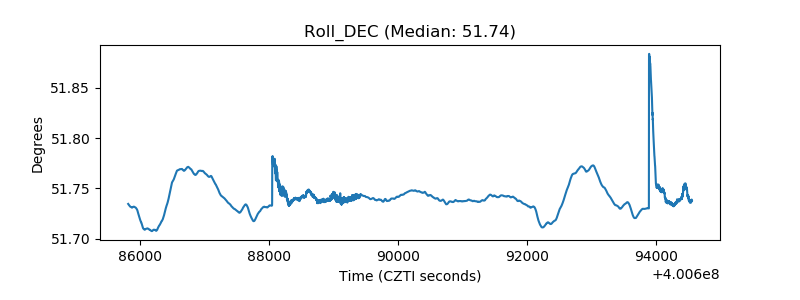

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
