| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_075T01_9000005342_37622cztM0_level2.evt | modeM0/AS1A11_075T01_9000005342_37622cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,359,040 | 97,064,640 |
| Size | 435.2 MB | 92.6 MB |
| Events in quadrant A | 4,783,984 | 612,357 |
| Events in quadrant B | 2,868,982 | 674,231 |
| Events in quadrant C | 2,767,862 | 678,157 |
| Events in quadrant D | 3,067,457 | 630,717 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17780 | 3 |
| B | 0 | 11660 | 2 |
| C | 0 | 11136 | 2 |
| D | 0 | 12426 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39 | 0 |
| B | 0 | 39 | 0 |
| C | 0 | 39 | 0 |
| D | 0 | 40 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4904 | 525 | 10.705546% |
| B | 4904 | 86 | 1.753670% |
| C | 4904 | 49 | 0.999184% |
| D | 4904 | 72 | 1.468189% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6998 | 4905 | 448 | 448 | 6.40% | 9.13% |  |
| B | 6997 | 4903 | 61 | 61 | 0.87% | 1.24% |  |
| C | 6997 | 4903 | 43 | 43 | 0.61% | 0.88% |  |
| D | 6997 | 4903 | 75 | 75 | 1.07% | 1.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 2122111 | 18452.8 | 575 | 565 | 115.0 |
| A | 10 | 83 | 293580 | 2548.59 | 575 | 565 | 115.0 |
| A | 9 | 143 | 109151 | 944.46 | 575 | 565 | 115.0 |
| B | 5 | 255 | 183557 | 1616.84 | 604 | 589 | 113.2 |
| B | 5 | 172 | 123874 | 1089.44 | 604 | 589 | 113.2 |
| B | 0 | 189 | 67267 | 589.21 | 604 | 589 | 113.2 |
| C | 15 | 214 | 227623 | 1647.78 | 601 | 608 | 137.8 |
| C | 0 | 10 | 171228 | 1238.44 | 601 | 608 | 137.8 |
| C | 12 | 250 | 12237 | 84.41 | 601 | 608 | 137.8 |
| D | 12 | 217 | 196613 | 1375.49 | 592 | 578 | 142.5 |
| D | 2 | 153 | 175063 | 1224.29 | 592 | 578 | 142.5 |
| D | 12 | 233 | 95486 | 665.93 | 592 | 578 | 142.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

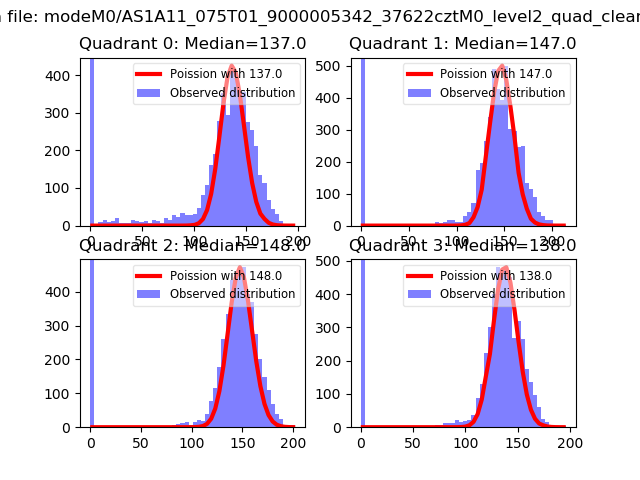

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

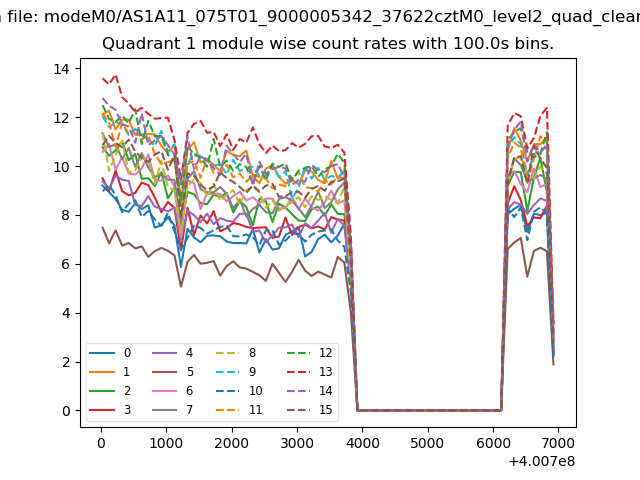

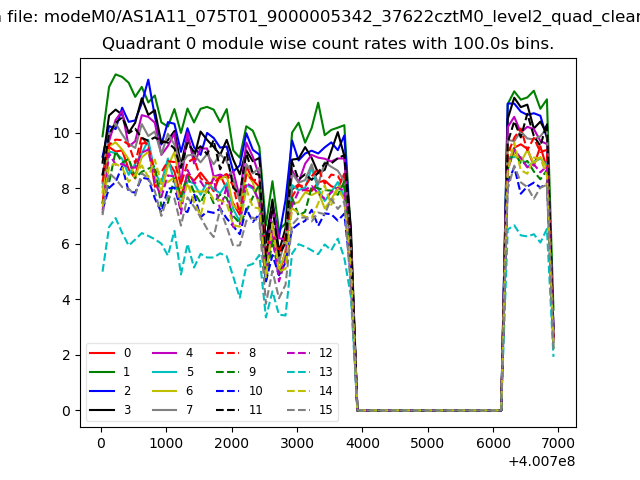

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

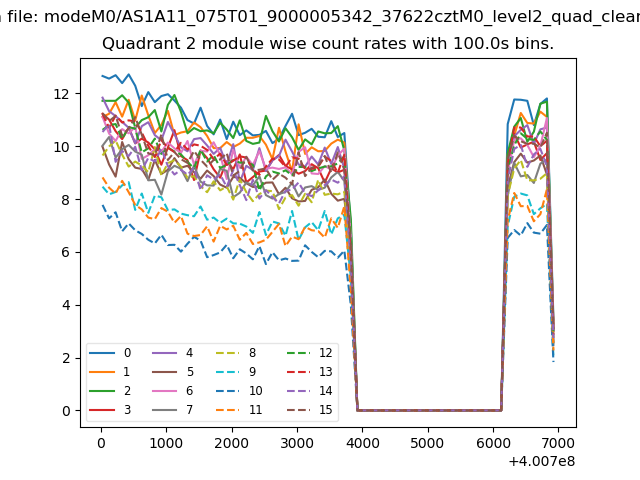

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

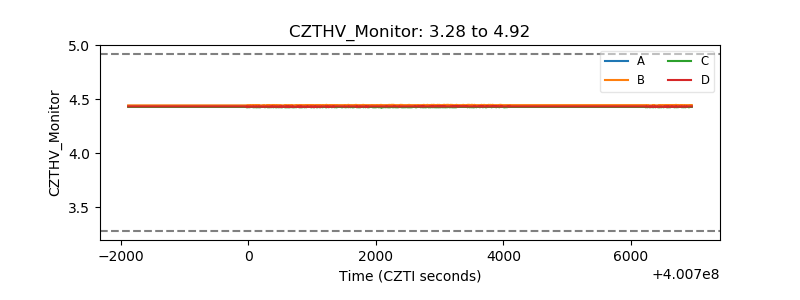

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

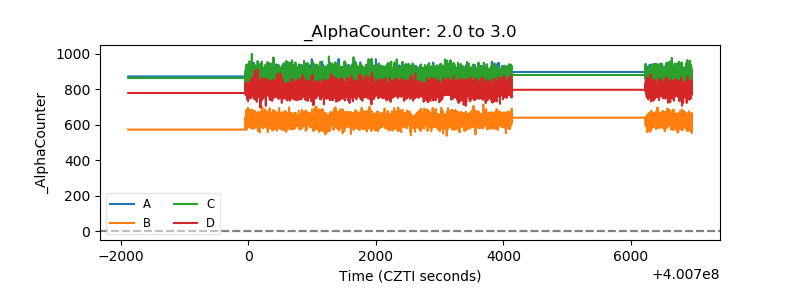

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

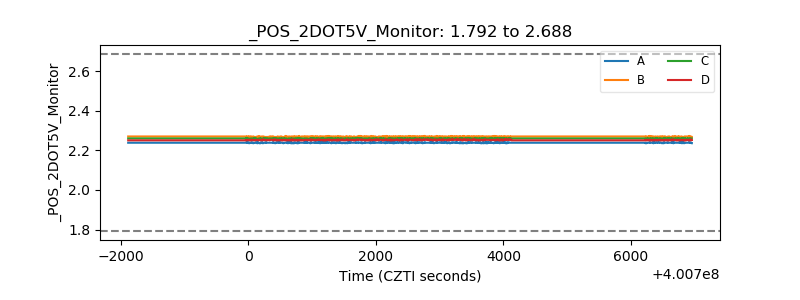

| +2.5 Volts monitor |  |

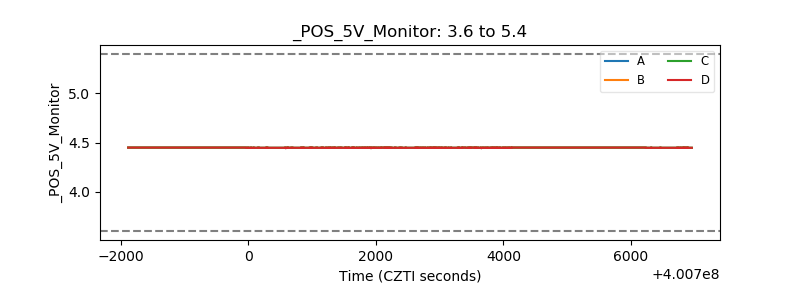

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
