| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_075T01_9000005342_37700cztM0_level2.evt | modeM0/AS1A11_075T01_9000005342_37700cztM0_level2_quad_clean.evt |
| Size (bytes) | 590,094,720 | 84,263,040 |
| Size | 562.8 MB | 80.4 MB |
| Events in quadrant A | 3,991,062 | 536,794 |
| Events in quadrant B | 3,572,842 | 532,171 |
| Events in quadrant C | 3,180,441 | 556,456 |
| Events in quadrant D | 6,693,514 | 479,311 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16422 | 3 |
| B | 0 | 14973 | 2 |
| C | 0 | 13433 | 2 |
| D | 0 | 24425 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6394 | 29 | 0.453550% |
| B | 6394 | 276 | 4.316547% |
| C | 6394 | 26 | 0.406631% |
| D | 6394 | 807 | 12.621207% |

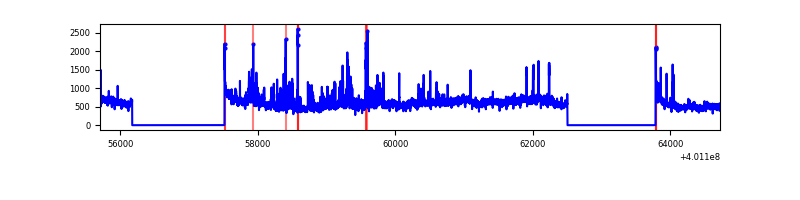

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9018 | 6395 | 13 | 13 | 0.14% | 0.20% |  |
| B | 9018 | 6393 | 141 | 141 | 1.56% | 2.21% |  |
| C | 9018 | 6393 | 27 | 27 | 0.30% | 0.42% |  |
| D | 9019 | 6394 | 750 | 750 | 8.32% | 11.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 489362 | 3354.67 | 721 | 706 | 145.7 |
| A | 10 | 83 | 350571 | 2401.85 | 721 | 706 | 145.7 |
| A | 13 | 248 | 304744 | 2087.25 | 721 | 706 | 145.7 |
| B | 5 | 200 | 404925 | 2984.91 | 702 | 682 | 135.4 |
| B | 5 | 172 | 186911 | 1375.1 | 702 | 682 | 135.4 |
| B | 0 | 229 | 56788 | 414.28 | 702 | 682 | 135.4 |
| C | 15 | 214 | 288692 | 1756.1 | 708 | 709 | 164.0 |
| C | 0 | 10 | 89554 | 541.77 | 708 | 709 | 164.0 |
| C | 14 | 254 | 39314 | 235.41 | 708 | 709 | 164.0 |
| D | 12 | 227 | 3153605 | 19546.35 | 665 | 646 | 161.3 |
| D | 13 | 249 | 409661 | 2535.63 | 665 | 646 | 161.3 |
| D | 2 | 250 | 346701 | 2145.32 | 665 | 646 | 161.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

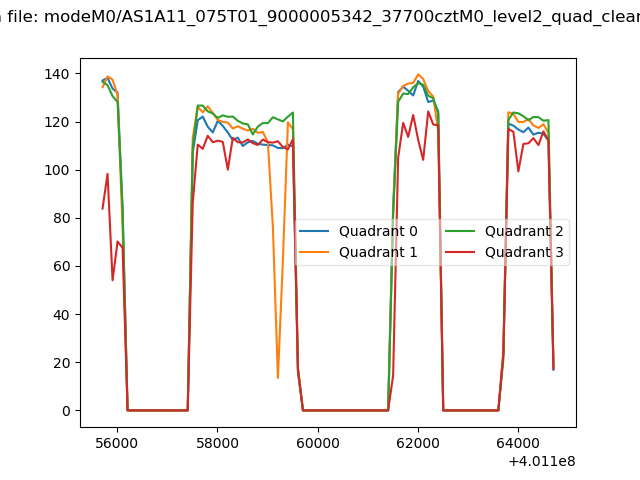

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

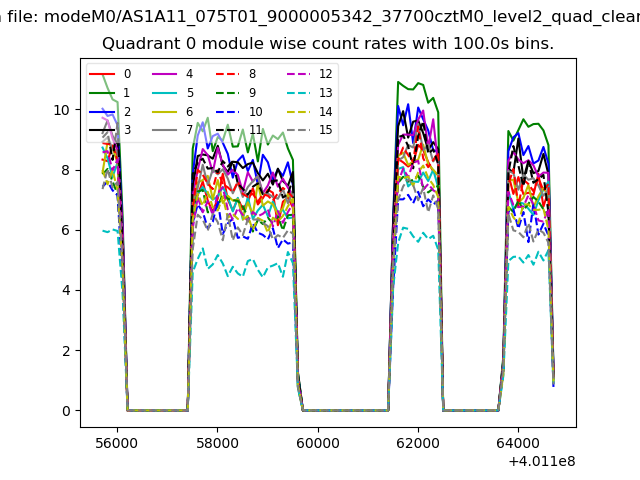

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

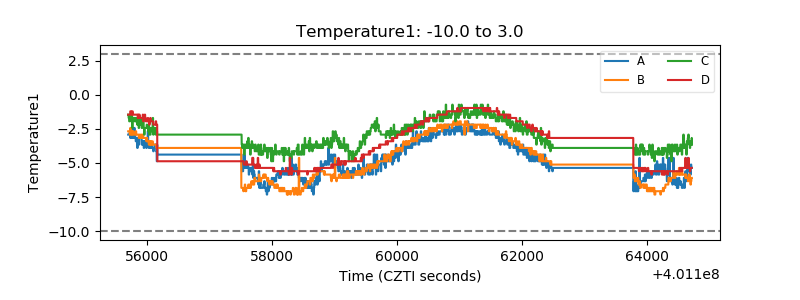

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

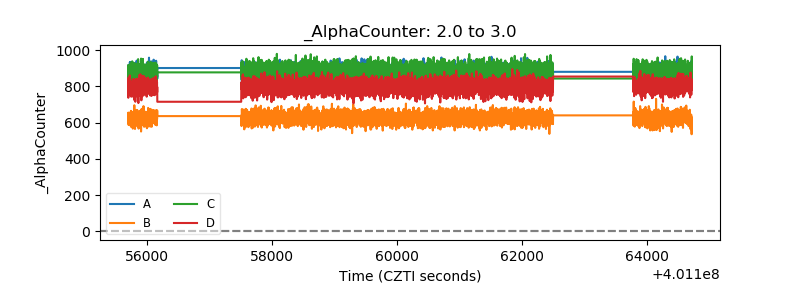

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

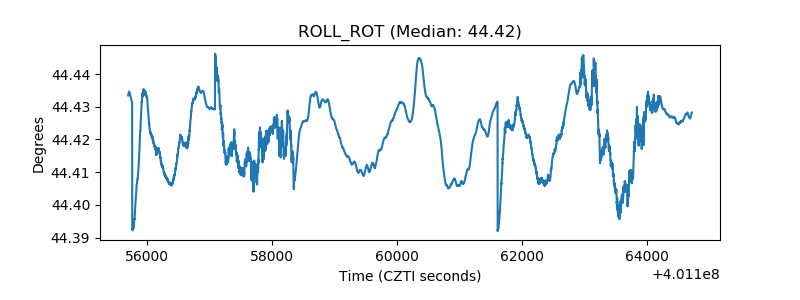

| _ROLL_ROT |  |

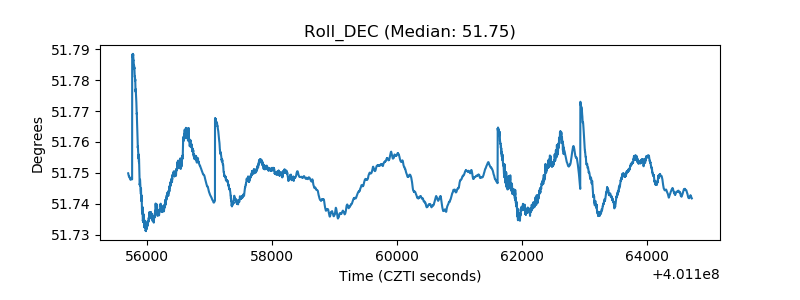

| _Roll_DEC |  |
| _Roll_RA |  |

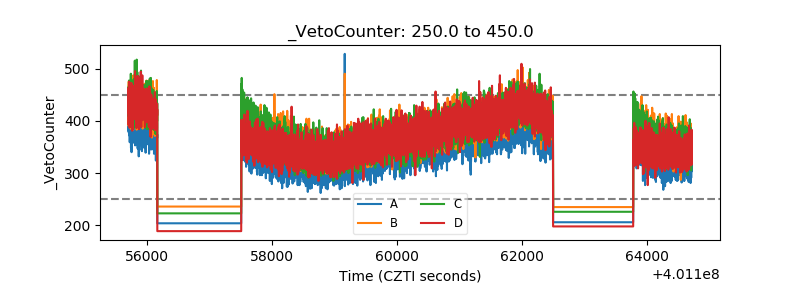

| Veto Counter |  |
