| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_075T01_9000005342_37706cztM0_level2.evt | modeM0/AS1A11_075T01_9000005342_37706cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,796,480 | 55,932,480 |
| Size | 449.0 MB | 53.3 MB |
| Events in quadrant A | 4,017,820 | 330,566 |
| Events in quadrant B | 2,731,756 | 336,403 |
| Events in quadrant C | 2,902,843 | 331,459 |
| Events in quadrant D | 4,239,000 | 316,362 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15513 | 3 |
| B | 0 | 11406 | 2 |
| C | 0 | 11768 | 2 |
| D | 0 | 16259 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5408 | 196 | 3.624260% |
| B | 5408 | 14 | 0.258876% |
| C | 5408 | 31 | 0.573225% |
| D | 5408 | 158 | 2.921598% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7200 | 5407 | 132 | 132 | 1.83% | 2.44% |  |
| B | 7200 | 5407 | 6 | 6 | 0.08% | 0.11% |  |
| C | 7200 | 5407 | 32 | 32 | 0.44% | 0.59% |  |
| D | 7200 | 5407 | 160 | 160 | 2.22% | 2.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 600889 | 4630.77 | 646 | 635 | 129.6 |
| A | 15 | 222 | 531268 | 4093.66 | 646 | 635 | 129.6 |
| A | 10 | 83 | 319869 | 2462.79 | 646 | 635 | 129.6 |
| B | 5 | 172 | 60751 | 490.34 | 646 | 630 | 122.6 |
| B | 0 | 230 | 33649 | 269.3 | 646 | 630 | 122.6 |
| B | 15 | 32 | 28339 | 225.99 | 646 | 630 | 122.6 |
| C | 15 | 214 | 245248 | 1683.64 | 629 | 636 | 145.3 |
| C | 0 | 10 | 110521 | 756.33 | 629 | 636 | 145.3 |
| C | 14 | 254 | 81058 | 553.54 | 629 | 636 | 145.3 |
| D | 12 | 227 | 860087 | 5583.19 | 630 | 613 | 153.9 |
| D | 2 | 250 | 373568 | 2422.73 | 630 | 613 | 153.9 |
| D | 2 | 249 | 274536 | 1779.42 | 630 | 613 | 153.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

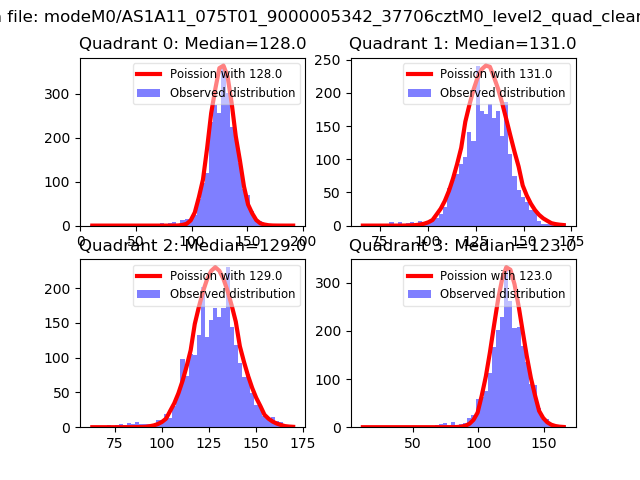

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

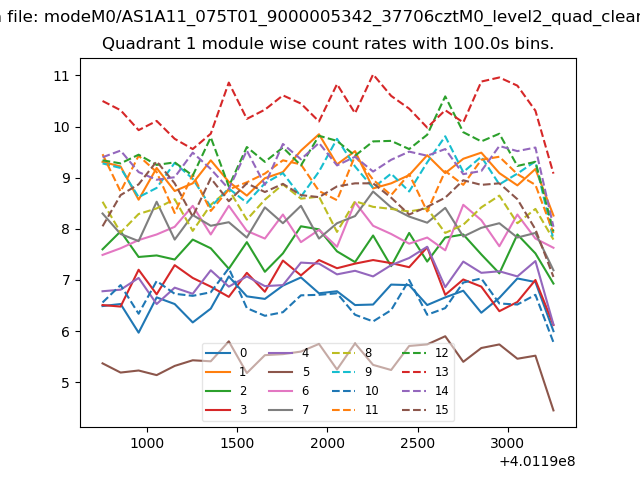

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

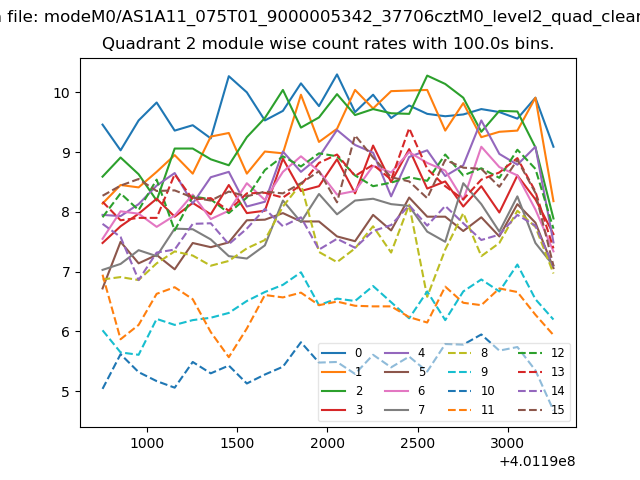

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

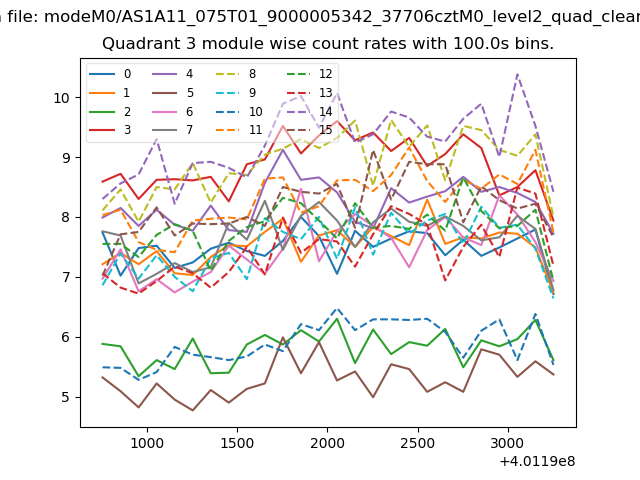

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

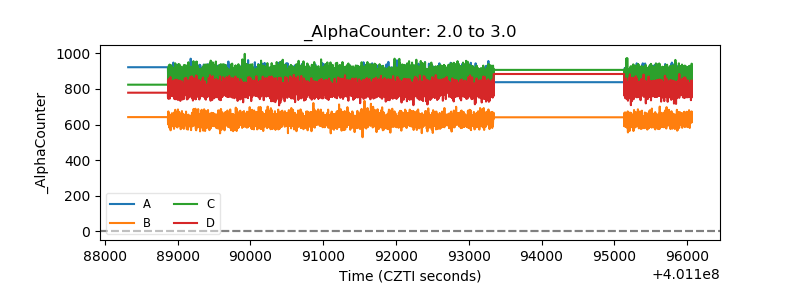

| Alpha Counter |  |

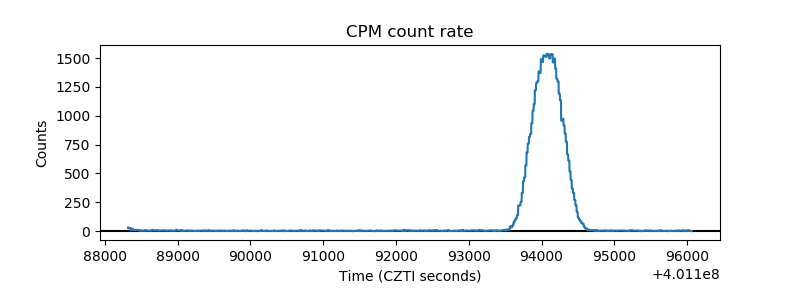

| _CPM_Rate |  |
| CZT Counter |  |

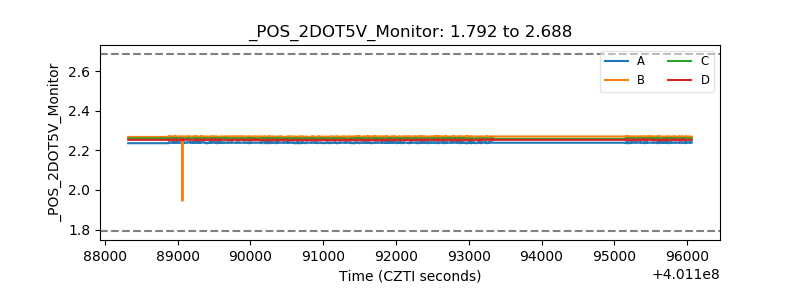

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

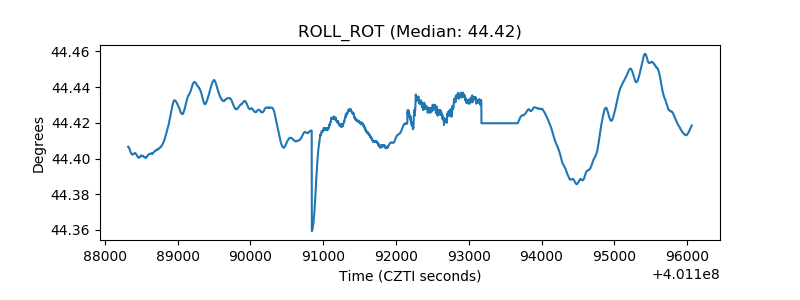

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
