| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_106T02_9000005344_37717cztM0_level2.evt | modeM0/AS1A11_106T02_9000005344_37717cztM0_level2_quad_clean.evt |
| Size (bytes) | 839,007,360 | 131,736,960 |
| Size | 800.1 MB | 125.6 MB |
| Events in quadrant A | 6,927,545 | 803,748 |
| Events in quadrant B | 6,219,537 | 819,270 |
| Events in quadrant C | 5,383,455 | 831,000 |
| Events in quadrant D | 6,149,392 | 788,908 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42 | 0 |
| B | 0 | 42 | 0 |
| C | 0 | 42 | 0 |
| D | 0 | 42 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 222 | 0 |
| B | 0 | 222 | 0 |
| C | 0 | 222 | 0 |
| D | 0 | 222 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27712 | 4 |
| B | 0 | 25923 | 3 |
| C | 0 | 22928 | 3 |
| D | 0 | 26095 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10786 | 108 | 1.001298% |
| B | 10786 | 290 | 2.688670% |
| C | 10786 | 41 | 0.380122% |
| D | 10786 | 321 | 2.976080% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

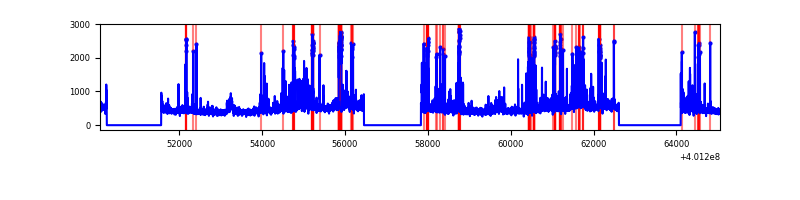

| A | 14963 | 10786 | 73 | 73 | 0.49% | 0.68% |  |
| B | 14963 | 10785 | 220 | 220 | 1.47% | 2.04% |  |
| C | 14963 | 10785 | 36 | 36 | 0.24% | 0.33% |  |

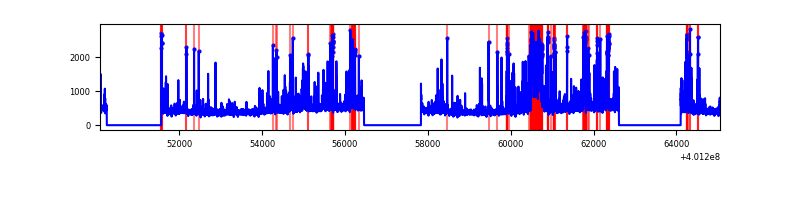

| D | 14963 | 10785 | 306 | 306 | 2.05% | 2.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 1364932 | 5698.0 | 1190 | 1164 | 239.3 |
| A | 10 | 83 | 588949 | 2455.84 | 1190 | 1164 | 239.3 |
| A | 9 | 143 | 327077 | 1361.71 | 1190 | 1164 | 239.3 |
| B | 5 | 172 | 581036 | 2575.76 | 1174 | 1141 | 225.1 |
| B | 5 | 255 | 264897 | 1171.54 | 1174 | 1141 | 225.1 |
| B | 0 | 197 | 122169 | 537.58 | 1174 | 1141 | 225.1 |
| C | 15 | 214 | 491278 | 1820.22 | 1165 | 1171 | 269.3 |
| C | 0 | 10 | 136060 | 500.97 | 1165 | 1171 | 269.3 |
| C | 14 | 254 | 124515 | 458.09 | 1165 | 1171 | 269.3 |
| D | 5 | 157 | 379718 | 1360.91 | 1155 | 1124 | 278.2 |
| D | 2 | 250 | 292299 | 1046.67 | 1155 | 1124 | 278.2 |
| D | 12 | 233 | 272420 | 975.21 | 1155 | 1124 | 278.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

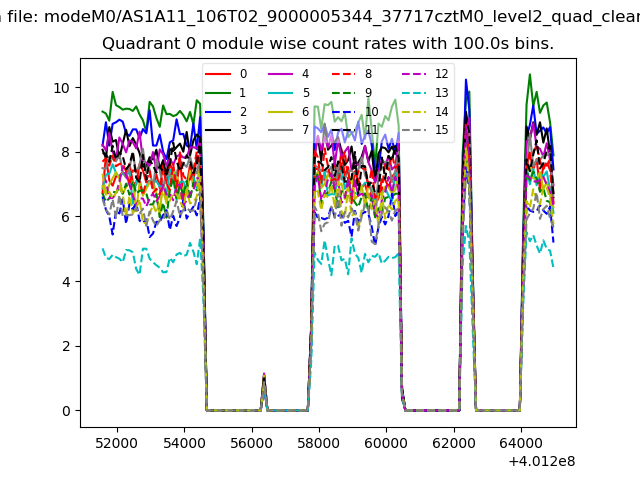

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

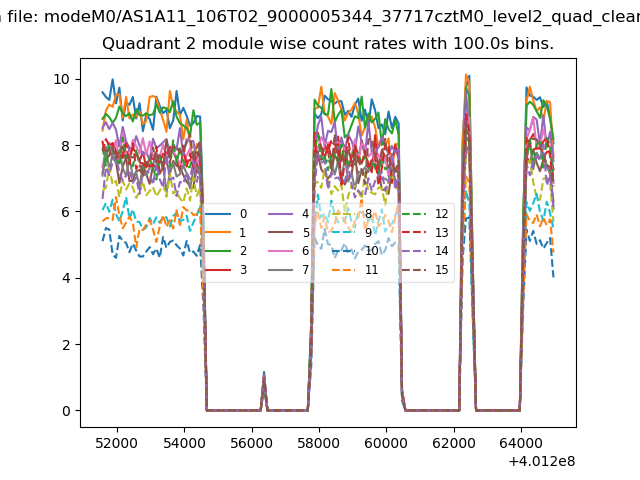

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

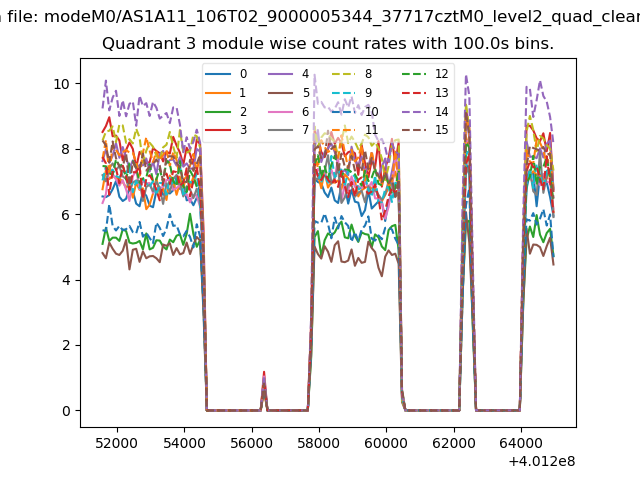

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

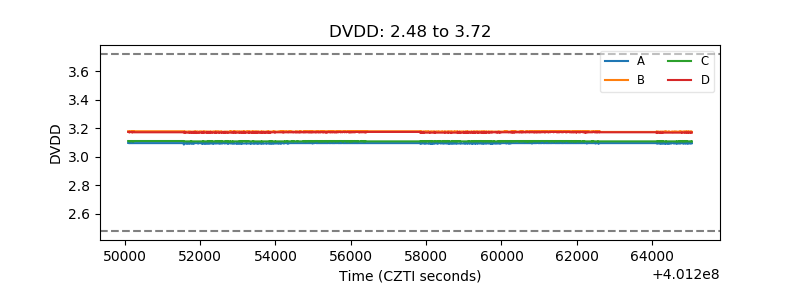

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

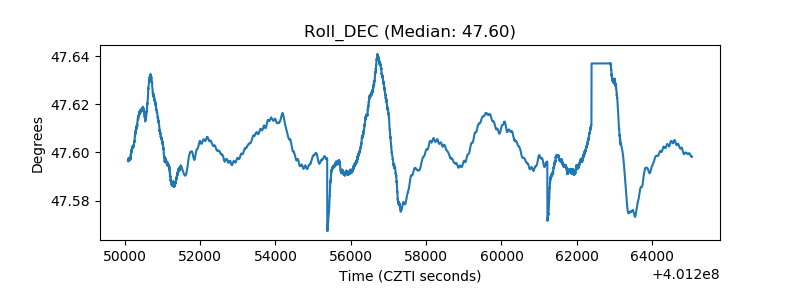

| _Roll_DEC |  |
| _Roll_RA |  |

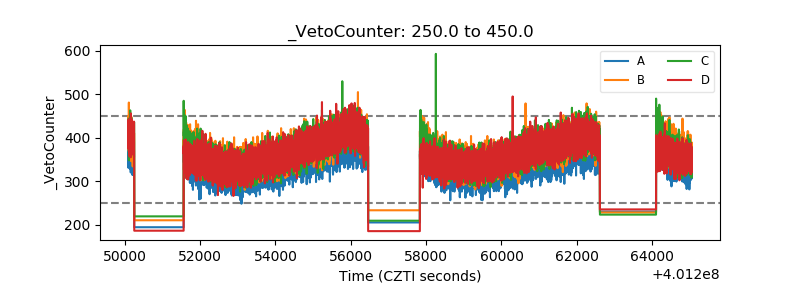

| Veto Counter |  |
