| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_106T02_9000005344_37718cztM0_level2.evt | modeM0/AS1A11_106T02_9000005344_37718cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,198,720 | 72,483,840 |
| Size | 463.7 MB | 69.1 MB |
| Events in quadrant A | 5,178,922 | 445,122 |
| Events in quadrant B | 2,899,775 | 459,344 |
| Events in quadrant C | 2,704,016 | 462,533 |
| Events in quadrant D | 3,562,391 | 436,324 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19148 | 3 |
| B | 0 | 12365 | 2 |
| C | 0 | 11531 | 2 |
| D | 0 | 14441 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5594 | 383 | 6.846621% |
| B | 5594 | 55 | 0.983196% |
| C | 5594 | 14 | 0.250268% |
| D | 5594 | 138 | 2.466929% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

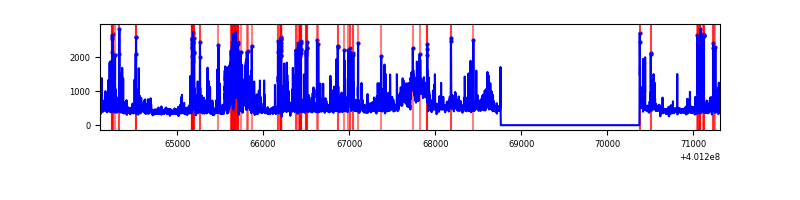

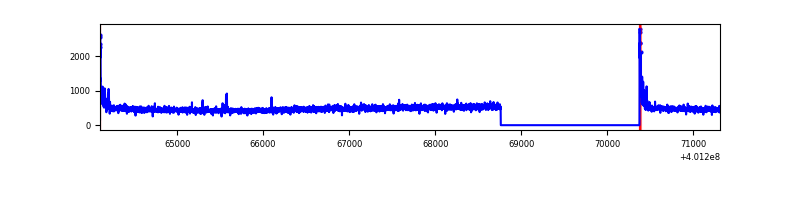

| A | 7207 | 5595 | 329 | 329 | 4.57% | 5.88% |  |
| B | 7206 | 5593 | 38 | 38 | 0.53% | 0.68% |  |
| C | 7206 | 5593 | 9 | 9 | 0.12% | 0.16% |  |
| D | 7206 | 5593 | 137 | 137 | 1.90% | 2.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 2395872 | 19445.66 | 614 | 604 | 123.2 |
| A | 10 | 83 | 338347 | 2741.92 | 614 | 604 | 123.2 |
| A | 9 | 143 | 25008 | 198.12 | 614 | 604 | 123.2 |
| B | 5 | 172 | 138483 | 1157.78 | 617 | 602 | 119.1 |
| B | 5 | 255 | 124881 | 1043.57 | 617 | 602 | 119.1 |
| B | 0 | 189 | 101131 | 844.14 | 617 | 602 | 119.1 |
| C | 15 | 214 | 257309 | 1821.0 | 604 | 607 | 141.0 |
| C | 0 | 10 | 79529 | 559.86 | 604 | 607 | 141.0 |
| C | 14 | 254 | 8623 | 56.86 | 604 | 607 | 141.0 |
| D | 2 | 249 | 317723 | 2157.7 | 602 | 583 | 147.0 |
| D | 2 | 250 | 233826 | 1586.89 | 602 | 583 | 147.0 |
| D | 12 | 227 | 169841 | 1151.56 | 602 | 583 | 147.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

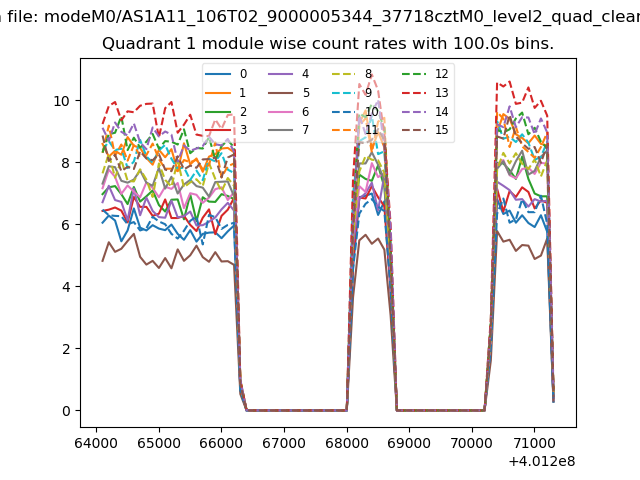

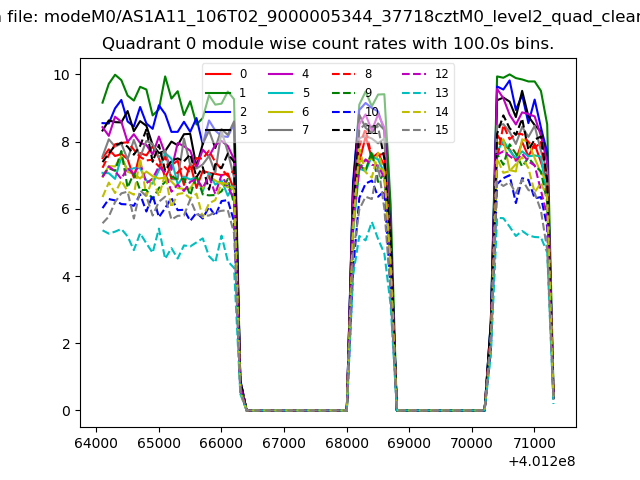

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

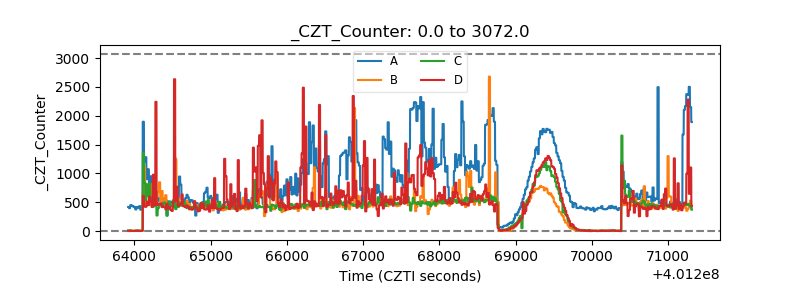

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

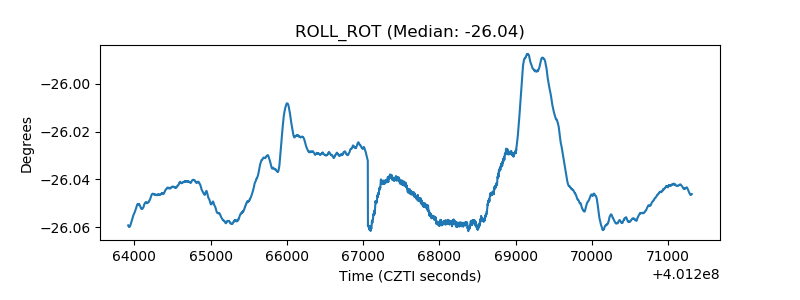

| _ROLL_ROT |  |
| _Roll_DEC |  |

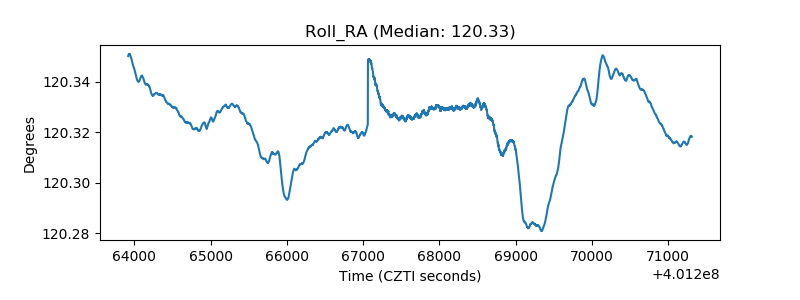

| _Roll_RA |  |

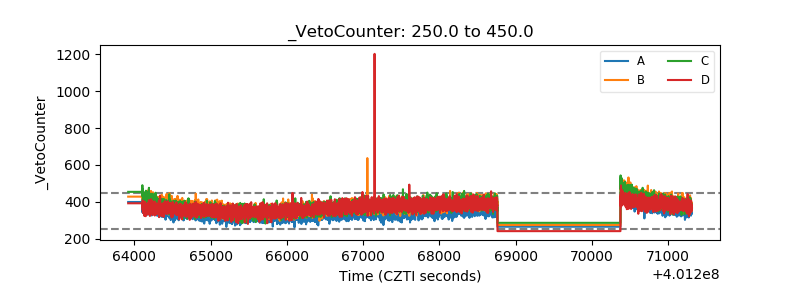

| Veto Counter |  |
