| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_106T02_9000005344_37728cztM0_level2.evt | modeM0/AS1A11_106T02_9000005344_37728cztM0_level2_quad_clean.evt |
| Size (bytes) | 734,601,600 | 88,773,120 |
| Size | 700.6 MB | 84.7 MB |
| Events in quadrant A | 9,223,286 | 528,079 |
| Events in quadrant B | 2,979,600 | 599,347 |
| Events in quadrant C | 2,962,487 | 609,522 |
| Events in quadrant D | 6,688,280 | 542,586 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31326 | 3 |
| B | 0 | 12926 | 2 |
| C | 0 | 12446 | 2 |
| D | 0 | 23946 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5835 | 2221 | 38.063410% |
| B | 5835 | 86 | 1.473865% |
| C | 5835 | 42 | 0.719794% |
| D | 5835 | 1201 | 20.582691% |

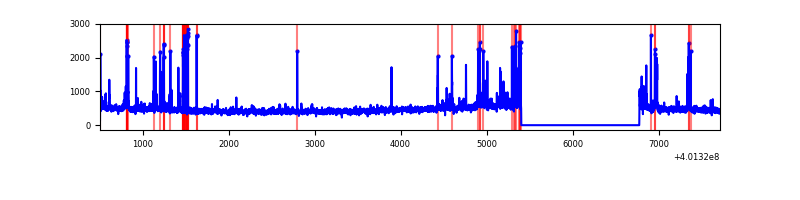

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7208 | 5835 | 2191 | 2191 | 30.40% | 37.55% |  |
| B | 7207 | 5834 | 60 | 60 | 0.83% | 1.03% |  |
| C | 7207 | 5834 | 36 | 36 | 0.50% | 0.62% |  |
| D | 7207 | 5834 | 1186 | 1186 | 16.46% | 20.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 6497342 | 53833.42 | 595 | 585 | 120.7 |
| A | 10 | 83 | 315666 | 2610.82 | 595 | 585 | 120.7 |
| A | 9 | 143 | 75085 | 617.32 | 595 | 585 | 120.7 |
| B | 5 | 172 | 154534 | 1257.62 | 638 | 622 | 122.4 |
| B | 4 | 81 | 76699 | 621.63 | 638 | 622 | 122.4 |
| B | 5 | 255 | 63944 | 517.41 | 638 | 622 | 122.4 |
| C | 15 | 214 | 247485 | 1659.33 | 633 | 638 | 148.8 |
| C | 0 | 10 | 146939 | 983.45 | 633 | 638 | 148.8 |
| C | 14 | 254 | 36380 | 240.26 | 633 | 638 | 148.8 |
| D | 12 | 227 | 2942818 | 20623.94 | 584 | 570 | 142.7 |
| D | 2 | 249 | 342876 | 2399.42 | 584 | 570 | 142.7 |
| D | 1 | 47 | 289695 | 2026.65 | 584 | 570 | 142.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

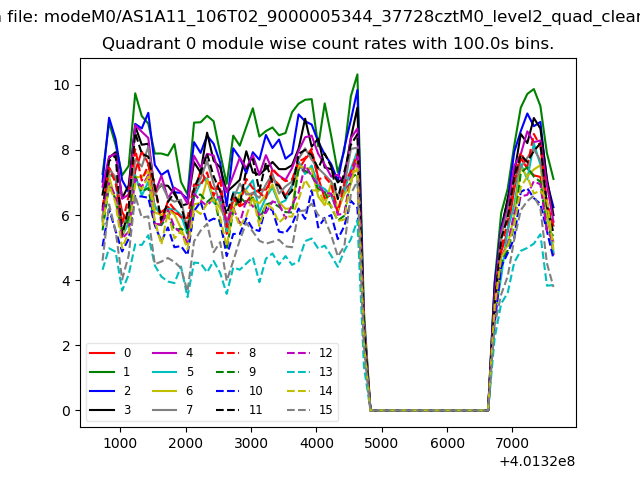

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

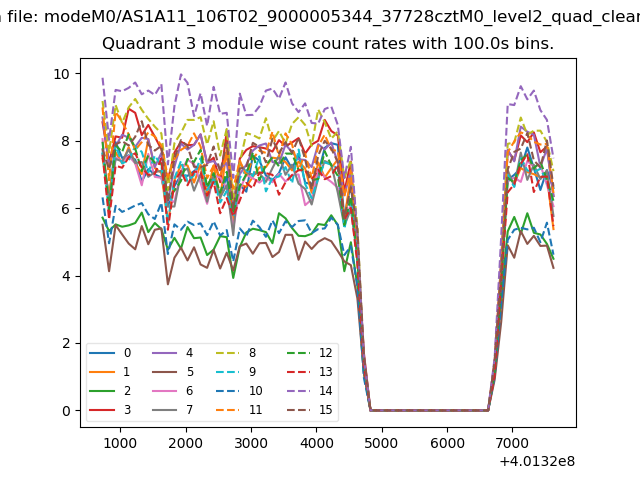

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

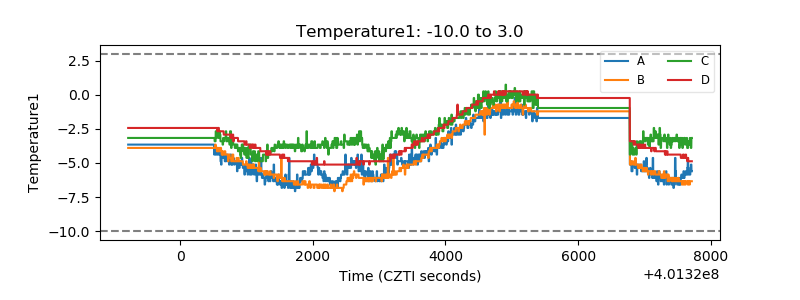

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

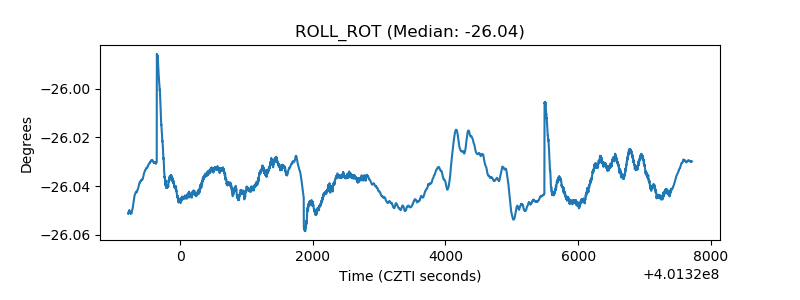

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
