| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_057T01_9000005346_37787cztM0_level2.evt | modeM0/AS1T05_057T01_9000005346_37787cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,312,320 | 76,417,920 |
| Size | 496.2 MB | 72.9 MB |
| Events in quadrant A | 3,404,477 | 472,959 |
| Events in quadrant B | 3,573,427 | 472,736 |
| Events in quadrant C | 3,325,785 | 474,444 |
| Events in quadrant D | 5,007,002 | 433,915 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14138 | 3 |
| B | 0 | 14924 | 2 |
| C | 0 | 13780 | 2 |
| D | 0 | 19407 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6593 | 12 | 0.182011% |
| B | 6593 | 60 | 0.910056% |
| C | 6593 | 39 | 0.591536% |
| D | 6593 | 282 | 4.277264% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9220 | 6595 | 9 | 9 | 0.10% | 0.14% |  |
| B | 9220 | 6595 | 31 | 31 | 0.34% | 0.47% |  |
| C | 9220 | 6595 | 32 | 32 | 0.35% | 0.49% |  |
| D | 9220 | 6595 | 281 | 281 | 3.05% | 4.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 391305 | 2532.64 | 758 | 745 | 154.2 |
| A | 12 | 189 | 24155 | 151.81 | 758 | 745 | 154.2 |
| A | 9 | 143 | 22290 | 139.71 | 758 | 745 | 154.2 |
| B | 4 | 171 | 109867 | 750.13 | 752 | 732 | 145.5 |
| B | 0 | 229 | 90524 | 617.18 | 752 | 732 | 145.5 |
| B | 4 | 232 | 79318 | 540.16 | 752 | 732 | 145.5 |
| C | 15 | 214 | 300901 | 1731.68 | 738 | 744 | 173.3 |
| C | 0 | 207 | 64457 | 367.58 | 738 | 744 | 173.3 |
| C | 0 | 10 | 54819 | 311.97 | 738 | 744 | 173.3 |
| D | 1 | 239 | 737444 | 4084.1 | 728 | 707 | 180.4 |
| D | 7 | 223 | 270445 | 1495.29 | 728 | 707 | 180.4 |
| D | 12 | 2 | 244442 | 1351.14 | 728 | 707 | 180.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

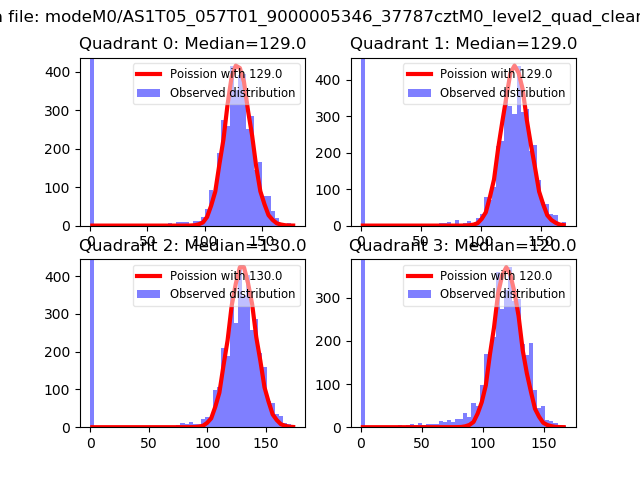

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

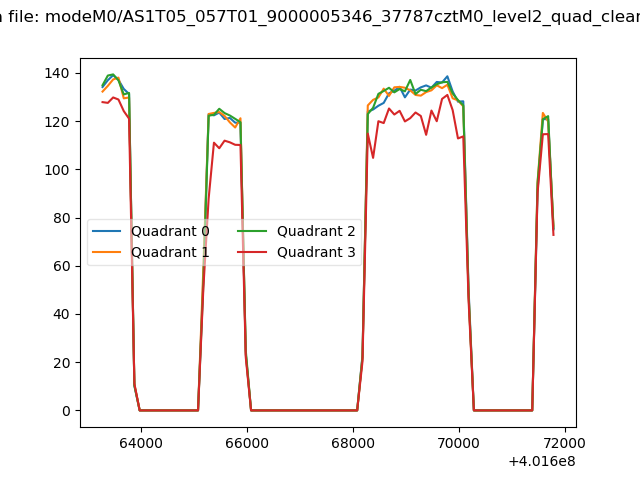

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

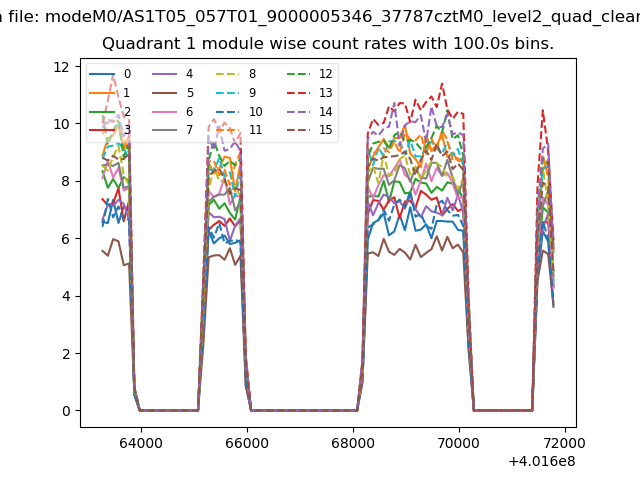

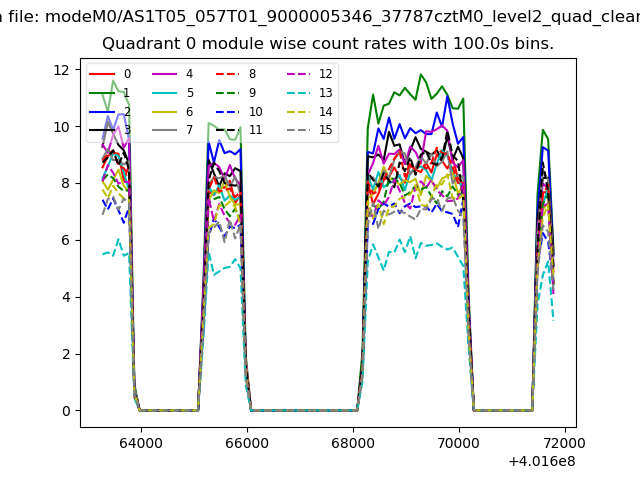

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

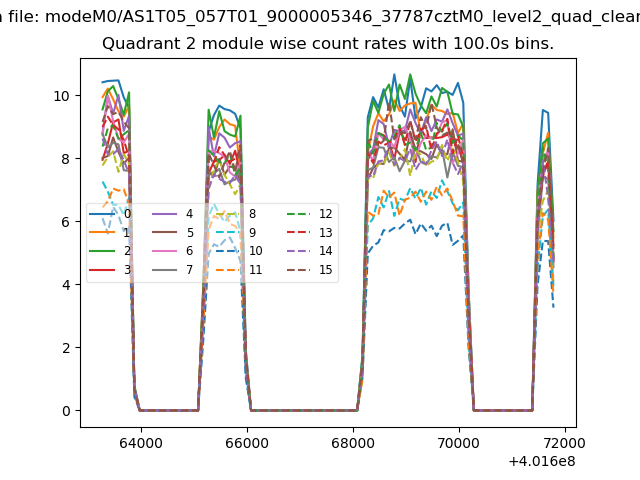

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

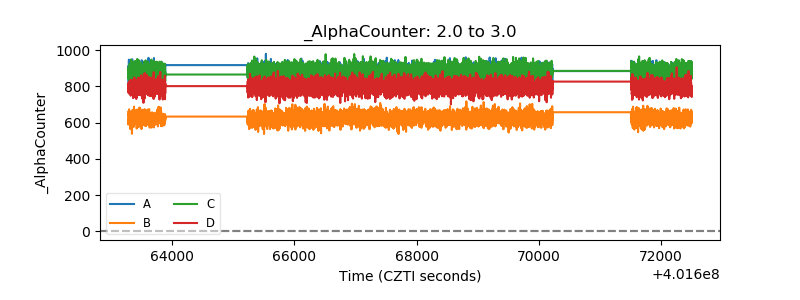

| Alpha Counter |  |

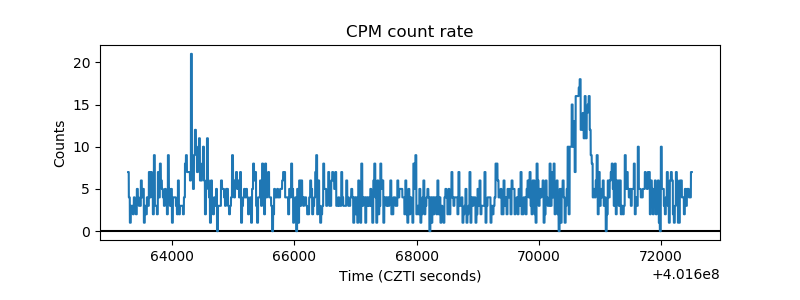

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

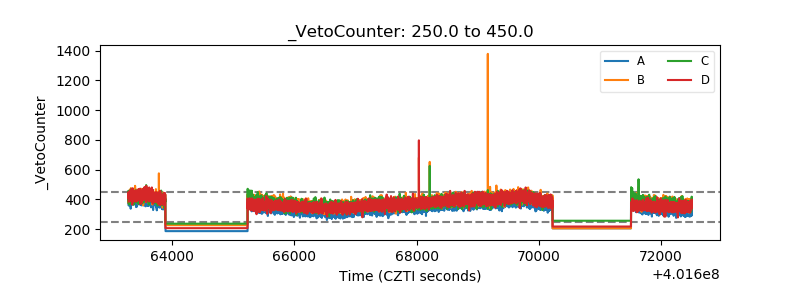

| Veto Counter |  |
