| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T06_9000005348_37799cztM0_level2.evt | modeM0/AS1A10_103T06_9000005348_37799cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,657,280 | 68,581,440 |
| Size | 463.2 MB | 65.4 MB |
| Events in quadrant A | 3,068,566 | 436,529 |
| Events in quadrant B | 3,556,786 | 429,872 |
| Events in quadrant C | 2,835,445 | 439,366 |
| Events in quadrant D | 4,873,449 | 384,943 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12458 | 3 |
| B | 0 | 14117 | 2 |
| C | 0 | 11809 | 2 |
| D | 0 | 18249 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5511 | 49 | 0.889131% |
| B | 5511 | 232 | 4.209762% |
| C | 5511 | 29 | 0.526220% |
| D | 5511 | 602 | 10.923607% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7274 | 5512 | 35 | 35 | 0.48% | 0.63% |  |
| B | 7274 | 5512 | 190 | 190 | 2.61% | 3.45% |  |
| C | 7274 | 5512 | 26 | 26 | 0.36% | 0.47% |  |
| D | 7274 | 5512 | 515 | 515 | 7.08% | 9.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 357045 | 2814.66 | 624 | 613 | 126.6 |
| A | 15 | 222 | 160435 | 1262.08 | 624 | 613 | 126.6 |
| A | 9 | 143 | 101227 | 794.52 | 624 | 613 | 126.6 |
| B | 5 | 172 | 666665 | 5707.72 | 612 | 597 | 116.7 |
| B | 0 | 229 | 312059 | 2669.0 | 612 | 597 | 116.7 |
| B | 0 | 230 | 63385 | 538.05 | 612 | 597 | 116.7 |
| C | 15 | 214 | 248895 | 1758.75 | 604 | 606 | 141.2 |
| C | 0 | 10 | 131466 | 926.95 | 604 | 606 | 141.2 |
| C | 0 | 207 | 79601 | 559.56 | 604 | 606 | 141.2 |
| D | 13 | 249 | 1524467 | 10827.67 | 573 | 558 | 140.7 |
| D | 1 | 52 | 260284 | 1845.4 | 573 | 558 | 140.7 |
| D | 5 | 157 | 209176 | 1482.27 | 573 | 558 | 140.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

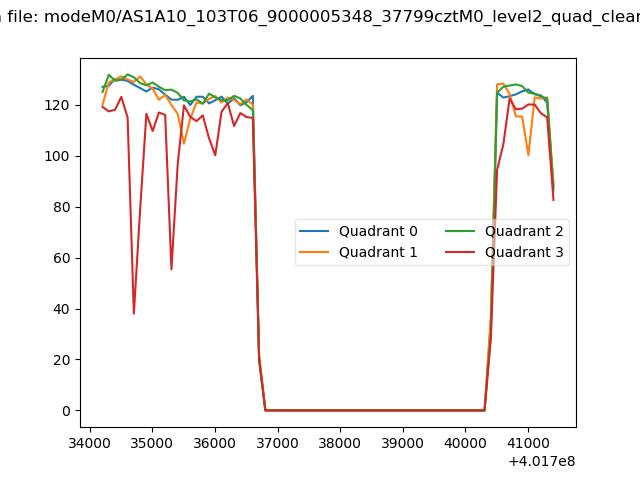

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

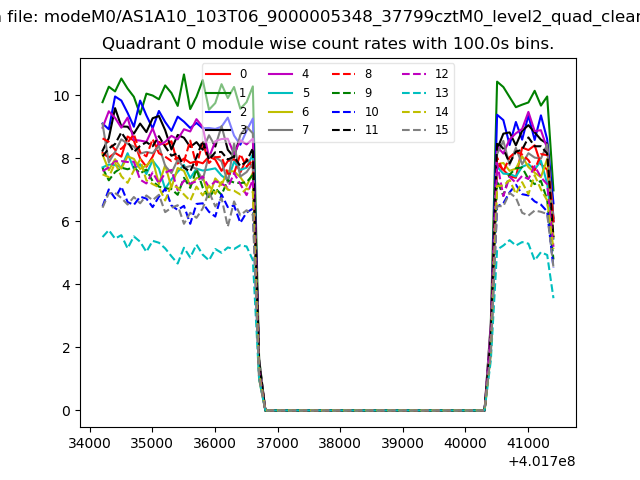

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

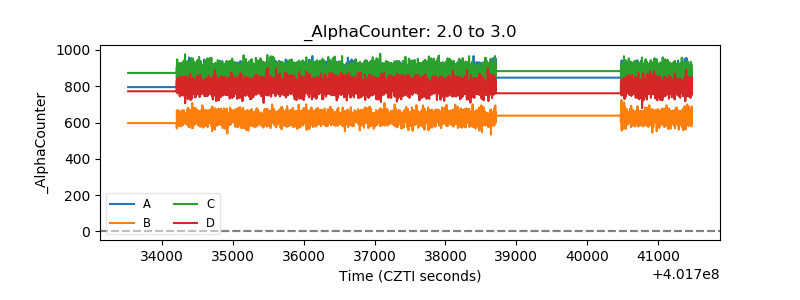

| Alpha Counter |  |
| _CPM_Rate |  |

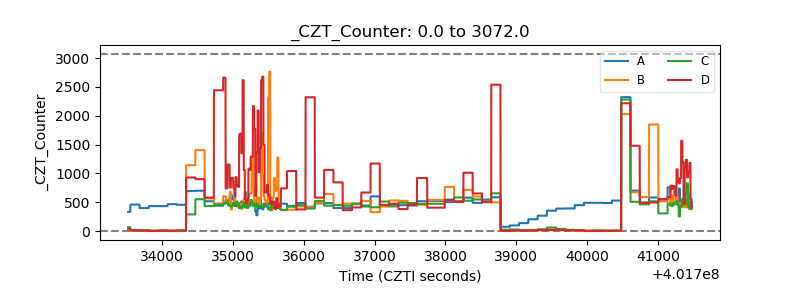

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

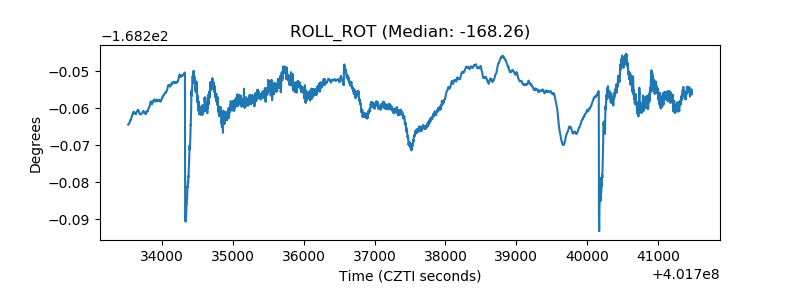

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
