| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_054T01_9000005350_37819cztM0_level2.evt | modeM0/AS1T05_054T01_9000005350_37819cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,468,480 | 67,936,320 |
| Size | 426.7 MB | 64.8 MB |
| Events in quadrant A | 3,010,601 | 416,049 |
| Events in quadrant B | 3,112,426 | 422,248 |
| Events in quadrant C | 2,943,481 | 422,298 |
| Events in quadrant D | 4,097,282 | 397,348 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12255 | 3 |
| B | 0 | 12887 | 2 |
| C | 0 | 12130 | 2 |
| D | 0 | 16037 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5708 | 25 | 0.437982% |
| B | 5708 | 95 | 1.664331% |
| C | 5708 | 32 | 0.560617% |
| D | 5708 | 464 | 8.128942% |

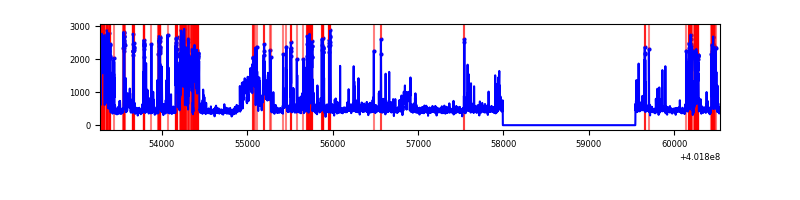

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7261 | 5709 | 7 | 7 | 0.10% | 0.12% |  |
| B | 7261 | 5709 | 70 | 70 | 0.96% | 1.23% |  |
| C | 7261 | 5709 | 22 | 22 | 0.30% | 0.39% |  |
| D | 7261 | 5709 | 341 | 341 | 4.70% | 5.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 361257 | 2747.19 | 649 | 636 | 131.3 |
| A | 9 | 143 | 69501 | 524.61 | 649 | 636 | 131.3 |
| A | 7 | 16 | 23963 | 177.7 | 649 | 636 | 131.3 |
| B | 0 | 229 | 208254 | 1678.81 | 644 | 626 | 123.7 |
| B | 4 | 171 | 108694 | 873.8 | 644 | 626 | 123.7 |
| B | 5 | 172 | 90566 | 727.22 | 644 | 626 | 123.7 |
| C | 15 | 214 | 262349 | 1761.14 | 633 | 638 | 148.6 |
| C | 0 | 10 | 125335 | 839.13 | 633 | 638 | 148.6 |
| C | 15 | 159 | 45653 | 302.92 | 633 | 638 | 148.6 |
| D | 13 | 249 | 972107 | 6553.14 | 606 | 589 | 148.3 |
| D | 2 | 249 | 551998 | 3719.4 | 606 | 589 | 148.3 |
| D | 10 | 199 | 74115 | 495.95 | 606 | 589 | 148.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

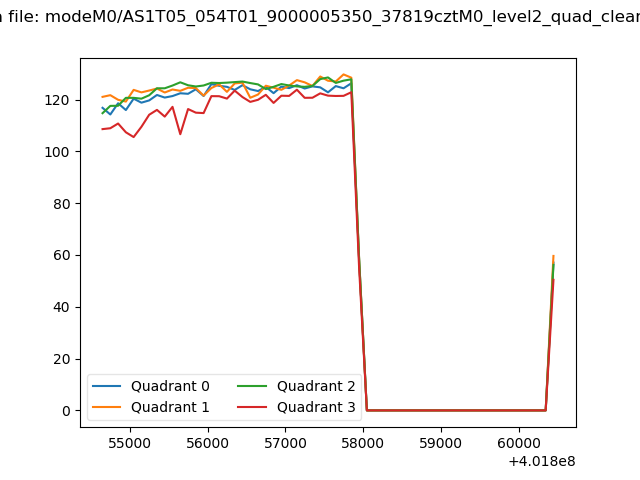

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

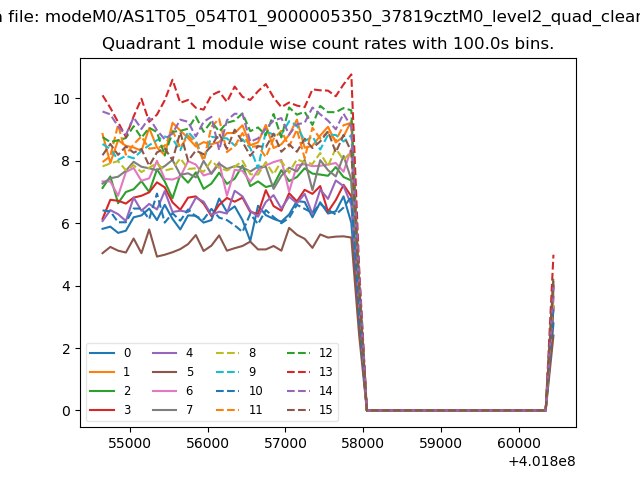

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

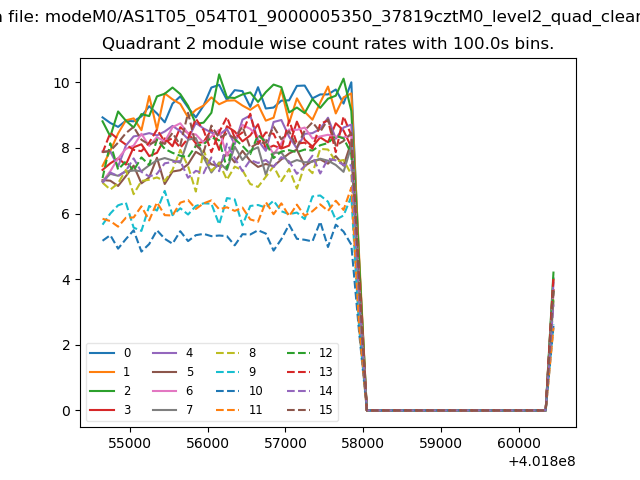

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

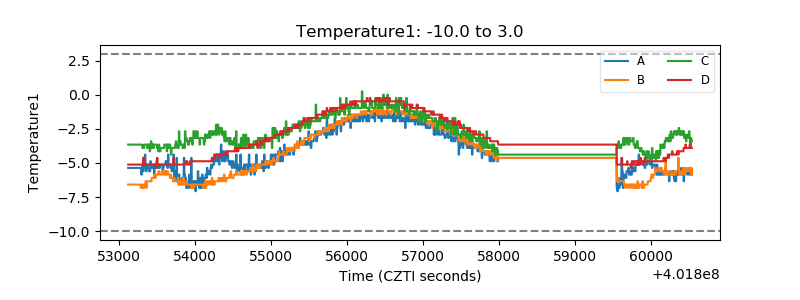

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

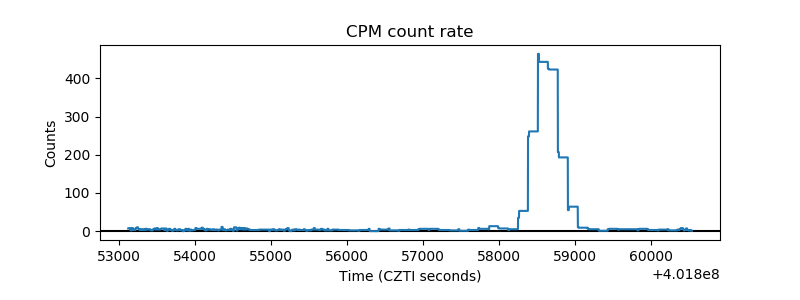

| _CPM_Rate |  |
| CZT Counter |  |

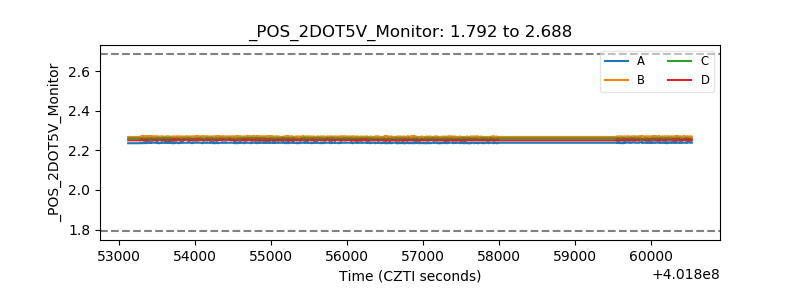

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

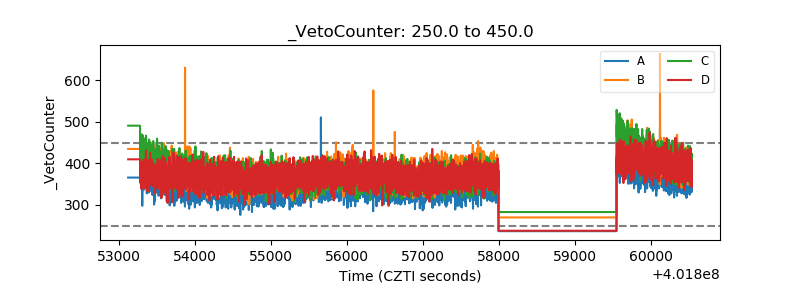

| Veto Counter |  |
