| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_024T01_9000005358_38039cztM0_level2.fits | modeM0/AS1A11_024T01_9000005358_38039cztM0_level2_quad_clean.evt |
| Size (bytes) | 341,870,400 | 100,739,520 |
| Size | 326.0 MB | 96.1 MB |
| Events in quadrant A | 3,059,354 | 683,166 |
| Events in quadrant B | 3,057,830 | 706,359 |
| Events in quadrant C | 2,871,466 | 667,376 |
| Events in quadrant D | 3,228,414 | 600,140 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12460 | 3 |
| B | 0 | 12604 | 2 |
| C | 0 | 11689 | 2 |
| D | 0 | 13208 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5622 | 25 | 0.444682% |
| B | 5622 | 60 | 1.067236% |
| C | 5622 | 10 | 0.177873% |
| D | 5622 | 127 | 2.258983% |

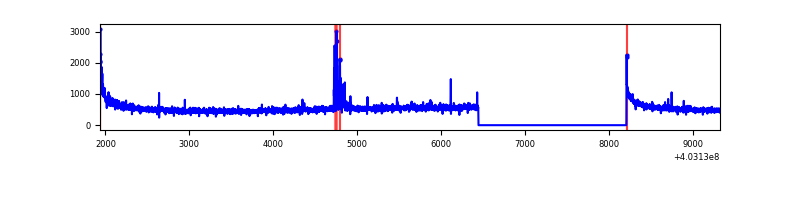

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7385 | 5623 | 11 | 11 | 0.15% | 0.20% |  |
| B | 7385 | 5623 | 32 | 32 | 0.43% | 0.57% |  |
| C | 7385 | 5623 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7385 | 5623 | 107 | 107 | 1.45% | 1.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 369897 | 2744.48 | 665 | 654 | 134.5 |
| A | 13 | 248 | 60027 | 441.3 | 665 | 654 | 134.5 |
| A | 12 | 16 | 27476 | 199.36 | 665 | 654 | 134.5 |
| B | 4 | 171 | 142126 | 1109.99 | 667 | 651 | 127.5 |
| B | 5 | 255 | 120433 | 939.79 | 667 | 651 | 127.5 |
| B | 5 | 184 | 40083 | 309.38 | 667 | 651 | 127.5 |
| C | 15 | 214 | 239827 | 1568.31 | 653 | 659 | 152.5 |
| C | 1 | 23 | 44766 | 289.22 | 653 | 659 | 152.5 |
| C | 14 | 254 | 18814 | 119.05 | 653 | 659 | 152.5 |
| D | 12 | 227 | 173876 | 1116.03 | 641 | 625 | 155.2 |
| D | 7 | 223 | 125111 | 801.9 | 641 | 625 | 155.2 |
| D | 13 | 249 | 122468 | 784.87 | 641 | 625 | 155.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

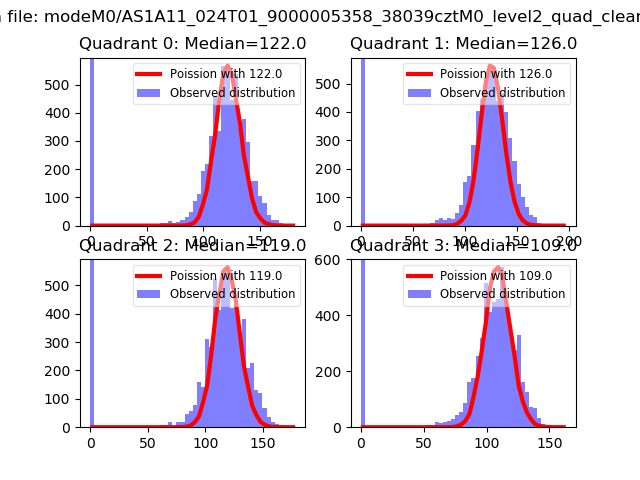

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

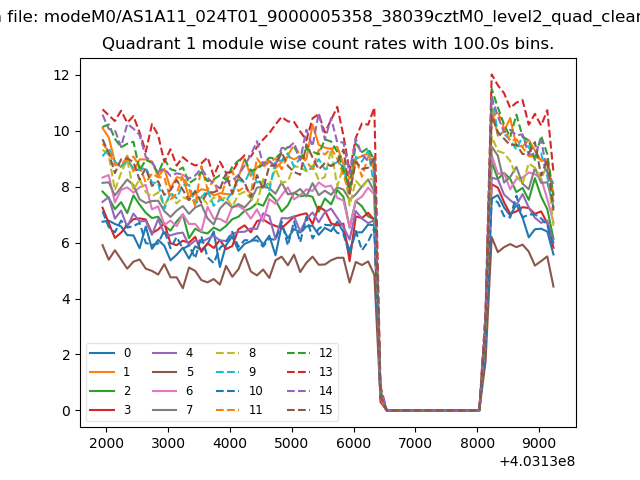

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

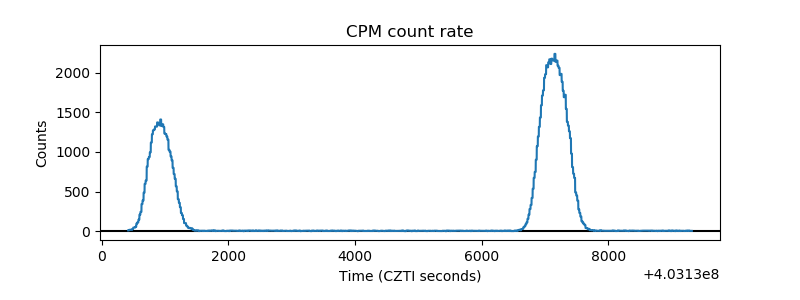

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

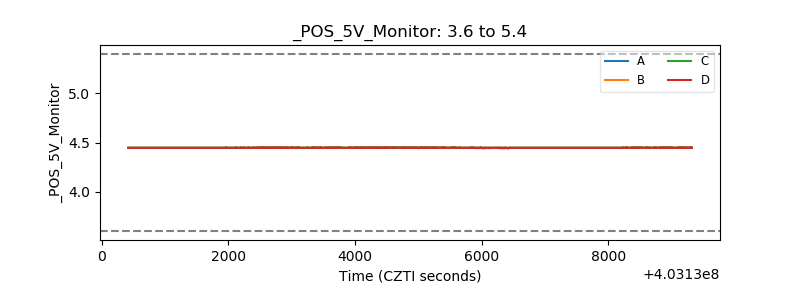

| +5 Volts monitor |  |
| _ROLL_ROT |  |

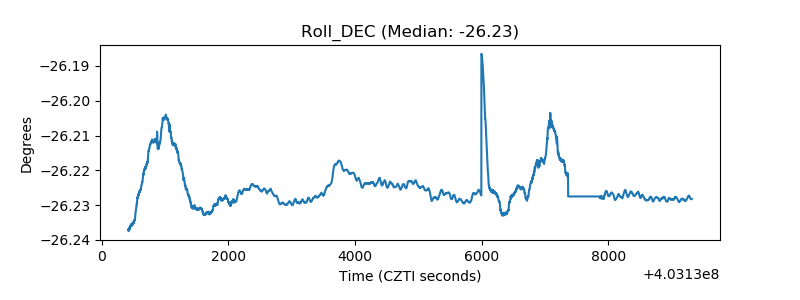

| _Roll_DEC |  |
| _Roll_RA |  |

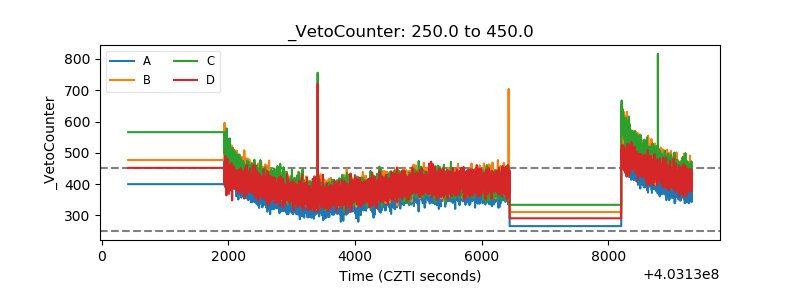

| Veto Counter |  |
