| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000005370_38196cztM0_level2.fits | modeM0/AS1A07_145T01_9000005370_38196cztM0_level2_quad_clean.evt |
| Size (bytes) | 338,057,280 | 91,206,720 |
| Size | 322.4 MB | 87.0 MB |
| Events in quadrant A | 2,733,203 | 619,303 |
| Events in quadrant B | 3,329,168 | 617,703 |
| Events in quadrant C | 2,998,142 | 594,411 |
| Events in quadrant D | 3,032,775 | 552,167 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11427 | 2 |
| B | 0 | 13476 | 1 |
| C | 0 | 12227 | 1 |
| D | 0 | 12515 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5400 | 9 | 0.166667% |
| B | 5400 | 147 | 2.722222% |
| C | 5400 | 69 | 1.277778% |
| D | 5400 | 86 | 1.592593% |

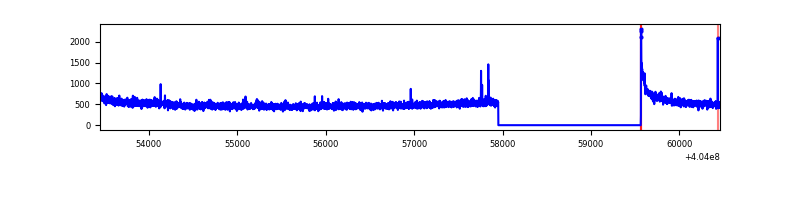

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7013 | 5401 | 4 | 4 | 0.06% | 0.07% |  |
| B | 7013 | 5401 | 124 | 124 | 1.77% | 2.30% |  |
| C | 7013 | 5401 | 54 | 54 | 0.77% | 1.00% |  |
| D | 7013 | 5401 | 80 | 80 | 1.14% | 1.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 341520 | 2777.24 | 603 | 590 | 122.8 |
| A | 12 | 189 | 28850 | 230.2 | 603 | 590 | 122.8 |
| A | 9 | 143 | 15758 | 123.56 | 603 | 590 | 122.8 |
| B | 5 | 184 | 761813 | 6586.89 | 598 | 582 | 115.6 |
| B | 0 | 229 | 76995 | 661.2 | 598 | 582 | 115.6 |
| B | 5 | 172 | 63171 | 541.58 | 598 | 582 | 115.6 |
| C | 14 | 254 | 347959 | 2511.67 | 590 | 593 | 138.3 |
| C | 15 | 214 | 222483 | 1604.4 | 590 | 593 | 138.3 |
| C | 12 | 249 | 58343 | 417.57 | 590 | 593 | 138.3 |
| D | 13 | 249 | 143325 | 992.83 | 590 | 575 | 143.8 |
| D | 10 | 118 | 137810 | 954.47 | 590 | 575 | 143.8 |
| D | 12 | 233 | 117631 | 814.13 | 590 | 575 | 143.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

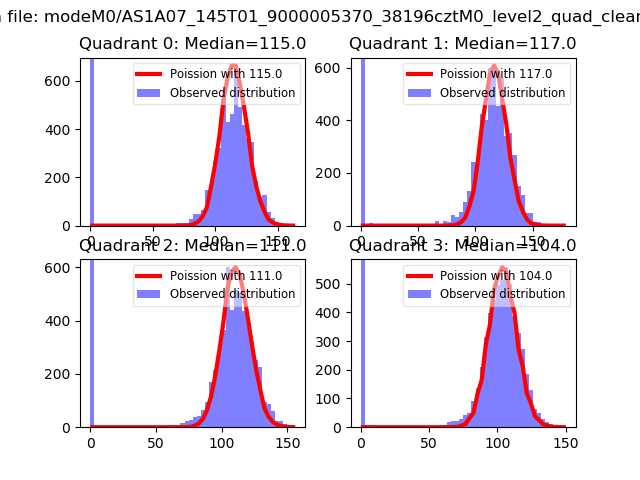

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

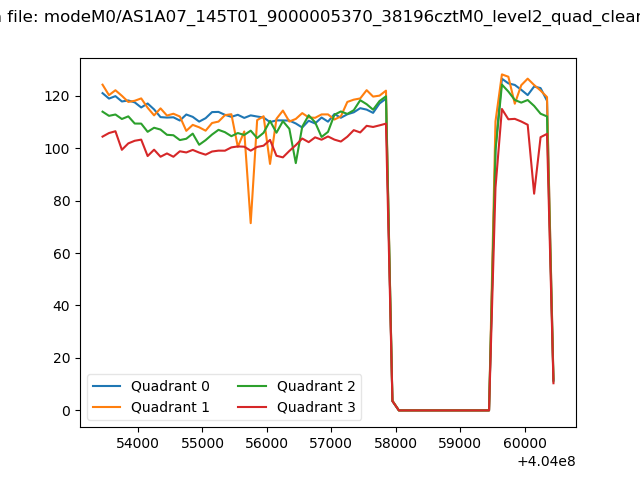

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

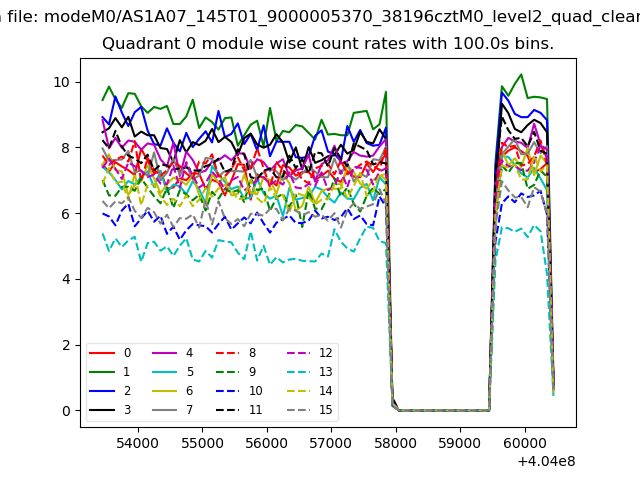

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

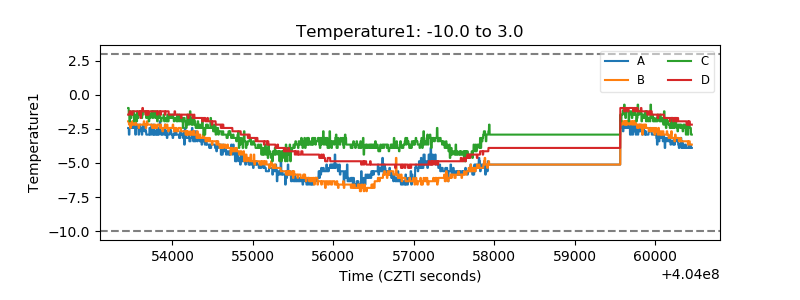

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

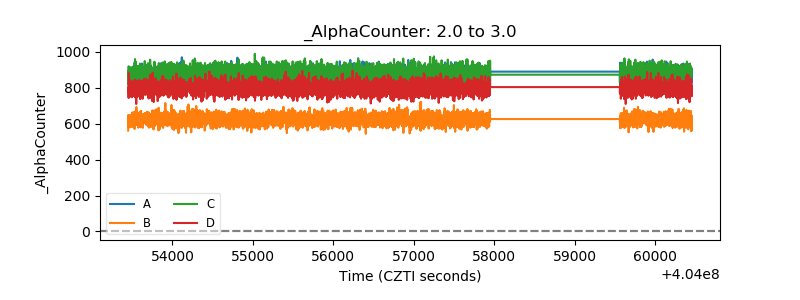

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
