| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000005370_38231cztM0_level2.fits | modeM0/AS1A07_145T01_9000005370_38231cztM0_level2_quad_clean.evt |
| Size (bytes) | 351,432,000 | 96,275,520 |
| Size | 335.2 MB | 91.8 MB |
| Events in quadrant A | 2,875,469 | 648,525 |
| Events in quadrant B | 2,887,419 | 670,389 |
| Events in quadrant C | 2,647,931 | 649,038 |
| Events in quadrant D | 4,196,488 | 586,341 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11637 | 3 |
| B | 0 | 11796 | 2 |
| C | 0 | 10857 | 2 |
| D | 0 | 16078 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5160 | 12 | 0.232558% |
| B | 5160 | 65 | 1.259690% |
| C | 5160 | 10 | 0.193798% |
| D | 5160 | 130 | 2.519380% |

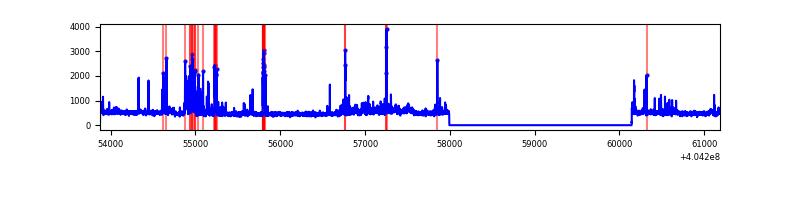

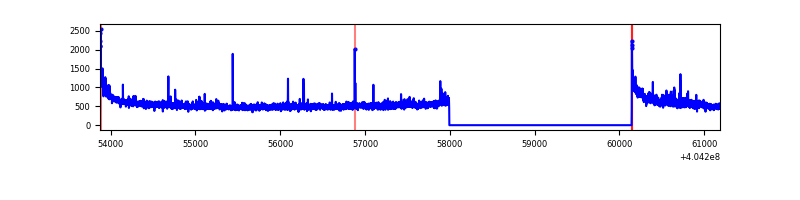

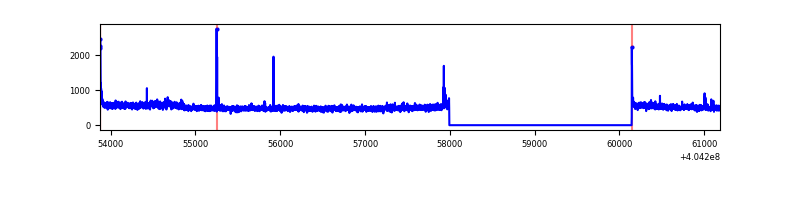

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7312 | 5161 | 9 | 9 | 0.12% | 0.17% |  |
| B | 7312 | 5161 | 39 | 39 | 0.53% | 0.76% |  |
| C | 7312 | 5161 | 5 | 5 | 0.07% | 0.10% |  |
| D | 7312 | 5161 | 118 | 118 | 1.61% | 2.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 362948 | 2986.85 | 605 | 595 | 121.3 |
| A | 12 | 16 | 61623 | 503.05 | 605 | 595 | 121.3 |
| A | 12 | 189 | 47914 | 390.05 | 605 | 595 | 121.3 |
| B | 5 | 172 | 458970 | 4031.87 | 608 | 592 | 113.7 |
| B | 0 | 229 | 16913 | 143.56 | 608 | 592 | 113.7 |
| B | 12 | 111 | 14033 | 118.23 | 608 | 592 | 113.7 |
| C | 15 | 214 | 215956 | 1553.82 | 601 | 607 | 138.6 |
| C | 1 | 23 | 33178 | 235.01 | 601 | 607 | 138.6 |
| C | 0 | 10 | 24483 | 172.27 | 601 | 607 | 138.6 |
| D | 10 | 203 | 1173293 | 8264.38 | 588 | 574 | 141.9 |
| D | 7 | 55 | 163739 | 1149.86 | 588 | 574 | 141.9 |
| D | 7 | 223 | 161263 | 1132.41 | 588 | 574 | 141.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

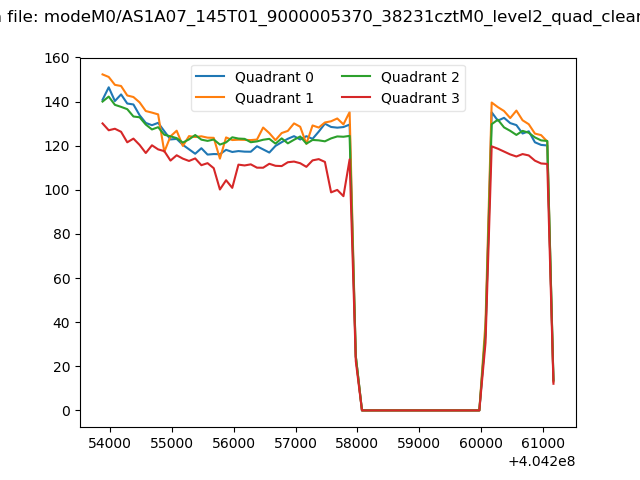

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

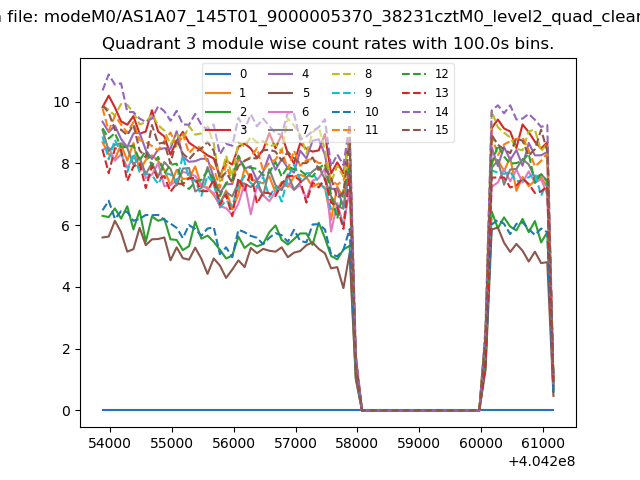

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

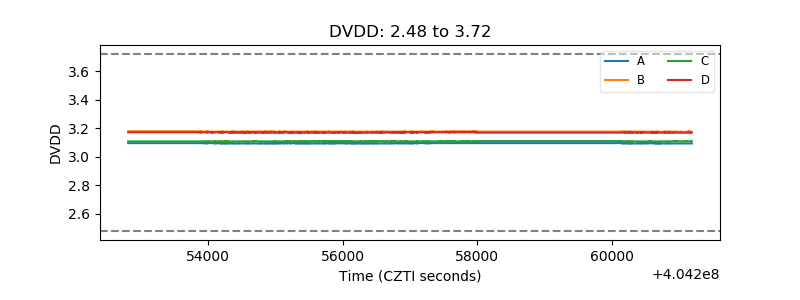

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

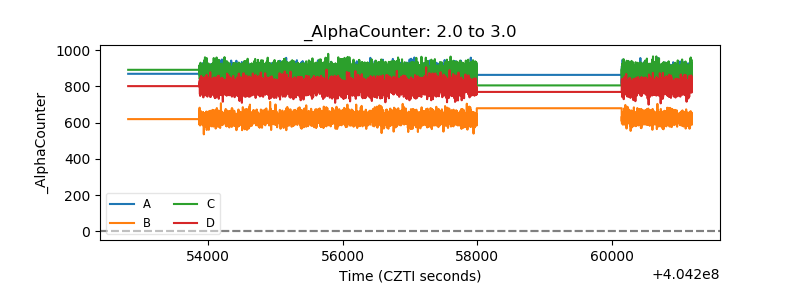

| Alpha Counter |  |

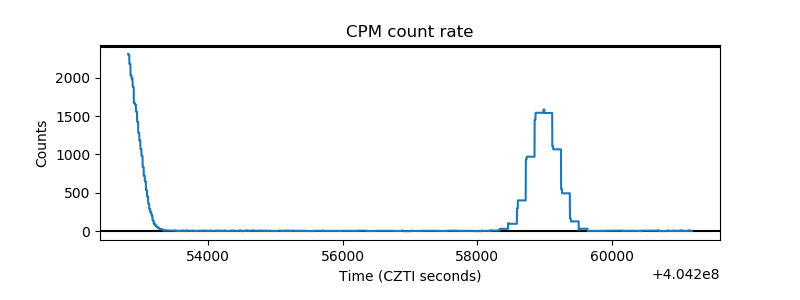

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
