| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_054T01_9000005392_38749cztM0_level2.fits | modeM0/AS1A12_054T01_9000005392_38749cztM0_level2_quad_clean.evt |
| Size (bytes) | 372,778,560 | 93,744,000 |
| Size | 355.5 MB | 89.4 MB |
| Events in quadrant A | 2,930,010 | 635,566 |
| Events in quadrant B | 3,273,680 | 652,160 |
| Events in quadrant C | 2,727,376 | 620,266 |
| Events in quadrant D | 4,453,072 | 557,293 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12097 | 2 |
| B | 0 | 13122 | 1 |
| C | 0 | 11430 | 1 |
| D | 0 | 17015 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5336 | 38 | 0.712144% |
| B | 5336 | 43 | 0.805847% |
| C | 5336 | 28 | 0.524738% |
| D | 5336 | 242 | 4.535232% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7158 | 5337 | 18 | 18 | 0.25% | 0.34% |  |
| B | 7158 | 5337 | 18 | 18 | 0.25% | 0.34% |  |
| C | 7158 | 5337 | 15 | 15 | 0.21% | 0.28% |  |
| D | 7158 | 5337 | 201 | 201 | 2.81% | 3.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 397712 | 3230.01 | 609 | 598 | 122.9 |
| A | 9 | 143 | 83691 | 675.85 | 609 | 598 | 122.9 |
| A | 13 | 248 | 68539 | 552.61 | 609 | 598 | 122.9 |
| B | 5 | 200 | 566690 | 4780.16 | 610 | 594 | 118.4 |
| B | 5 | 184 | 170583 | 1435.4 | 610 | 594 | 118.4 |
| B | 4 | 171 | 112584 | 945.65 | 610 | 594 | 118.4 |
| C | 15 | 214 | 236335 | 1687.51 | 597 | 601 | 139.7 |
| C | 0 | 10 | 85758 | 609.6 | 597 | 601 | 139.7 |
| C | 14 | 254 | 46237 | 326.69 | 597 | 601 | 139.7 |
| D | 2 | 16 | 996377 | 6996.96 | 583 | 567 | 142.3 |
| D | 12 | 235 | 529103 | 3713.71 | 583 | 567 | 142.3 |
| D | 10 | 118 | 249174 | 1746.81 | 583 | 567 | 142.3 |

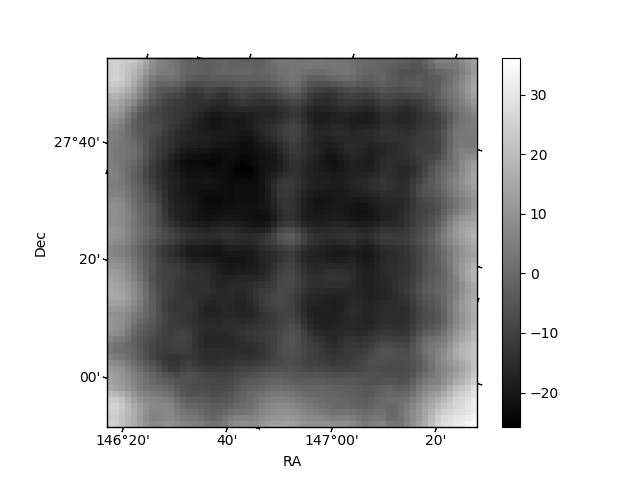

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

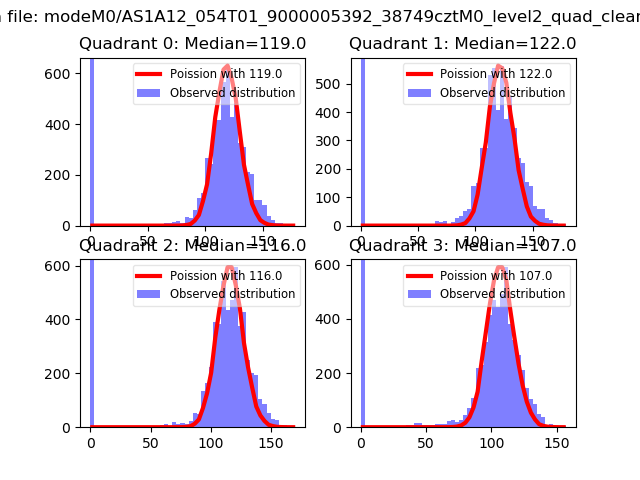

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

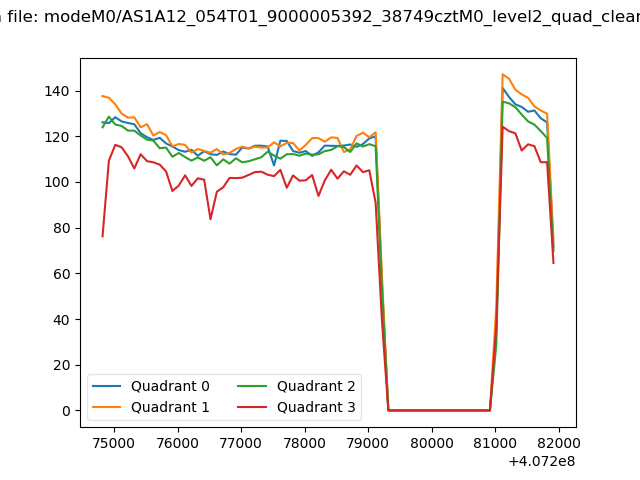

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

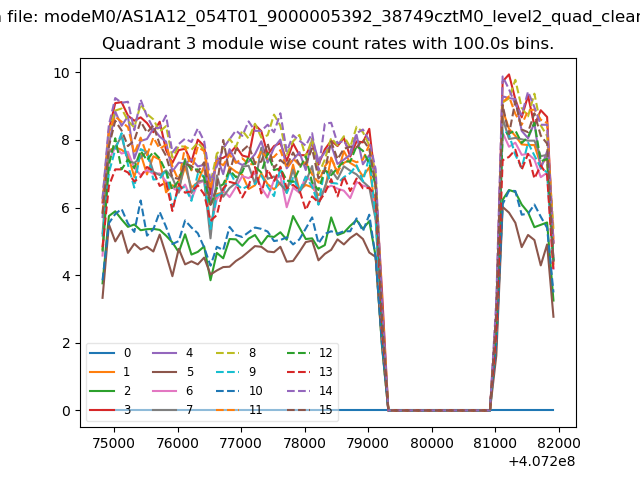

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

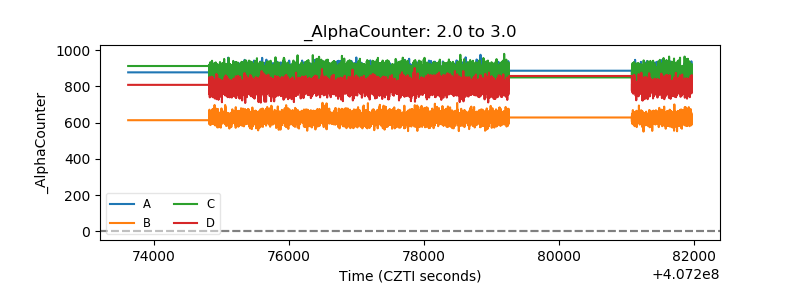

| Alpha Counter |  |

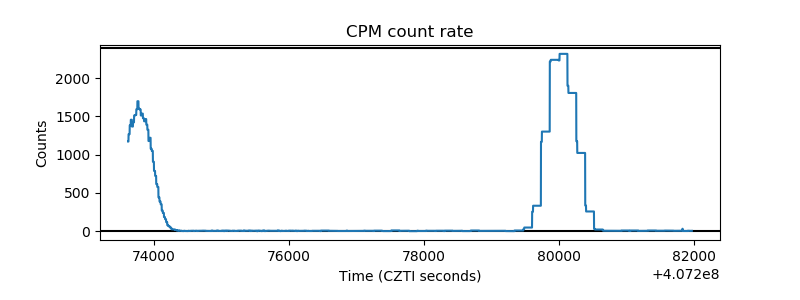

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

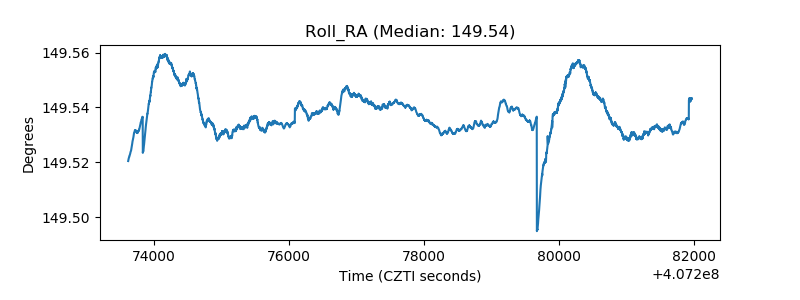

| _Roll_RA |  |

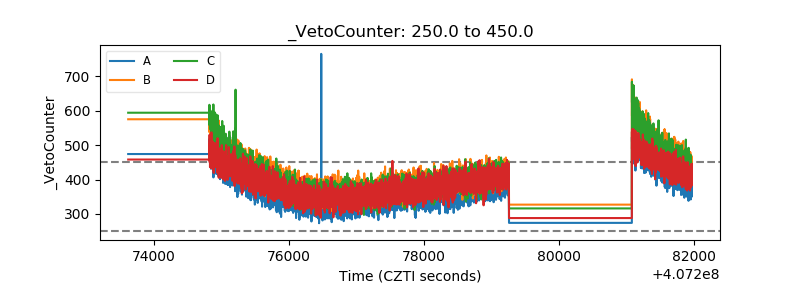

| Veto Counter |  |
