| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_051T01_9000005394_38763cztM0_level2.fits | modeM0/AS1A12_051T01_9000005394_38763cztM0_level2_quad_clean.evt |
| Size (bytes) | 316,537,920 | 92,128,320 |
| Size | 301.9 MB | 87.9 MB |
| Events in quadrant A | 2,946,801 | 622,711 |
| Events in quadrant B | 2,480,006 | 646,028 |
| Events in quadrant C | 2,685,829 | 598,531 |
| Events in quadrant D | 3,184,093 | 544,817 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12229 | 3 |
| B | 0 | 10931 | 2 |
| C | 0 | 11375 | 2 |
| D | 0 | 13269 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5393 | 53 | 0.982755% |
| B | 5393 | 11 | 0.203968% |
| C | 5393 | 29 | 0.537734% |
| D | 5393 | 141 | 2.614500% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7156 | 5394 | 37 | 37 | 0.52% | 0.69% |  |
| B | 7156 | 5394 | 3 | 3 | 0.04% | 0.06% |  |
| C | 7156 | 5394 | 22 | 22 | 0.31% | 0.41% |  |
| D | 7156 | 5394 | 126 | 126 | 1.76% | 2.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 384625 | 3181.1 | 599 | 589 | 120.7 |
| A | 13 | 248 | 135642 | 1118.69 | 599 | 589 | 120.7 |
| A | 15 | 223 | 67229 | 552.0 | 599 | 589 | 120.7 |
| B | 5 | 200 | 36127 | 303.47 | 603 | 587 | 117.1 |
| B | 4 | 171 | 35169 | 295.29 | 603 | 587 | 117.1 |
| B | 0 | 190 | 21169 | 175.74 | 603 | 587 | 117.1 |
| C | 15 | 214 | 238795 | 1736.63 | 585 | 588 | 137.2 |
| C | 0 | 10 | 68088 | 492.1 | 585 | 588 | 137.2 |
| C | 15 | 208 | 65563 | 473.7 | 585 | 588 | 137.2 |
| D | 2 | 16 | 437639 | 3133.41 | 574 | 559 | 139.5 |
| D | 5 | 222 | 249809 | 1786.87 | 574 | 559 | 139.5 |
| D | 12 | 227 | 178499 | 1275.65 | 574 | 559 | 139.5 |

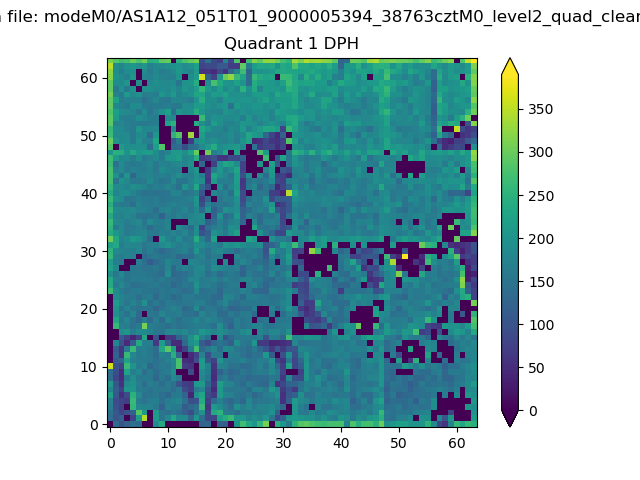

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

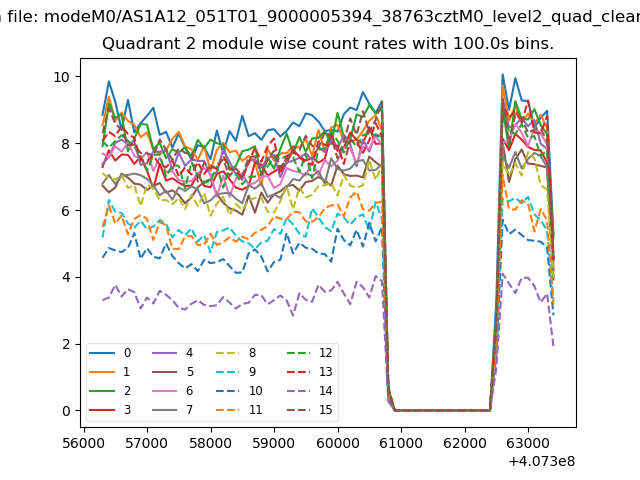

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

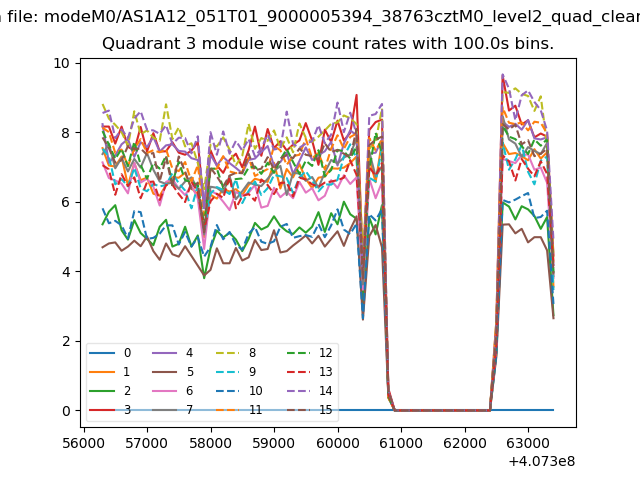

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

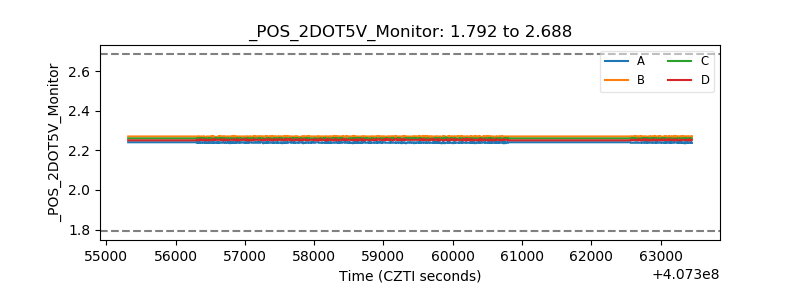

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

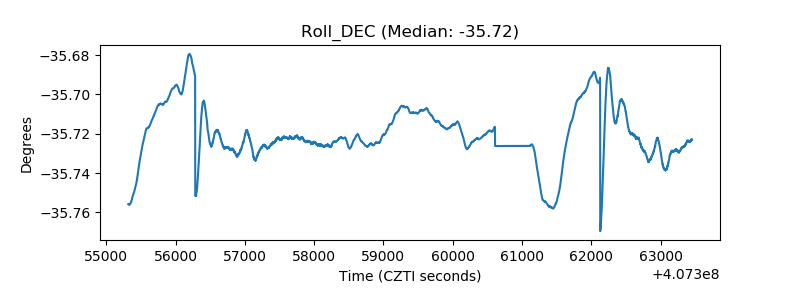

| _Roll_DEC |  |

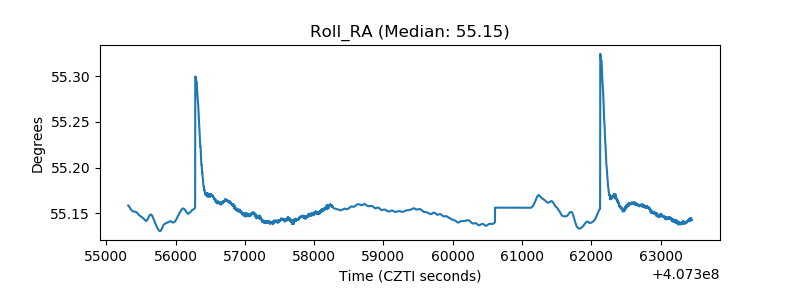

| _Roll_RA |  |
| Veto Counter |  |
