| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_051T01_9000005394_38784cztM0_level2.fits | modeM0/AS1A12_051T01_9000005394_38784cztM0_level2_quad_clean.evt |
| Size (bytes) | 382,930,560 | 88,335,360 |
| Size | 365.2 MB | 84.2 MB |
| Events in quadrant A | 2,795,694 | 607,918 |
| Events in quadrant B | 4,910,181 | 546,574 |
| Events in quadrant C | 2,599,459 | 596,581 |
| Events in quadrant D | 3,446,756 | 543,736 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11588 | 3 |
| B | 0 | 18255 | 2 |
| C | 0 | 11018 | 2 |
| D | 0 | 13688 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5431 | 15 | 0.276192% |
| B | 5431 | 851 | 15.669306% |
| C | 5431 | 9 | 0.165715% |
| D | 5431 | 108 | 1.988584% |

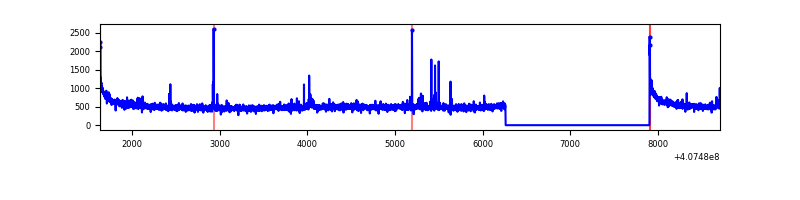

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7074 | 5432 | 6 | 6 | 0.08% | 0.11% |  |
| B | 7074 | 5432 | 582 | 582 | 8.23% | 10.71% |  |
| C | 7074 | 5432 | 4 | 4 | 0.06% | 0.07% |  |
| D | 7074 | 5432 | 87 | 87 | 1.23% | 1.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 394983 | 3209.14 | 602 | 590 | 122.9 |
| A | 9 | 143 | 26577 | 211.45 | 602 | 590 | 122.9 |
| A | 13 | 248 | 20177 | 159.38 | 602 | 590 | 122.9 |
| B | 4 | 171 | 2626575 | 24013.15 | 566 | 552 | 109.4 |
| B | 4 | 251 | 17620 | 156.07 | 566 | 552 | 109.4 |
| B | 5 | 172 | 17525 | 155.21 | 566 | 552 | 109.4 |
| C | 15 | 214 | 241800 | 1728.36 | 594 | 597 | 139.6 |
| C | 0 | 10 | 18935 | 131.4 | 594 | 597 | 139.6 |
| C | 0 | 239 | 13343 | 91.33 | 594 | 597 | 139.6 |
| D | 5 | 222 | 434993 | 3055.91 | 585 | 568 | 142.2 |
| D | 2 | 16 | 271079 | 1902.88 | 585 | 568 | 142.2 |
| D | 2 | 249 | 183481 | 1286.68 | 585 | 568 | 142.2 |

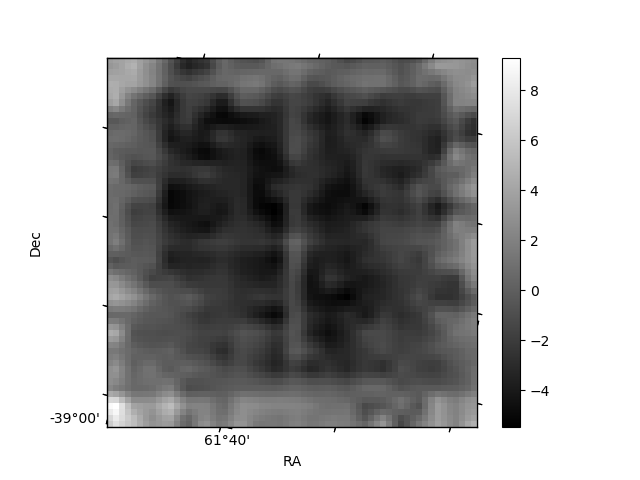

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

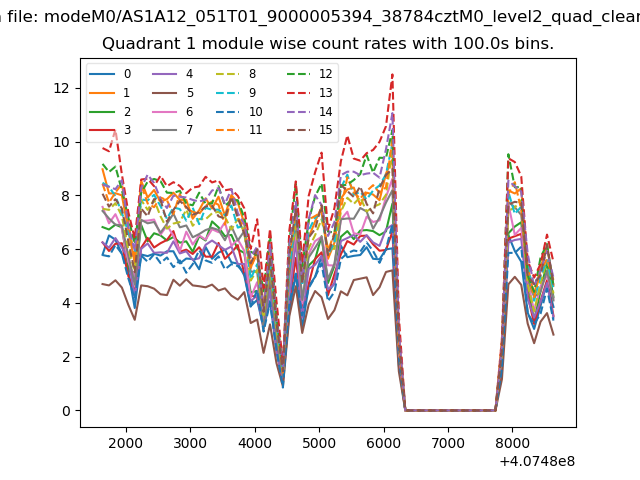

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

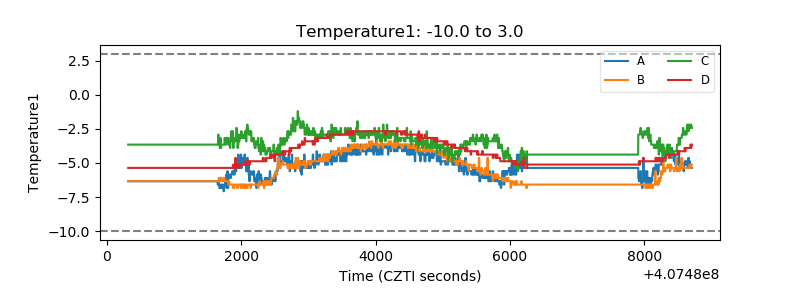

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

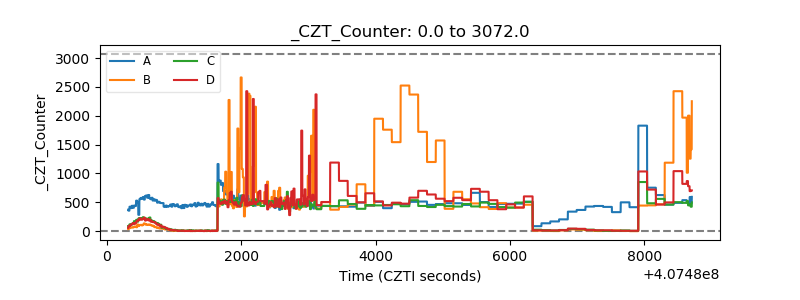

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

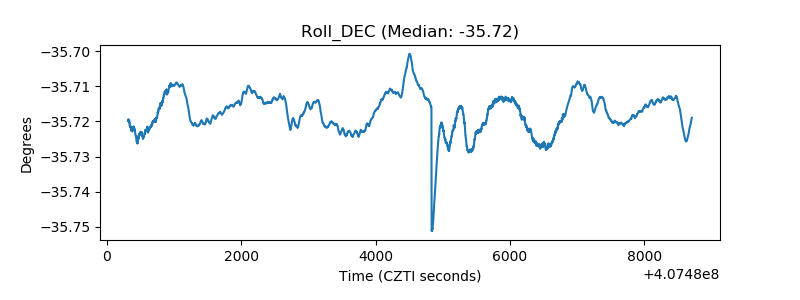

| _Roll_DEC |  |

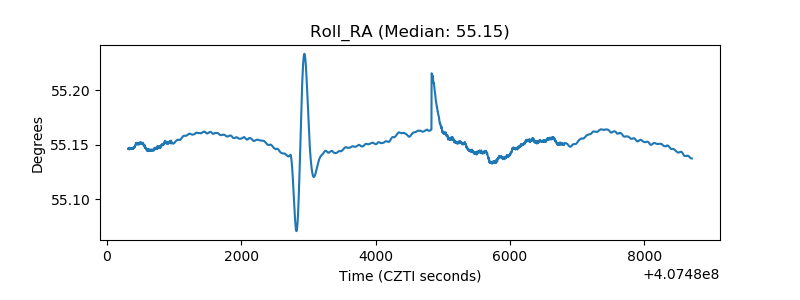

| _Roll_RA |  |

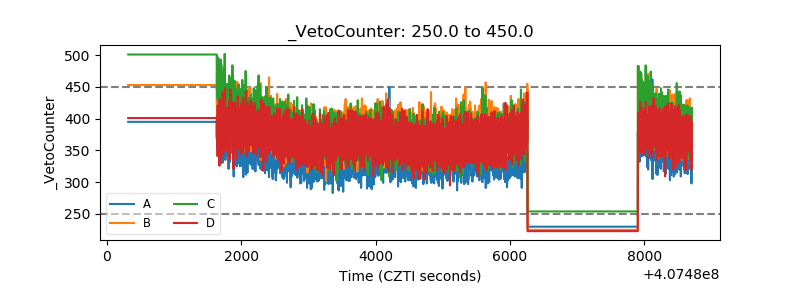

| Veto Counter |  |
