| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_064T01_9000005416_38944cztM0_level2.fits | modeM0/AS1T05_064T01_9000005416_38944cztM0_level2_quad_clean.evt |
| Size (bytes) | 382,970,880 | 99,688,320 |
| Size | 365.2 MB | 95.1 MB |
| Events in quadrant A | 3,342,016 | 660,959 |
| Events in quadrant B | 2,837,345 | 679,605 |
| Events in quadrant C | 2,830,333 | 660,275 |
| Events in quadrant D | 4,700,094 | 598,709 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13675 | 3 |
| B | 0 | 12613 | 2 |
| C | 0 | 12215 | 2 |
| D | 0 | 18011 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5998 | 60 | 1.000333% |
| B | 5998 | 31 | 0.516839% |
| C | 5998 | 12 | 0.200067% |
| D | 5998 | 179 | 2.984328% |

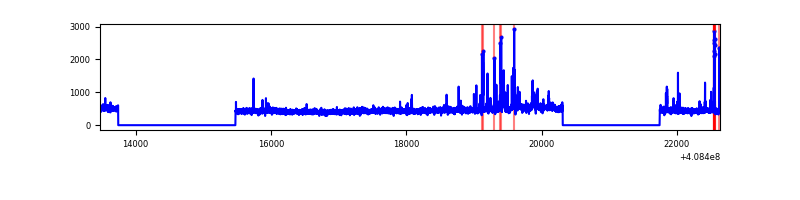

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

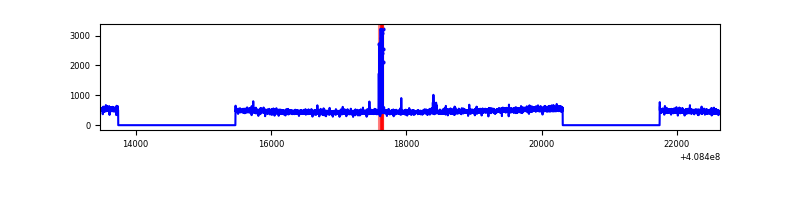

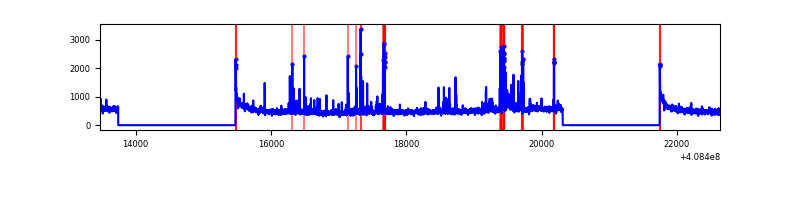

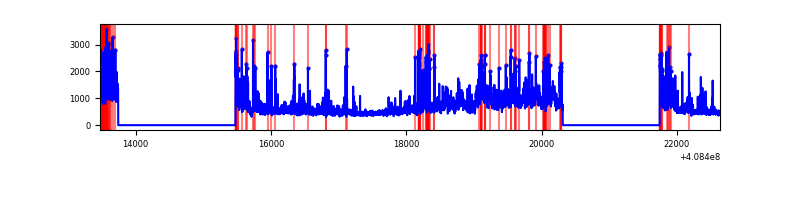

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9164 | 6000 | 51 | 51 | 0.56% | 0.85% |  |
| B | 9164 | 6000 | 15 | 15 | 0.16% | 0.25% |  |
| C | 9164 | 6000 | 9 | 9 | 0.10% | 0.15% |  |
| D | 9164 | 6000 | 175 | 175 | 1.91% | 2.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 456685 | 3428.68 | 658 | 645 | 133.0 |
| A | 15 | 222 | 242534 | 1818.61 | 658 | 645 | 133.0 |
| A | 13 | 248 | 83421 | 622.34 | 658 | 645 | 133.0 |
| B | 5 | 172 | 175844 | 1390.24 | 656 | 636 | 126.0 |
| B | 0 | 156 | 20795 | 159.96 | 656 | 636 | 126.0 |
| B | 0 | 230 | 18932 | 145.17 | 656 | 636 | 126.0 |
| C | 15 | 214 | 246423 | 1627.32 | 648 | 650 | 151.0 |
| C | 14 | 254 | 45001 | 293.66 | 648 | 650 | 151.0 |
| C | 0 | 239 | 8391 | 51.26 | 648 | 650 | 151.0 |
| D | 12 | 235 | 856540 | 5516.37 | 639 | 620 | 155.2 |
| D | 12 | 227 | 463779 | 2985.04 | 639 | 620 | 155.2 |
| D | 2 | 16 | 200145 | 1285.93 | 639 | 620 | 155.2 |

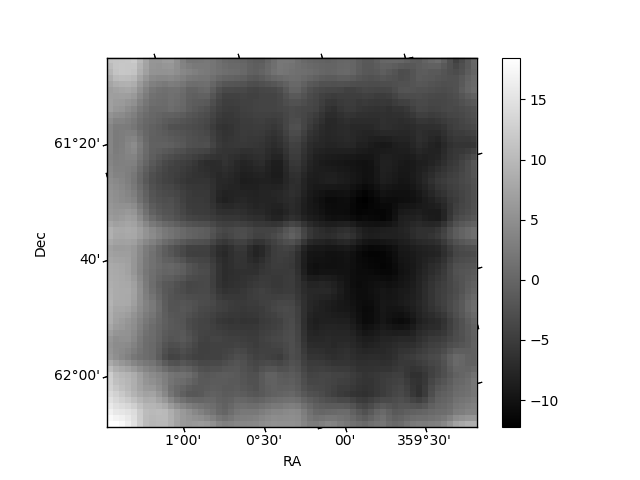

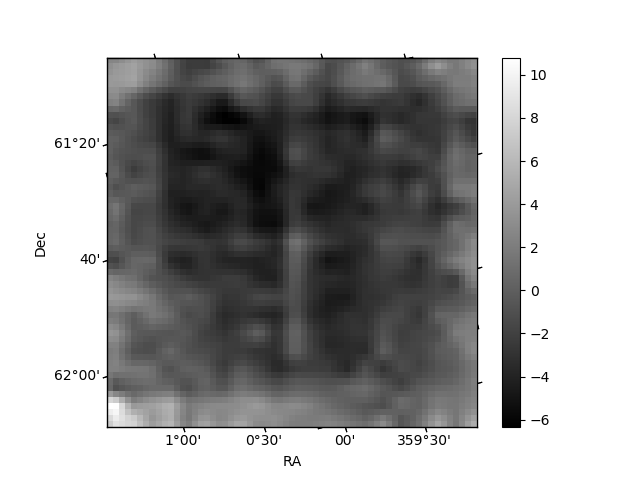

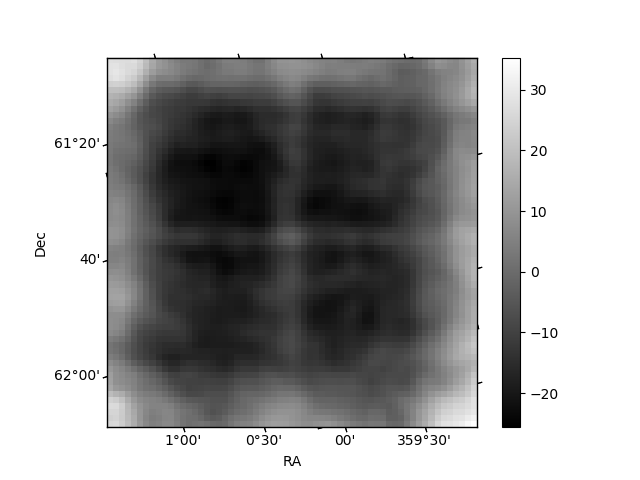

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

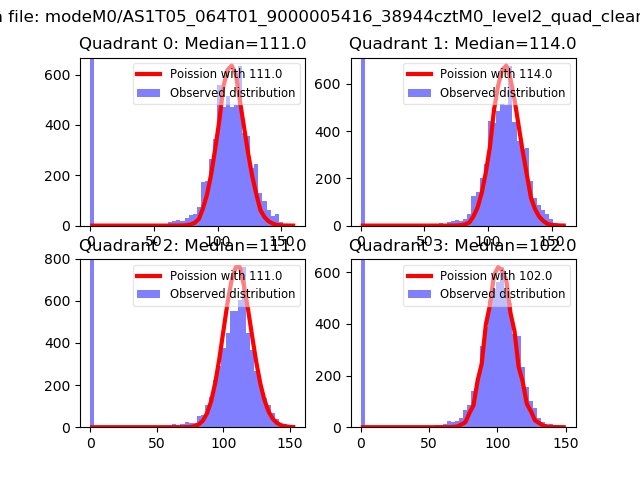

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

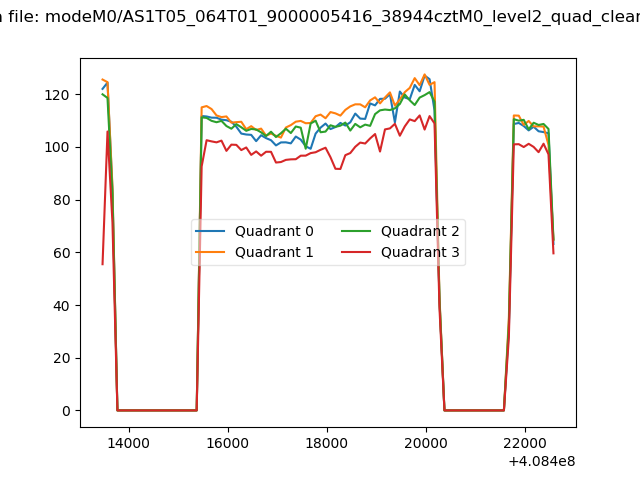

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

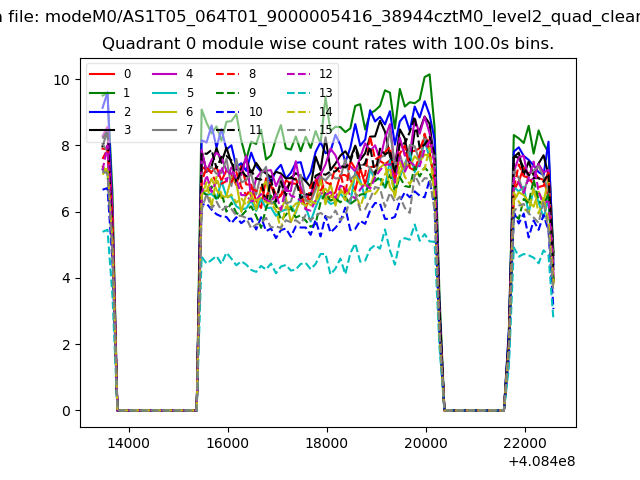

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

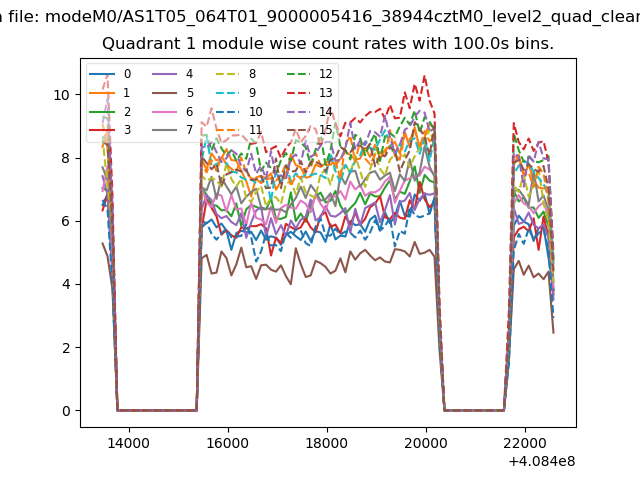

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

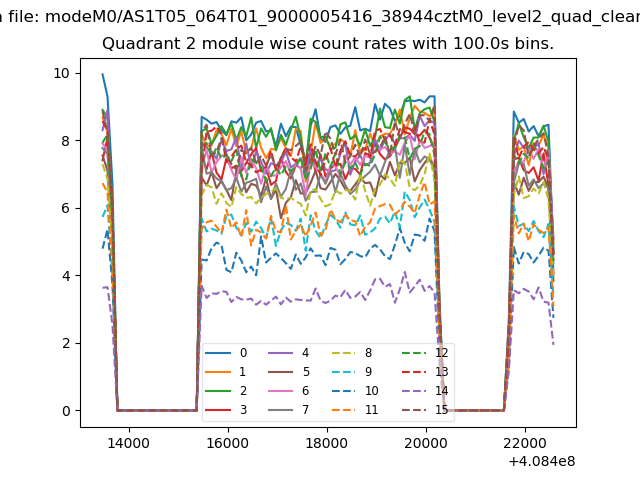

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

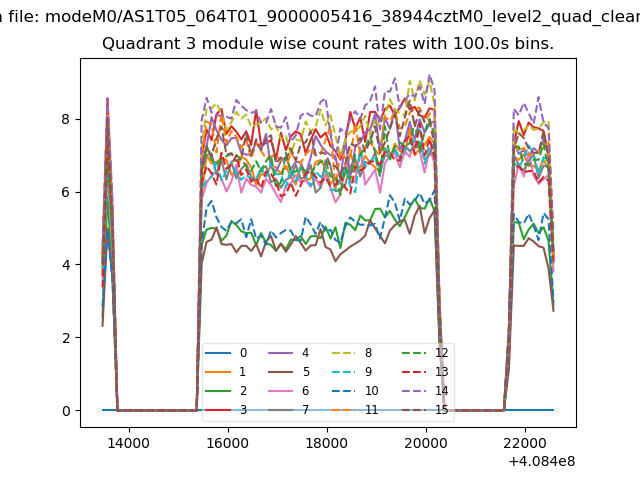

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

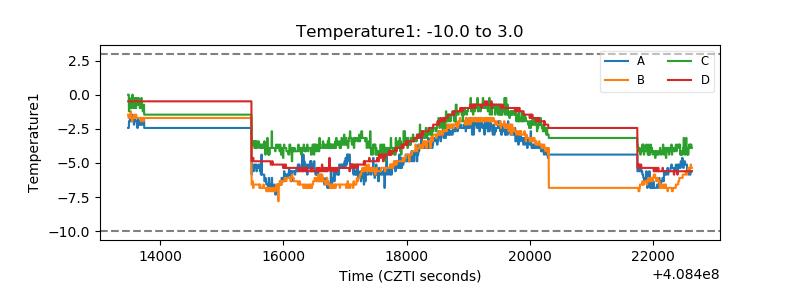

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

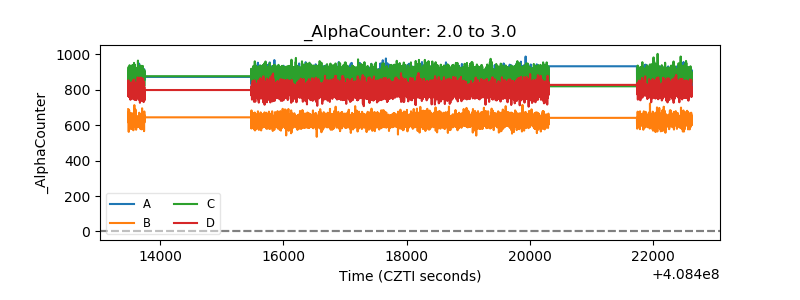

| Alpha Counter |  |

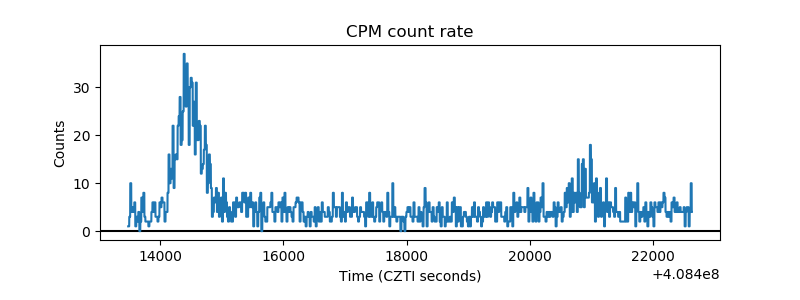

| _CPM_Rate |  |

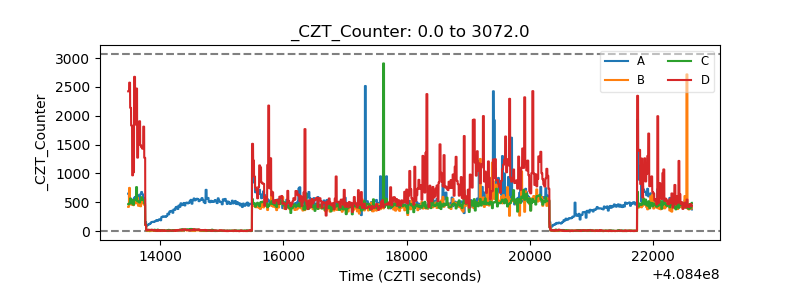

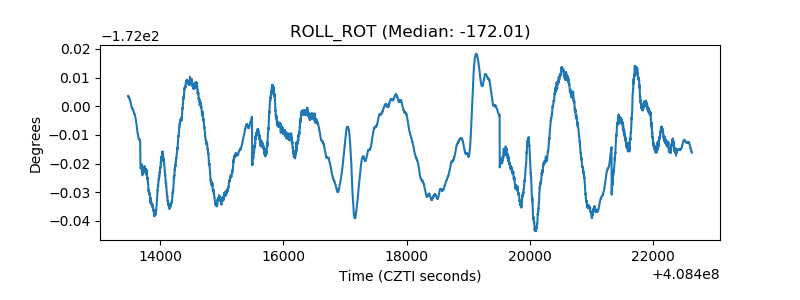

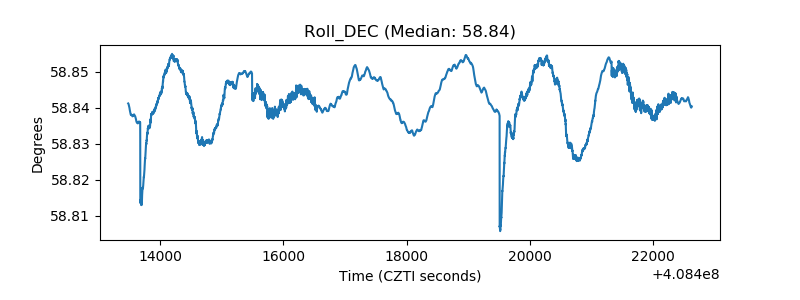

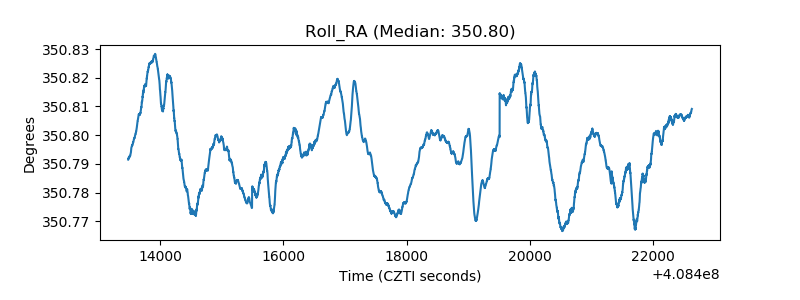

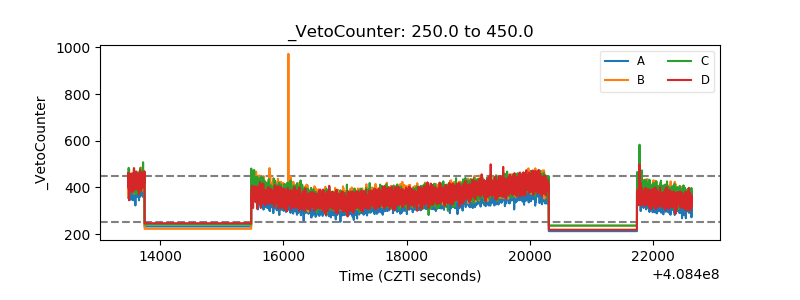

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
