| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T02_9000005426_39022cztM0_level2.fits | modeM0/AS1C07_001T02_9000005426_39022cztM0_level2_quad_clean.evt |
| Size (bytes) | 318,574,080 | 91,569,600 |
| Size | 303.8 MB | 87.3 MB |
| Events in quadrant A | 2,983,937 | 619,040 |
| Events in quadrant B | 2,485,708 | 630,979 |
| Events in quadrant C | 2,553,594 | 597,773 |
| Events in quadrant D | 3,344,520 | 543,653 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12186 | 3 |
| B | 0 | 11183 | 2 |
| C | 0 | 10968 | 2 |
| D | 0 | 13416 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5451 | 28 | 0.513667% |
| B | 5451 | 27 | 0.495322% |
| C | 5451 | 3 | 0.055036% |
| D | 5451 | 143 | 2.623372% |

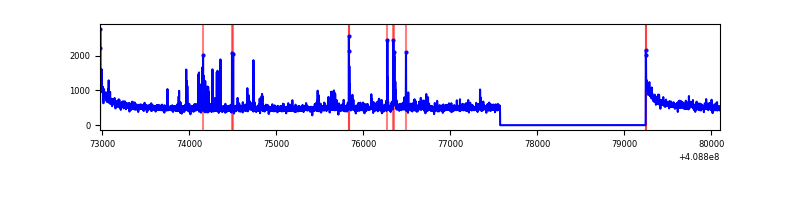

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7123 | 5451 | 13 | 13 | 0.18% | 0.24% |  |
| B | 7123 | 5450 | 15 | 15 | 0.21% | 0.28% |  |
| C | 7123 | 5450 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7123 | 5450 | 141 | 141 | 1.98% | 2.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 411073 | 3329.03 | 606 | 595 | 123.3 |
| A | 6 | 10 | 110469 | 891.09 | 606 | 595 | 123.3 |
| A | 12 | 16 | 45702 | 365.82 | 606 | 595 | 123.3 |
| B | 5 | 172 | 99069 | 850.42 | 597 | 581 | 115.8 |
| B | 0 | 230 | 32436 | 275.06 | 597 | 581 | 115.8 |
| B | 12 | 111 | 14405 | 119.37 | 597 | 581 | 115.8 |
| C | 15 | 214 | 230318 | 1685.36 | 586 | 589 | 136.3 |
| C | 1 | 128 | 14138 | 99.4 | 586 | 589 | 136.3 |
| C | 3 | 233 | 9178 | 63.01 | 586 | 589 | 136.3 |
| D | 12 | 227 | 612690 | 4375.12 | 581 | 563 | 139.9 |
| D | 12 | 235 | 146823 | 1045.38 | 581 | 563 | 139.9 |
| D | 13 | 171 | 119268 | 848.43 | 581 | 563 | 139.9 |

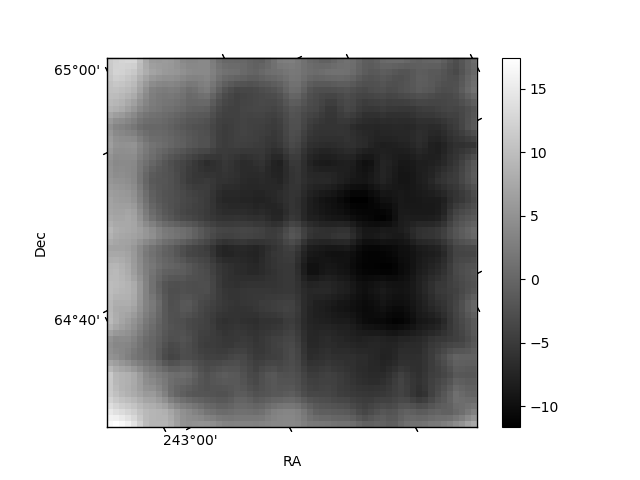

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

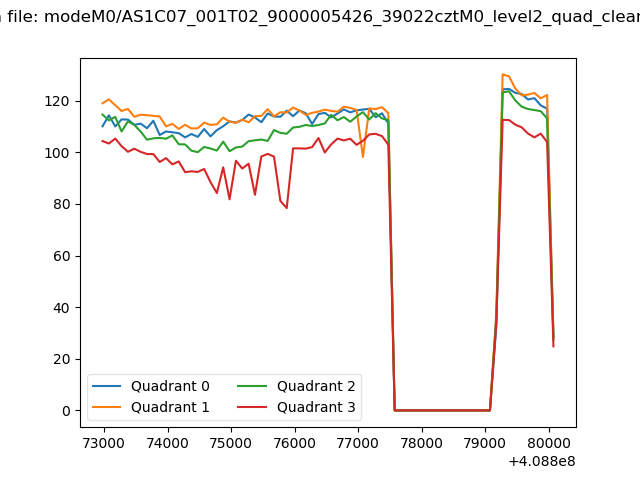

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

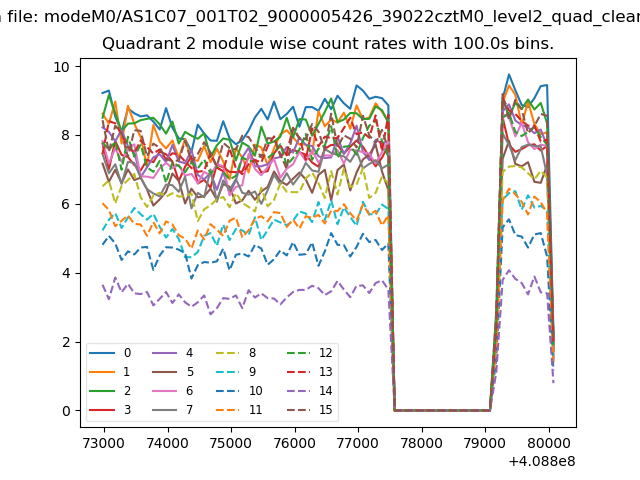

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

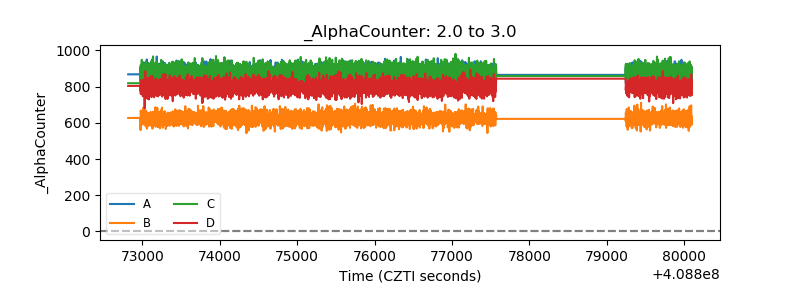

| Alpha Counter |  |

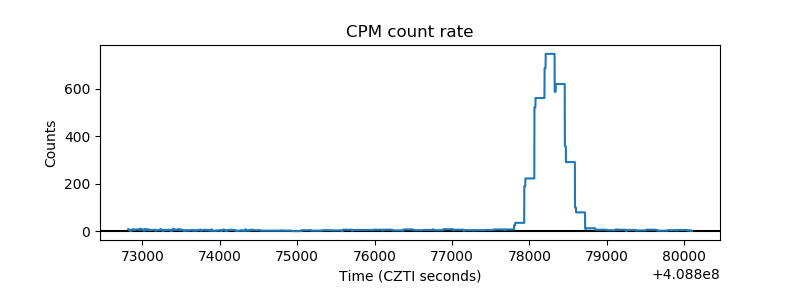

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

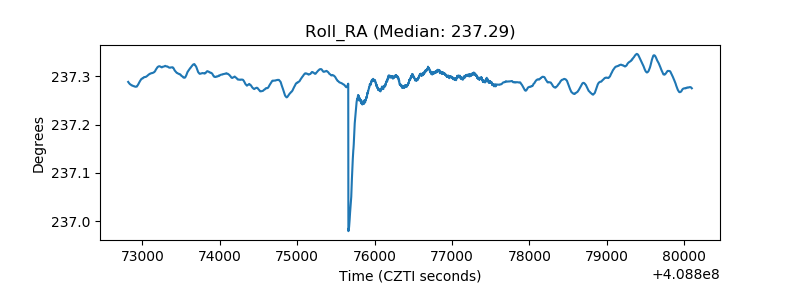

| _Roll_RA |  |
| Veto Counter |  |
