| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_067T01_9000005432_39105cztM0_level2.fits | modeM0/AS1T05_067T01_9000005432_39105cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,649,600 | 108,279,360 |
| Size | 526.1 MB | 103.3 MB |
| Events in quadrant A | 6,043,035 | 742,031 |
| Events in quadrant B | 3,042,726 | 762,512 |
| Events in quadrant C | 4,257,884 | 702,173 |
| Events in quadrant D | 6,561,577 | 608,446 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22473 | 3 |
| B | 0 | 13497 | 2 |
| C | 0 | 16850 | 2 |
| D | 0 | 24099 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6650 | 128 | 1.924812% |
| B | 6650 | 10 | 0.150376% |
| C | 6650 | 171 | 2.571429% |
| D | 6650 | 727 | 10.932331% |

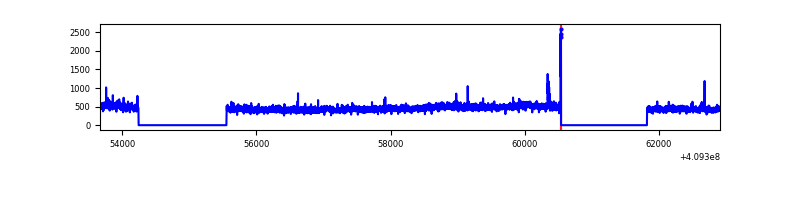

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9244 | 6652 | 42 | 42 | 0.45% | 0.63% |  |
| B | 9244 | 6652 | 3 | 3 | 0.03% | 0.05% |  |
| C | 9244 | 6652 | 139 | 139 | 1.50% | 2.09% |  |
| D | 9244 | 6652 | 598 | 598 | 6.47% | 8.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 1847472 | 12156.09 | 745 | 730 | 151.9 |
| A | 12 | 16 | 500508 | 3289.77 | 745 | 730 | 151.9 |
| A | 10 | 83 | 480055 | 3155.13 | 745 | 730 | 151.9 |
| B | 0 | 230 | 56012 | 385.72 | 744 | 724 | 143.3 |
| B | 12 | 111 | 18811 | 126.18 | 744 | 724 | 143.3 |
| B | 0 | 199 | 17945 | 120.14 | 744 | 724 | 143.3 |
| C | 15 | 208 | 703721 | 4180.71 | 721 | 728 | 168.2 |
| C | 9 | 187 | 450799 | 2676.58 | 721 | 728 | 168.2 |
| C | 15 | 214 | 276161 | 1638.0 | 721 | 728 | 168.2 |
| D | 9 | 49 | 2500541 | 14680.28 | 703 | 684 | 170.3 |
| D | 12 | 235 | 901371 | 5289.24 | 703 | 684 | 170.3 |
| D | 5 | 222 | 127563 | 745.09 | 703 | 684 | 170.3 |

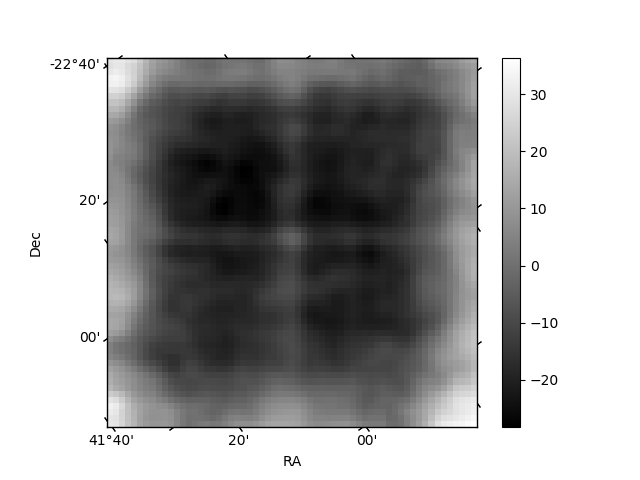

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

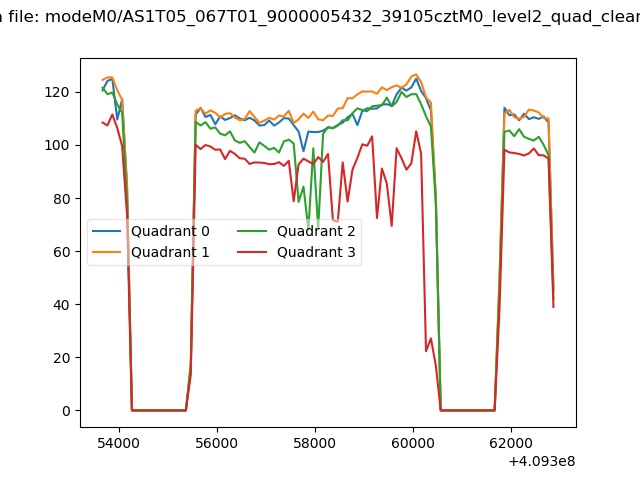

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

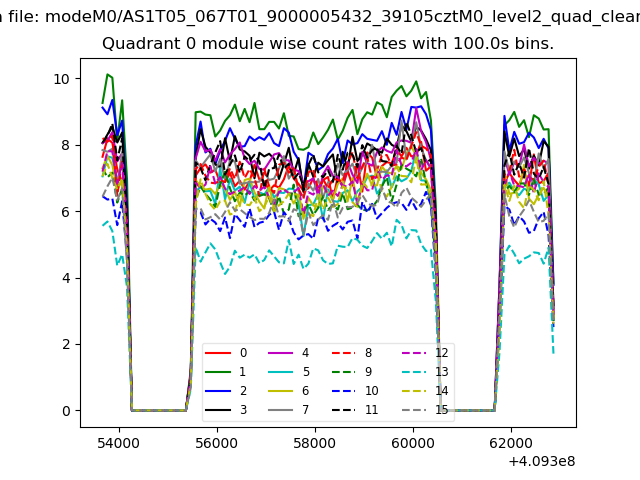

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

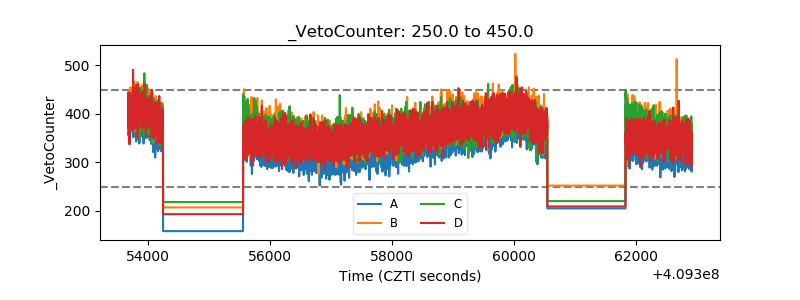

| Veto HV Monitor |  |
| Veto LLD |  |

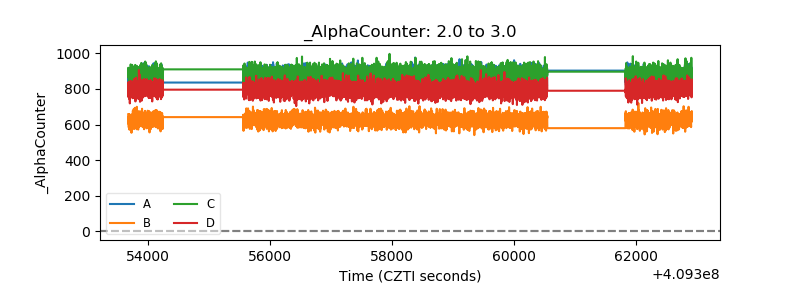

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

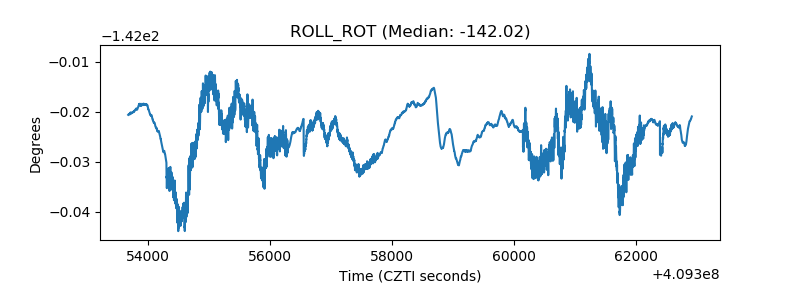

| _ROLL_ROT |  |

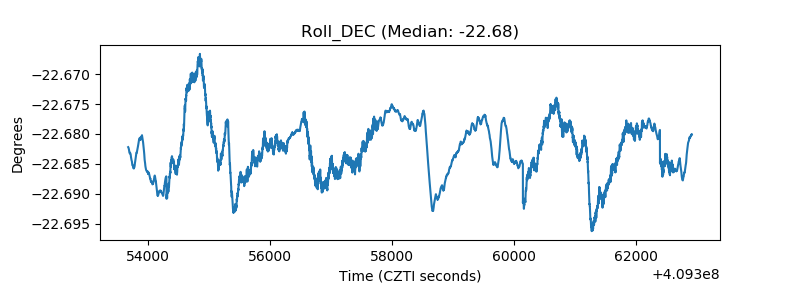

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
