| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_054T02_9000005444_39175cztM0_level2.fits | modeM0/AS1A12_054T02_9000005444_39175cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,735,360 | 89,159,040 |
| Size | 441.3 MB | 85.0 MB |
| Events in quadrant A | 3,063,450 | 627,864 |
| Events in quadrant B | 2,488,553 | 630,516 |
| Events in quadrant C | 2,553,762 | 597,022 |
| Events in quadrant D | 8,600,411 | 462,722 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12712 | 3 |
| B | 0 | 11218 | 2 |
| C | 0 | 11047 | 2 |
| D | 0 | 29373 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5445 | 48 | 0.881543% |
| B | 5445 | 16 | 0.293848% |
| C | 5445 | 8 | 0.146924% |
| D | 5445 | 1346 | 24.719927% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7089 | 5446 | 27 | 27 | 0.38% | 0.50% |  |
| B | 7089 | 5446 | 11 | 11 | 0.16% | 0.20% |  |
| C | 7089 | 5446 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7089 | 5446 | 1343 | 1343 | 18.94% | 24.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 440246 | 3578.0 | 600 | 588 | 122.9 |
| A | 13 | 248 | 188992 | 1533.26 | 600 | 588 | 122.9 |
| A | 9 | 143 | 97056 | 785.07 | 600 | 588 | 122.9 |
| B | 0 | 245 | 36610 | 314.93 | 595 | 578 | 114.4 |
| B | 5 | 172 | 36117 | 310.63 | 595 | 578 | 114.4 |
| B | 5 | 184 | 35981 | 309.44 | 595 | 578 | 114.4 |
| C | 15 | 214 | 227901 | 1681.24 | 584 | 589 | 135.2 |
| C | 3 | 233 | 16095 | 114.68 | 584 | 589 | 135.2 |
| C | 9 | 187 | 15645 | 111.36 | 584 | 589 | 135.2 |
| D | 12 | 235 | 4987586 | 37028.62 | 542 | 526 | 134.7 |
| D | 2 | 249 | 670564 | 4974.99 | 542 | 526 | 134.7 |
| D | 12 | 227 | 475755 | 3528.55 | 542 | 526 | 134.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

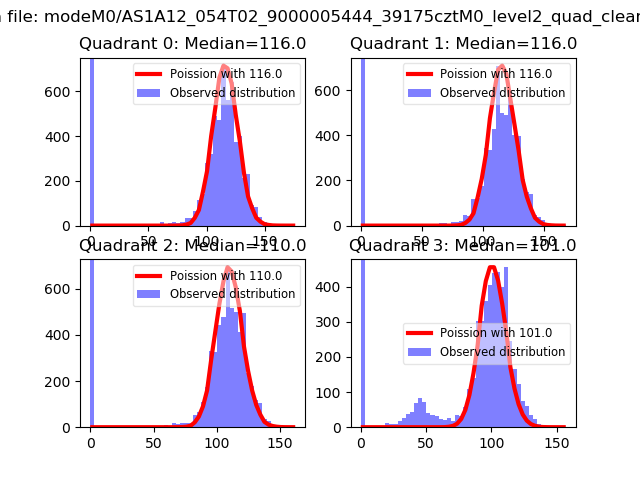

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

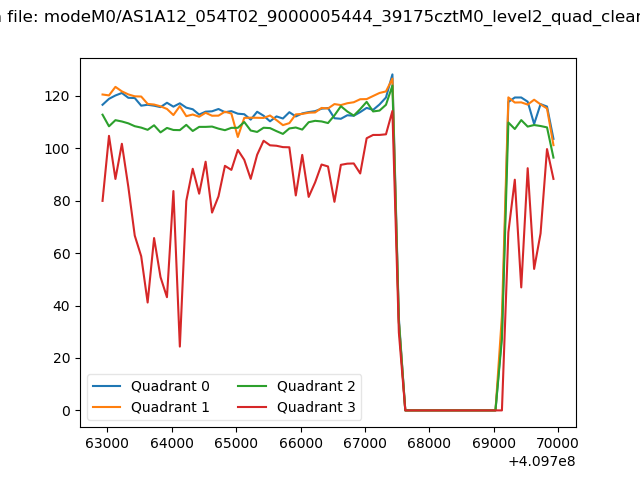

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

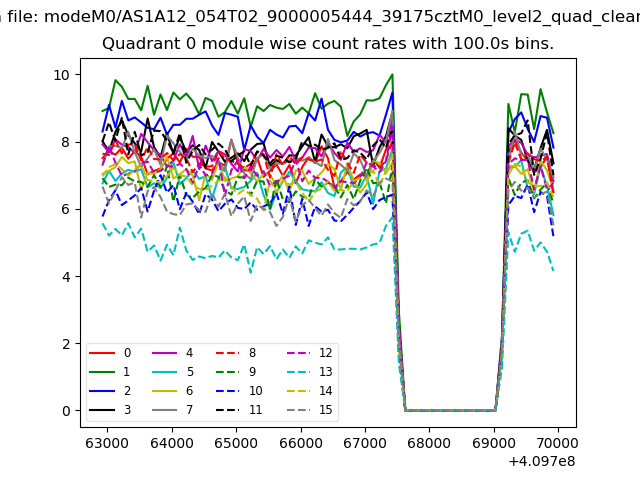

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

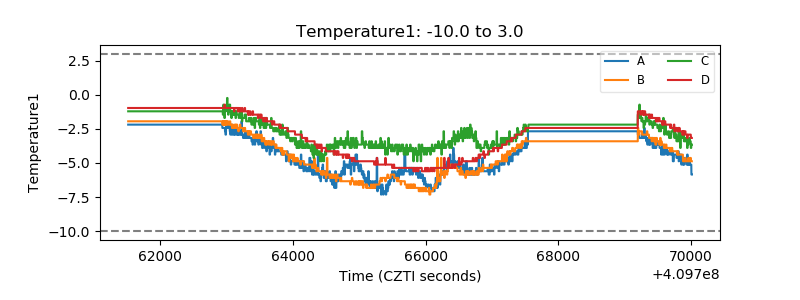

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

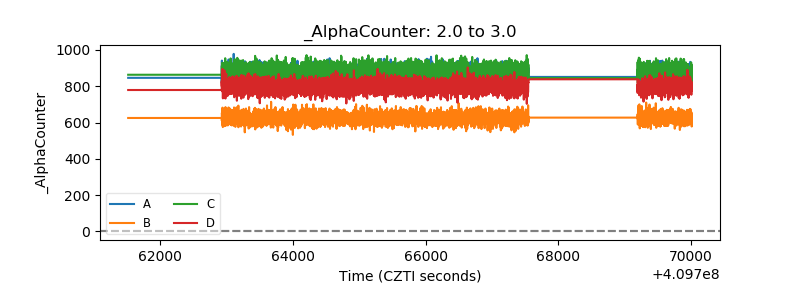

| Alpha Counter |  |

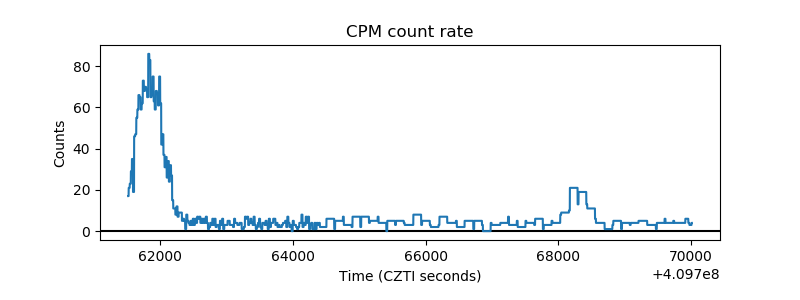

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

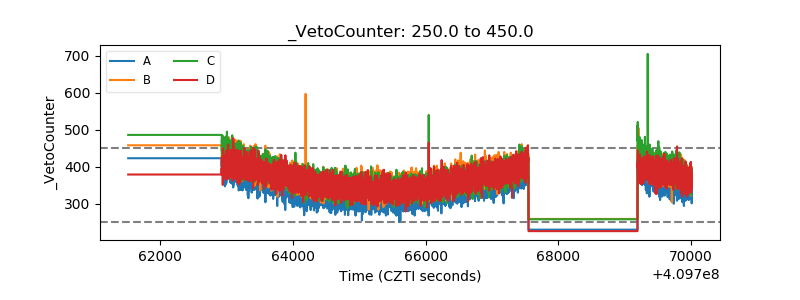

| Veto Counter |  |
