| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_037T01_9000005456_39274cztM0_level2.fits | modeM0/AS1A12_037T01_9000005456_39274cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,794,240 | 84,536,640 |
| Size | 439.4 MB | 80.6 MB |
| Events in quadrant A | 3,715,205 | 589,731 |
| Events in quadrant B | 2,695,310 | 622,478 |
| Events in quadrant C | 2,493,955 | 595,346 |
| Events in quadrant D | 7,772,771 | 409,101 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13984 | 2 |
| B | 0 | 10879 | 1 |
| C | 0 | 9949 | 1 |
| D | 0 | 26508 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4890 | 248 | 5.071575% |
| B | 4890 | 72 | 1.472393% |
| C | 4890 | 5 | 0.102249% |
| D | 4890 | 1568 | 32.065440% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7012 | 4891 | 216 | 216 | 3.08% | 4.42% |  |
| B | 7012 | 4891 | 39 | 39 | 0.56% | 0.80% |  |
| C | 7012 | 4891 | 3 | 3 | 0.04% | 0.06% |  |
| D | 7012 | 4891 | 1491 | 1491 | 21.26% | 30.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 1077942 | 9028.21 | 586 | 574 | 119.3 |
| A | 10 | 83 | 360599 | 3016.96 | 586 | 574 | 119.3 |
| A | 13 | 248 | 16222 | 131.13 | 586 | 574 | 119.3 |
| B | 5 | 184 | 206387 | 1836.56 | 581 | 565 | 112.1 |
| B | 5 | 172 | 116021 | 1030.22 | 581 | 565 | 112.1 |
| B | 0 | 190 | 37361 | 328.33 | 581 | 565 | 112.1 |
| C | 15 | 214 | 225075 | 1671.55 | 576 | 580 | 134.3 |
| C | 0 | 10 | 16627 | 119.48 | 576 | 580 | 134.3 |
| C | 13 | 61 | 3718 | 23.37 | 576 | 580 | 134.3 |
| D | 12 | 235 | 5088802 | 39740.11 | 524 | 509 | 128.0 |
| D | 12 | 227 | 438875 | 3423.69 | 524 | 509 | 128.0 |
| D | 1 | 47 | 155416 | 1209.84 | 524 | 509 | 128.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

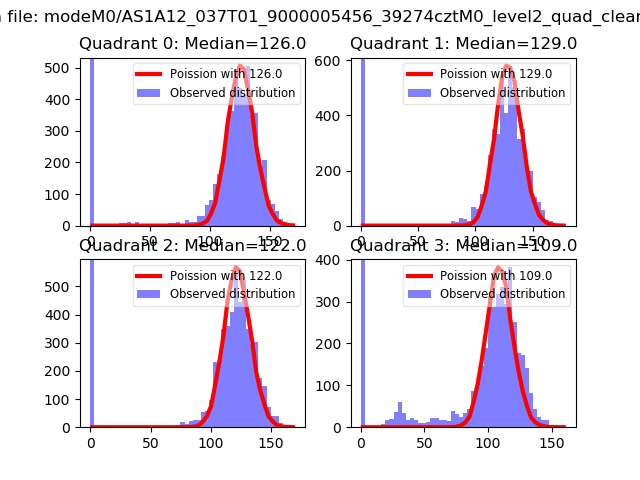

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

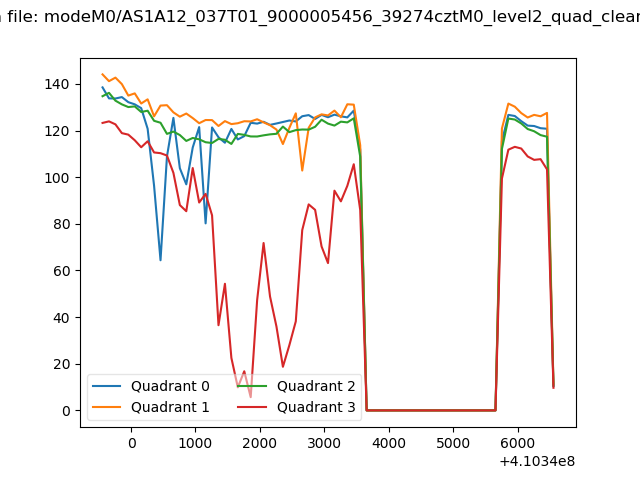

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

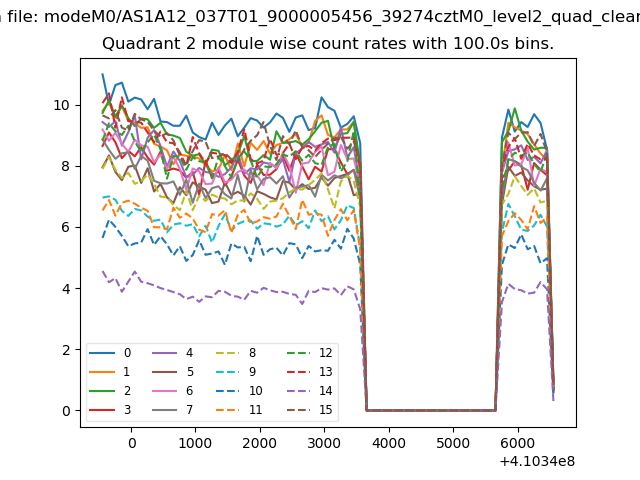

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

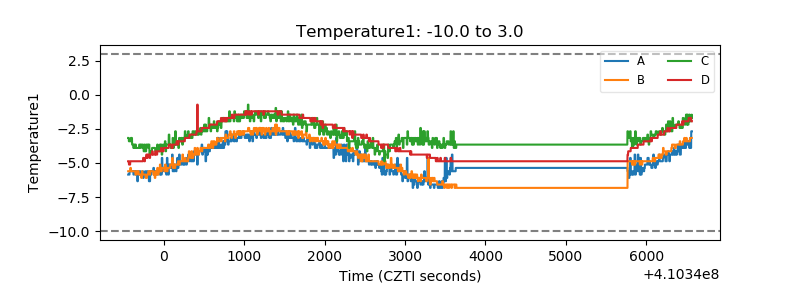

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

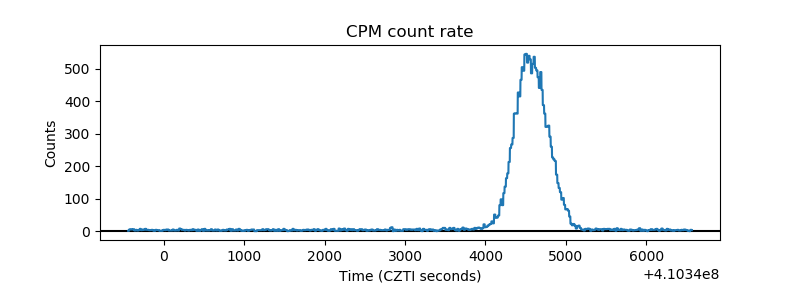

| _CPM_Rate |  |

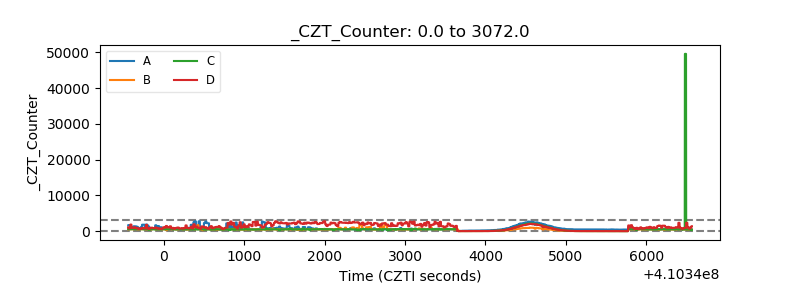

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

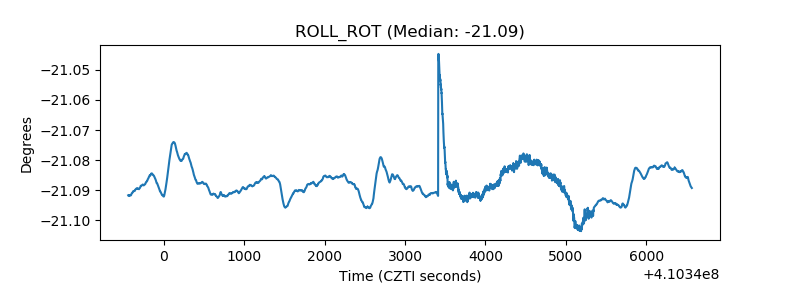

| _ROLL_ROT |  |
| _Roll_DEC |  |

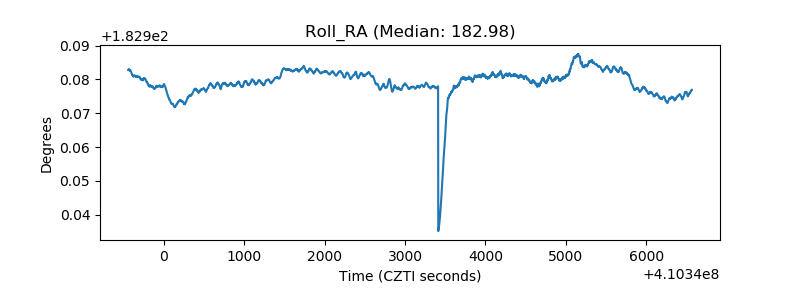

| _Roll_RA |  |
| Veto Counter |  |
