| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005470_39397cztM0_level2.fits | modeM0/AS1A12_018T01_9000005470_39397cztM0_level2_quad_clean.evt |
| Size (bytes) | 977,140,800 | 163,929,600 |
| Size | 931.9 MB | 156.3 MB |
| Events in quadrant A | 6,352,627 | 1,182,808 |
| Events in quadrant B | 4,856,123 | 1,221,353 |
| Events in quadrant C | 5,623,169 | 1,143,562 |
| Events in quadrant D | 18,498,343 | 664,098 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 220 | 0 |
| B | 0 | 220 | 0 |
| C | 0 | 220 | 0 |
| D | 0 | 220 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25503 | 3 |
| B | 0 | 22049 | 2 |
| C | 0 | 23363 | 2 |
| D | 0 | 62467 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10851 | 156 | 1.437656% |
| B | 10851 | 23 | 0.211962% |
| C | 10851 | 64 | 0.589807% |
| D | 10851 | 4734 | 43.627315% |

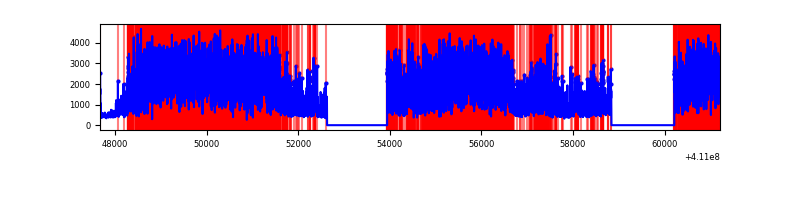

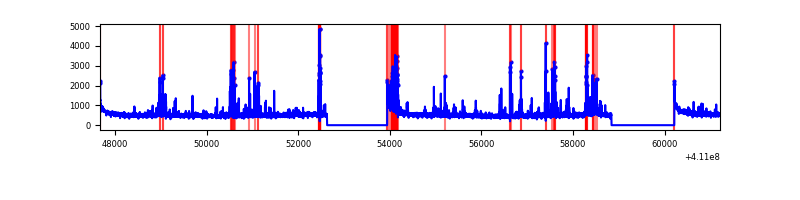

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13537 | 10853 | 110 | 110 | 0.81% | 1.01% |  |
| B | 13537 | 10853 | 7 | 7 | 0.05% | 0.06% |  |
| C | 13537 | 10853 | 55 | 55 | 0.41% | 0.51% |  |
| D | 13537 | 10853 | 4081 | 4081 | 30.15% | 37.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 796790 | 3252.16 | 1196 | 1169 | 244.6 |
| A | 13 | 248 | 771894 | 3150.39 | 1196 | 1169 | 244.6 |
| A | 2 | 79 | 139450 | 565.23 | 1196 | 1169 | 244.6 |
| B | 5 | 172 | 113213 | 486.14 | 1194 | 1159 | 230.5 |
| B | 12 | 111 | 29329 | 122.21 | 1194 | 1159 | 230.5 |
| B | 11 | 111 | 27403 | 113.86 | 1194 | 1159 | 230.5 |
| C | 15 | 214 | 480149 | 1771.06 | 1166 | 1170 | 270.4 |
| C | 9 | 187 | 341073 | 1256.81 | 1166 | 1170 | 270.4 |
| C | 15 | 208 | 215540 | 792.65 | 1166 | 1170 | 270.4 |
| D | 12 | 235 | 13996742 | 58418.99 | 974 | 945 | 239.6 |
| D | 13 | 249 | 377537 | 1571.91 | 974 | 945 | 239.6 |
| D | 2 | 249 | 204695 | 850.46 | 974 | 945 | 239.6 |

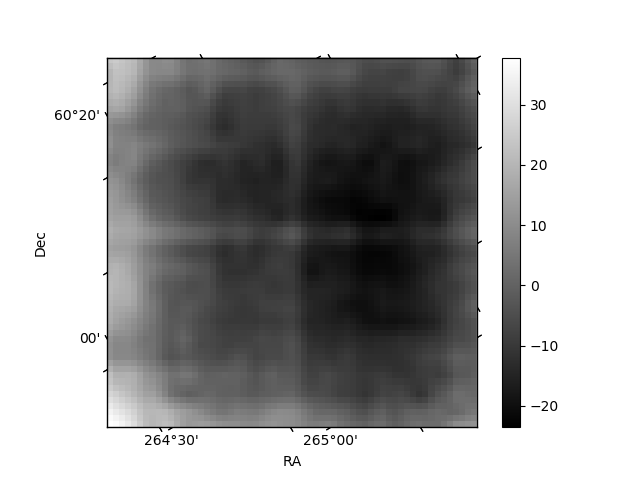

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

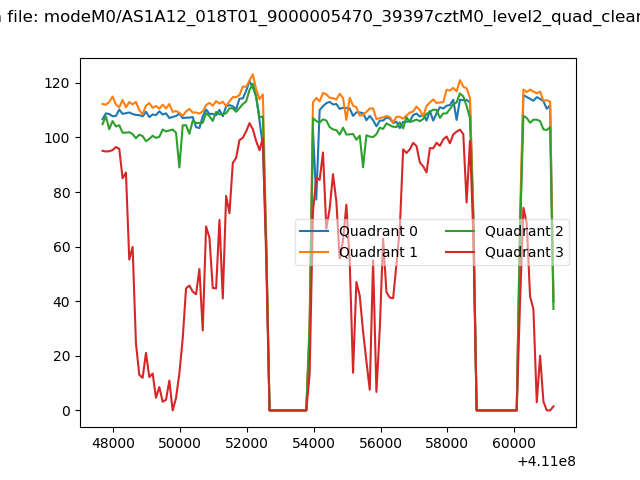

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

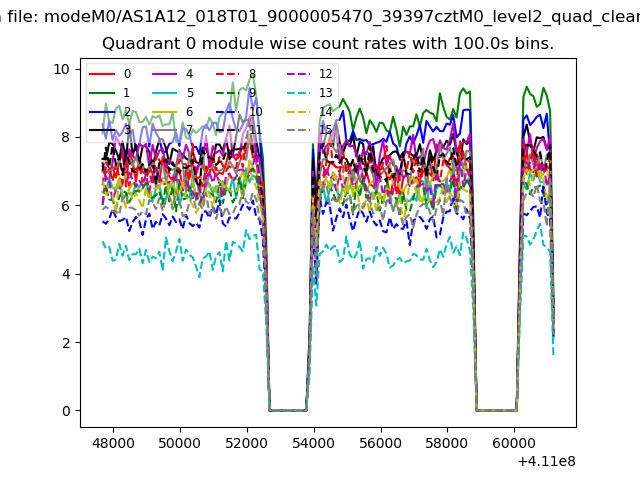

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

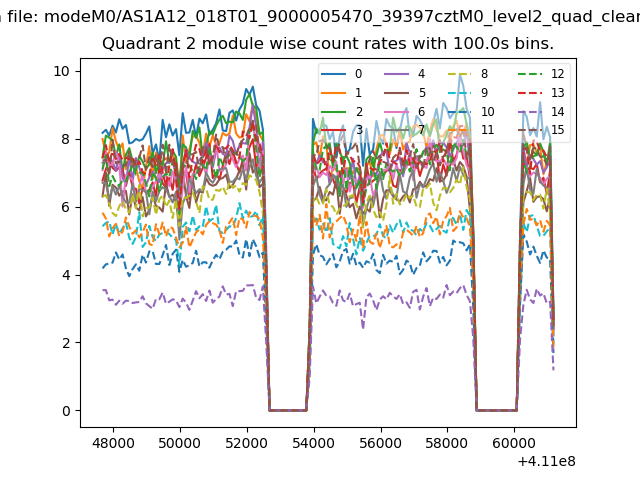

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

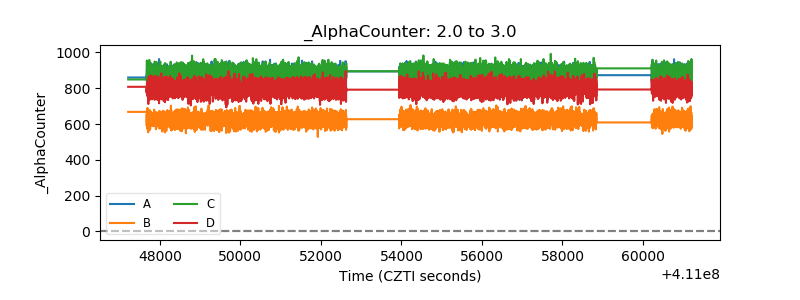

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

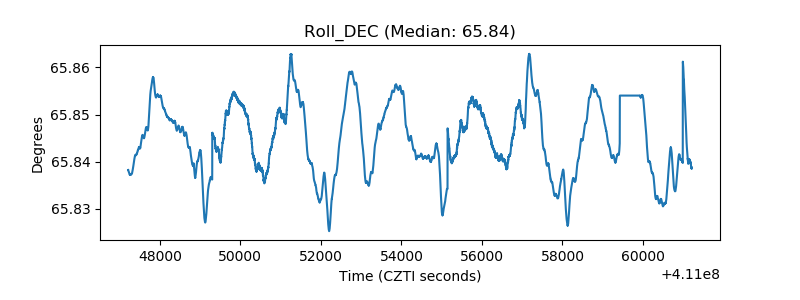

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
