| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_077T06_9000005474_39429cztM0_level2.fits | modeM0/AS1A12_077T06_9000005474_39429cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,162,880 | 90,766,080 |
| Size | 491.3 MB | 86.6 MB |
| Events in quadrant A | 4,249,680 | 640,306 |
| Events in quadrant B | 2,584,528 | 667,150 |
| Events in quadrant C | 6,211,183 | 517,111 |
| Events in quadrant D | 5,586,309 | 529,099 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16449 | 3 |
| B | 0 | 11587 | 2 |
| C | 0 | 22133 | 2 |
| D | 0 | 20523 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5645 | 117 | 2.072631% |
| B | 5645 | 10 | 0.177148% |
| C | 5645 | 1186 | 21.009743% |
| D | 5645 | 704 | 12.471213% |

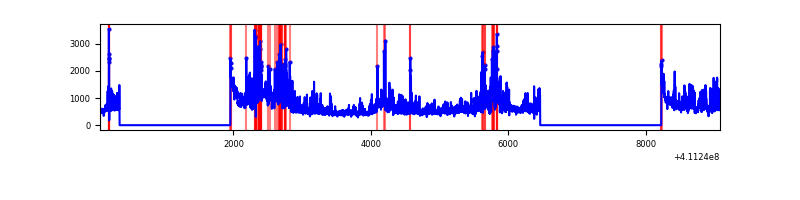

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9021 | 5647 | 73 | 73 | 0.81% | 1.29% |  |
| B | 9021 | 5647 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9021 | 5647 | 1050 | 1050 | 11.64% | 18.59% |  |
| D | 9021 | 5647 | 623 | 623 | 6.91% | 11.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 1310542 | 10133.31 | 627 | 612 | 129.3 |
| A | 10 | 83 | 457966 | 3537.98 | 627 | 612 | 129.3 |
| A | 15 | 174 | 25125 | 189.63 | 627 | 612 | 129.3 |
| B | 5 | 172 | 61192 | 488.1 | 631 | 615 | 124.1 |
| B | 5 | 255 | 22251 | 174.33 | 631 | 615 | 124.1 |
| B | 12 | 111 | 15615 | 120.86 | 631 | 615 | 124.1 |
| C | 14 | 254 | 2240461 | 17080.23 | 557 | 561 | 131.1 |
| C | 15 | 208 | 1220833 | 9305.11 | 557 | 561 | 131.1 |
| C | 9 | 187 | 341253 | 2597.93 | 557 | 561 | 131.1 |
| D | 13 | 249 | 1713295 | 11911.91 | 586 | 569 | 143.8 |
| D | 12 | 227 | 846822 | 5885.64 | 586 | 569 | 143.8 |
| D | 2 | 153 | 453359 | 3149.13 | 586 | 569 | 143.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

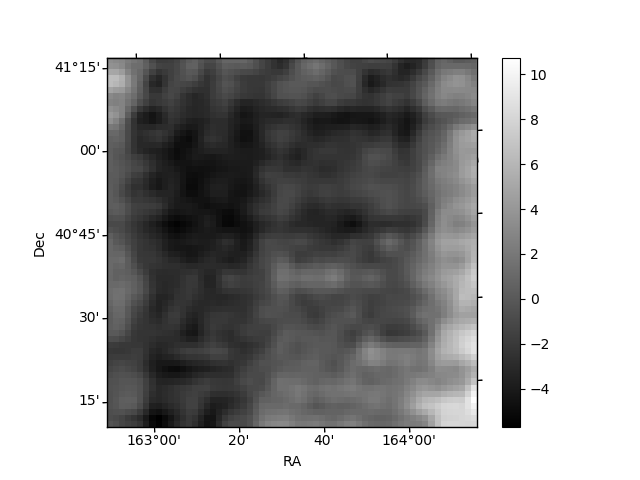

| Plot type | Count rate plots | Images |
|---|---|---|

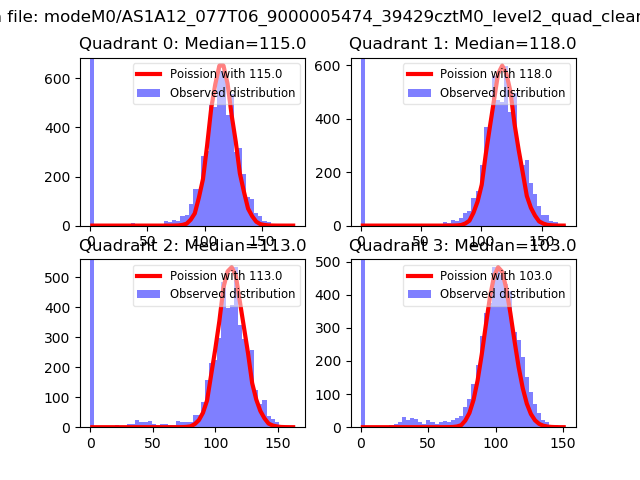

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

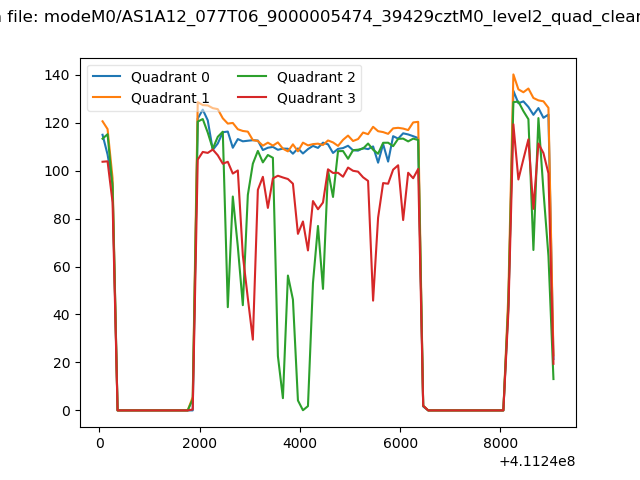

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

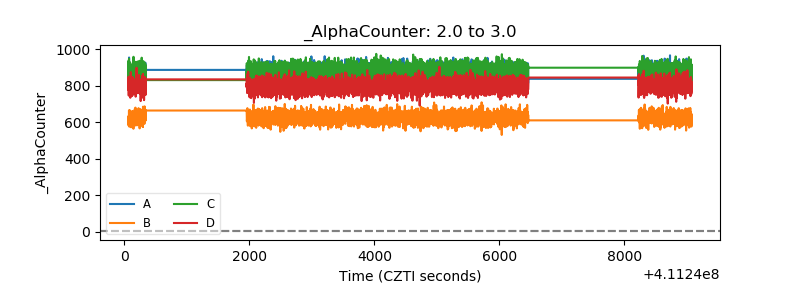

| Alpha Counter |  |

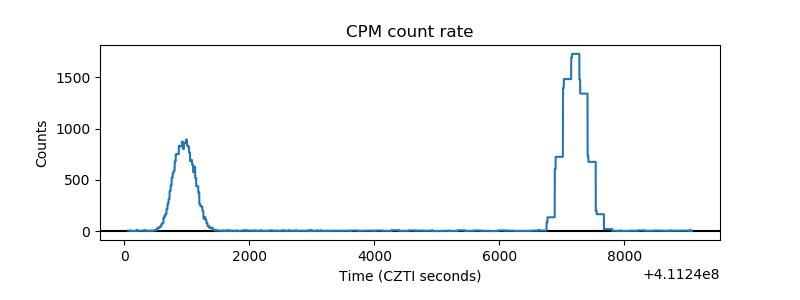

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

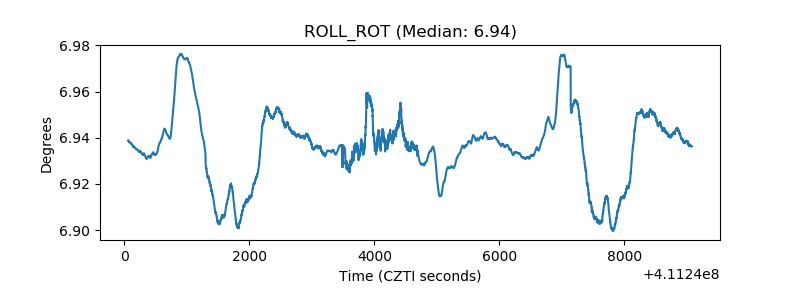

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
