| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_025T17_9000005476_39449cztM0_level2.fits | modeM0/AS1A12_025T17_9000005476_39449cztM0_level2_quad_clean.evt |
| Size (bytes) | 343,560,960 | 86,374,080 |
| Size | 327.6 MB | 82.4 MB |
| Events in quadrant A | 3,938,305 | 547,061 |
| Events in quadrant B | 2,336,214 | 609,746 |
| Events in quadrant C | 3,168,231 | 571,339 |
| Events in quadrant D | 2,878,156 | 530,448 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15016 | 3 |
| B | 0 | 10298 | 2 |
| C | 0 | 12497 | 2 |
| D | 0 | 11975 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 38 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5089 | 361 | 7.093732% |
| B | 5089 | 10 | 0.196502% |
| C | 5089 | 144 | 2.829633% |
| D | 5089 | 95 | 1.866771% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7091 | 5090 | 253 | 253 | 3.57% | 4.97% |  |
| B | 7091 | 5090 | 3 | 3 | 0.04% | 0.06% |  |
| C | 7091 | 5090 | 106 | 106 | 1.49% | 2.08% |  |
| D | 7091 | 5090 | 79 | 79 | 1.11% | 1.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 978561 | 8564.36 | 562 | 551 | 114.2 |
| A | 10 | 83 | 423119 | 3700.4 | 562 | 551 | 114.2 |
| A | 15 | 222 | 330625 | 2890.43 | 562 | 551 | 114.2 |
| B | 8 | 3 | 21469 | 184.94 | 582 | 567 | 113.0 |
| B | 5 | 172 | 18836 | 161.65 | 582 | 567 | 113.0 |
| B | 5 | 255 | 14605 | 124.21 | 582 | 567 | 113.0 |
| C | 15 | 208 | 687394 | 5256.91 | 560 | 564 | 130.7 |
| C | 15 | 214 | 212691 | 1623.59 | 560 | 564 | 130.7 |
| C | 9 | 187 | 77438 | 588.38 | 560 | 564 | 130.7 |
| D | 12 | 227 | 278458 | 1999.0 | 563 | 547 | 139.0 |
| D | 13 | 249 | 164137 | 1176.7 | 563 | 547 | 139.0 |
| D | 2 | 249 | 143494 | 1028.21 | 563 | 547 | 139.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

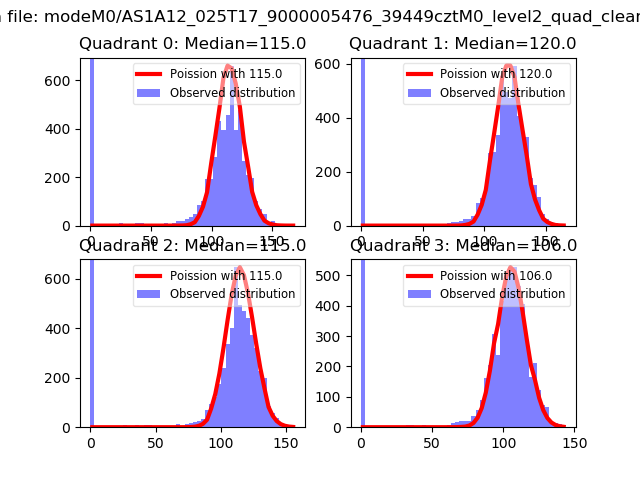

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

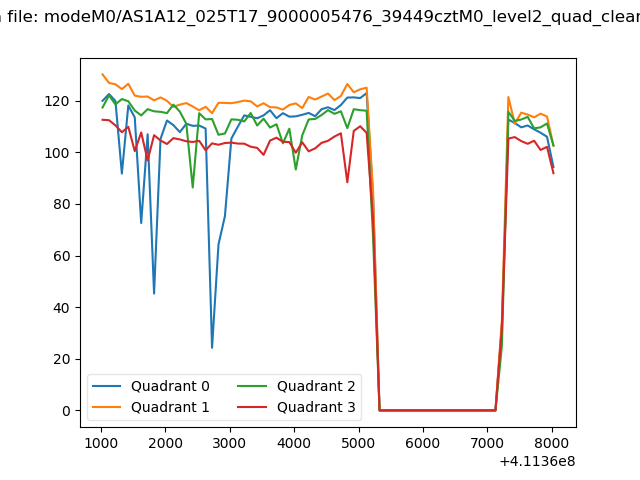

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

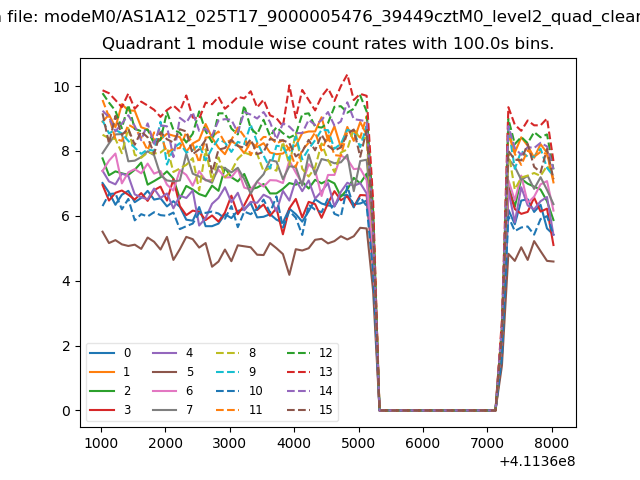

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

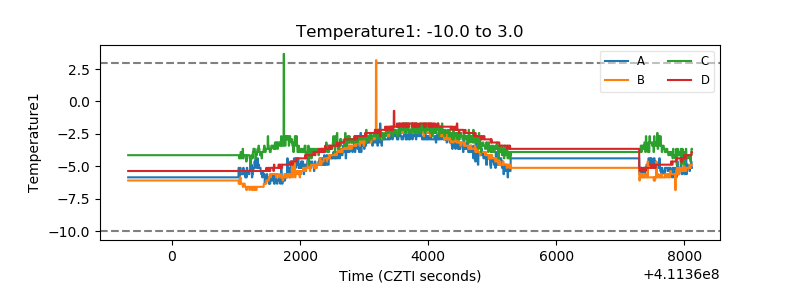

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

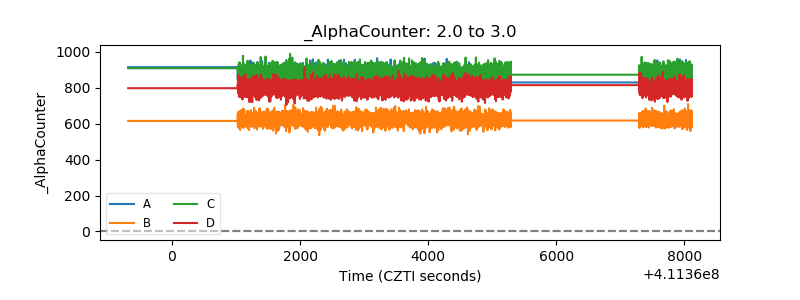

| Alpha Counter |  |

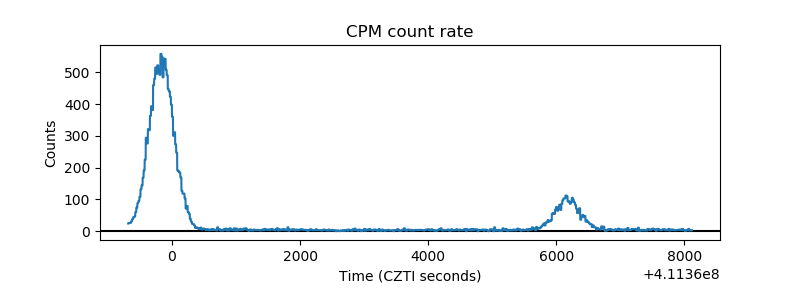

| _CPM_Rate |  |
| CZT Counter |  |

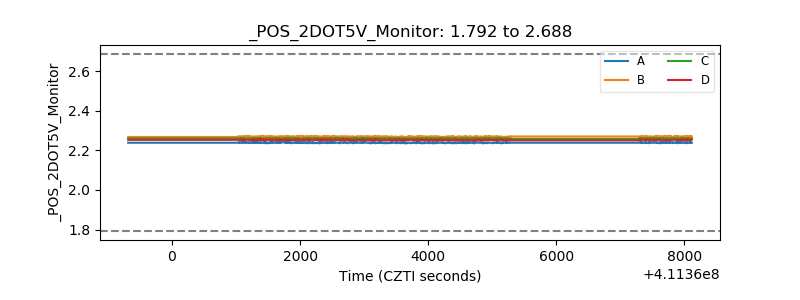

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

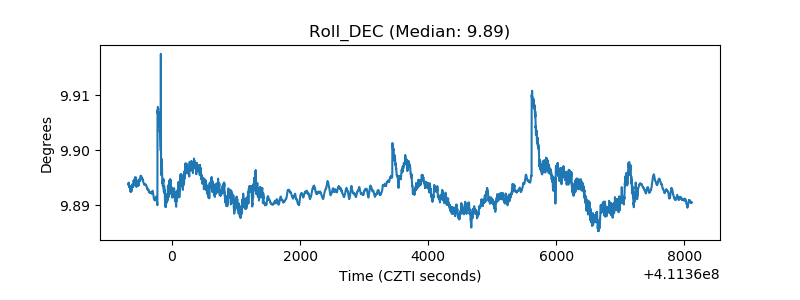

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
