| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T02_9000005486_39488cztM0_level2.fits | modeM0/AS1C07_001T02_9000005486_39488cztM0_level2_quad_clean.evt |
| Size (bytes) | 382,406,400 | 88,493,760 |
| Size | 364.7 MB | 84.4 MB |
| Events in quadrant A | 3,260,542 | 607,087 |
| Events in quadrant B | 3,070,232 | 593,349 |
| Events in quadrant C | 3,313,631 | 597,538 |
| Events in quadrant D | 4,113,731 | 523,764 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12963 | 3 |
| B | 0 | 12687 | 2 |
| C | 0 | 13350 | 2 |
| D | 0 | 15802 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5109 | 28 | 0.548052% |
| B | 5109 | 279 | 5.460951% |
| C | 5109 | 57 | 1.115678% |
| D | 5109 | 344 | 6.733216% |

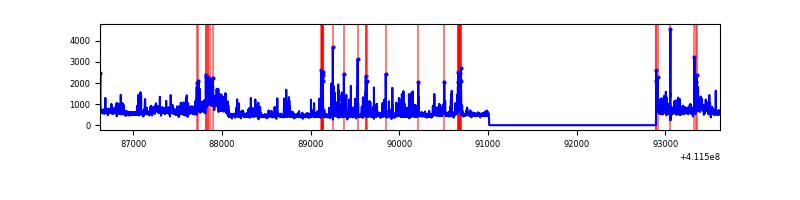

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6992 | 5110 | 18 | 18 | 0.26% | 0.35% |  |
| B | 6992 | 5110 | 209 | 209 | 2.99% | 4.09% |  |
| C | 6992 | 5110 | 43 | 43 | 0.61% | 0.84% |  |
| D | 6992 | 5110 | 316 | 316 | 4.52% | 6.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 431132 | 3719.15 | 568 | 558 | 115.8 |
| A | 15 | 222 | 243896 | 2101.87 | 568 | 558 | 115.8 |
| A | 6 | 10 | 212963 | 1834.68 | 568 | 558 | 115.8 |
| B | 5 | 172 | 857313 | 8143.49 | 553 | 537 | 105.2 |
| B | 5 | 255 | 29008 | 270.61 | 553 | 537 | 105.2 |
| B | 12 | 111 | 12975 | 118.22 | 553 | 537 | 105.2 |
| C | 15 | 208 | 477244 | 3656.42 | 564 | 568 | 130.4 |
| C | 9 | 187 | 395241 | 3027.4 | 564 | 568 | 130.4 |
| C | 15 | 214 | 217041 | 1660.49 | 564 | 568 | 130.4 |
| D | 12 | 0 | 1321555 | 9951.31 | 546 | 530 | 132.7 |
| D | 13 | 249 | 356101 | 2678.53 | 546 | 530 | 132.7 |
| D | 2 | 249 | 181373 | 1362.29 | 546 | 530 | 132.7 |

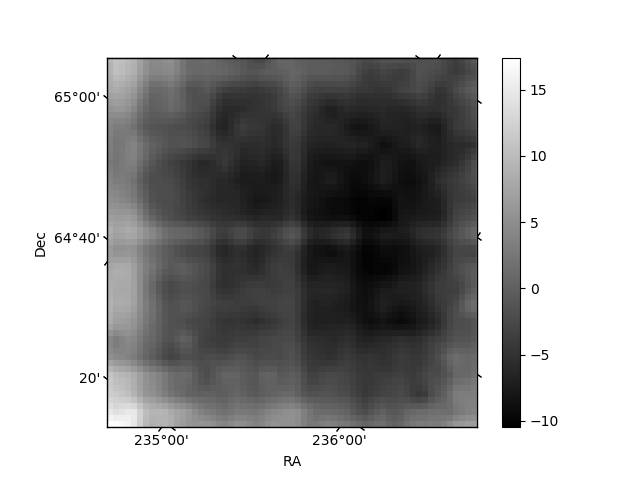

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

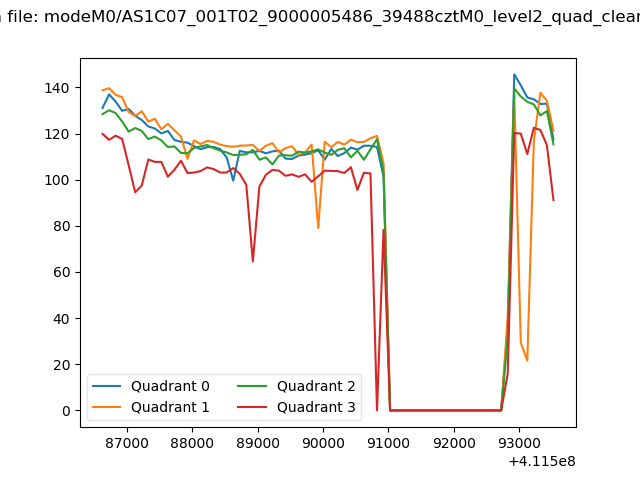

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

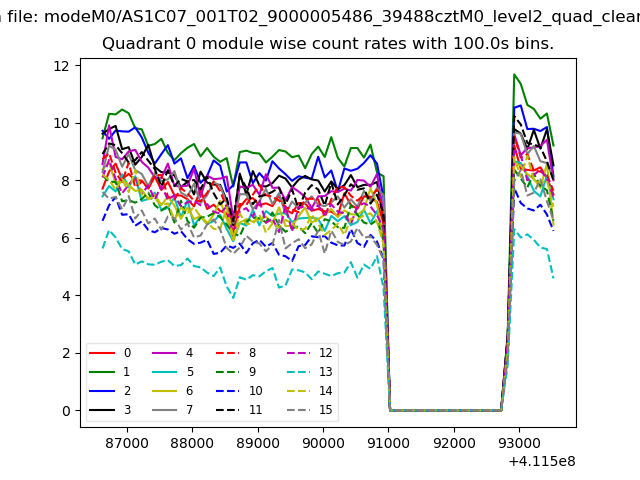

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

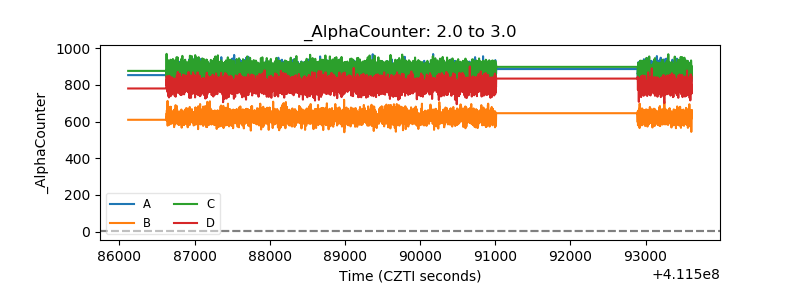

| Alpha Counter |  |

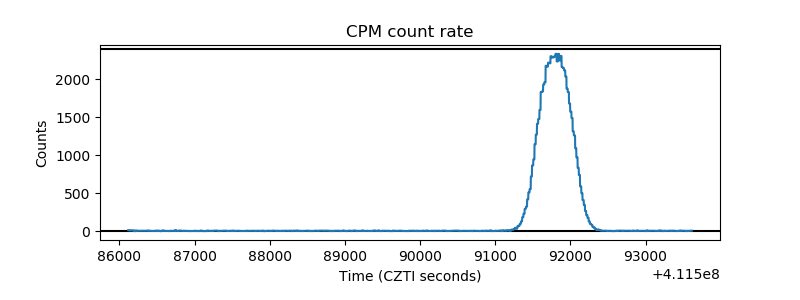

| _CPM_Rate |  |

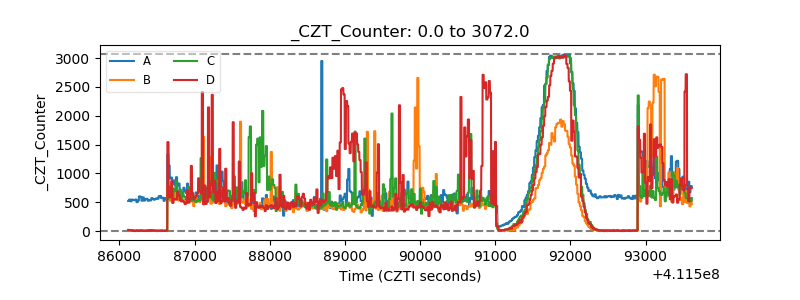

| CZT Counter |  |

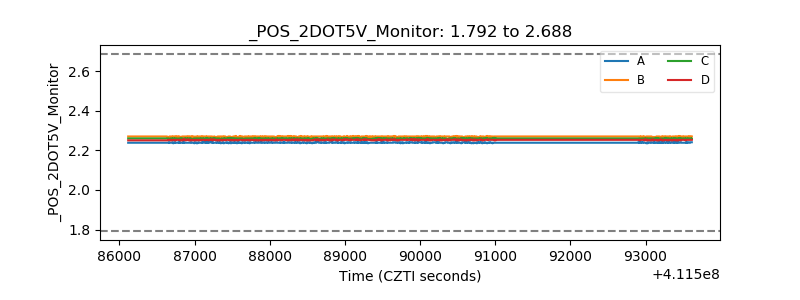

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
