| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005488_39508cztM0_level2.fits | modeM0/AS1A12_018T01_9000005488_39508cztM0_level2_quad_clean.evt |
| Size (bytes) | 322,372,800 | 89,012,160 |
| Size | 307.4 MB | 84.9 MB |
| Events in quadrant A | 2,701,874 | 598,929 |
| Events in quadrant B | 2,522,833 | 612,178 |
| Events in quadrant C | 3,642,491 | 562,520 |
| Events in quadrant D | 2,638,506 | 537,902 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11506 | 3 |
| B | 0 | 11610 | 2 |
| C | 0 | 14421 | 2 |
| D | 0 | 12043 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5483 | 10 | 0.182382% |
| B | 5483 | 65 | 1.185482% |
| C | 5483 | 273 | 4.979026% |
| D | 5483 | 63 | 1.149006% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7156 | 5484 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7156 | 5484 | 40 | 40 | 0.56% | 0.73% |  |
| C | 7156 | 5484 | 267 | 267 | 3.73% | 4.87% |  |
| D | 7156 | 5484 | 61 | 61 | 0.85% | 1.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 444316 | 3783.9 | 578 | 566 | 117.3 |
| A | 15 | 222 | 13561 | 110.81 | 578 | 566 | 117.3 |
| A | 13 | 254 | 6774 | 52.94 | 578 | 566 | 117.3 |
| B | 5 | 172 | 260008 | 2352.73 | 573 | 558 | 110.3 |
| B | 12 | 111 | 13966 | 121.59 | 573 | 558 | 110.3 |
| B | 11 | 111 | 12711 | 110.21 | 573 | 558 | 110.3 |
| C | 9 | 187 | 1264445 | 9903.05 | 550 | 553 | 127.6 |
| C | 15 | 214 | 226440 | 1769.91 | 550 | 553 | 127.6 |
| C | 15 | 208 | 3955 | 26.66 | 550 | 553 | 127.6 |
| D | 13 | 249 | 137267 | 988.25 | 560 | 544 | 138.3 |
| D | 2 | 249 | 124375 | 895.06 | 560 | 544 | 138.3 |
| D | 12 | 227 | 104120 | 748.66 | 560 | 544 | 138.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

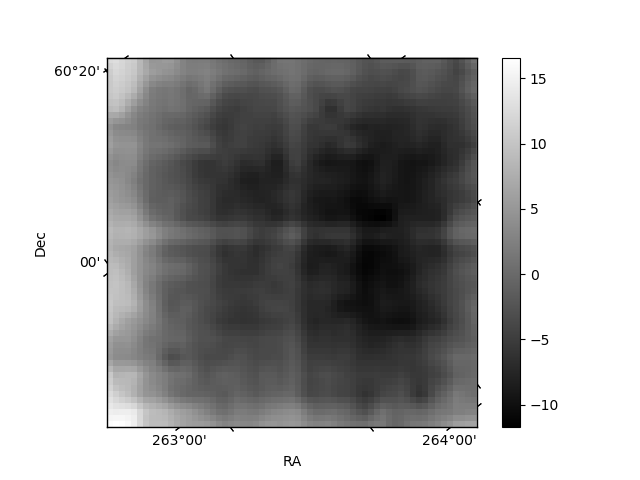

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

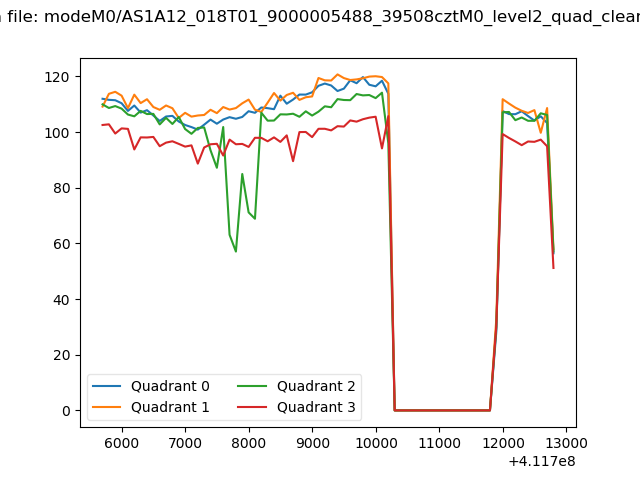

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

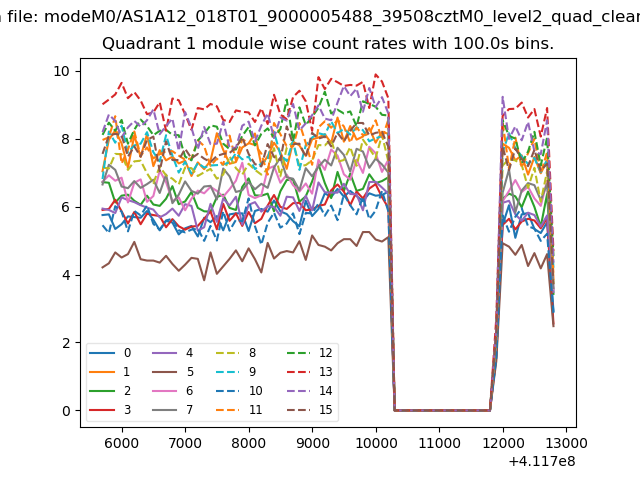

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

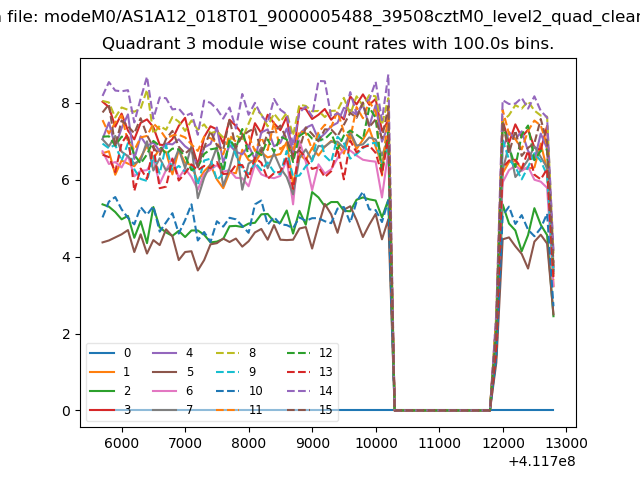

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

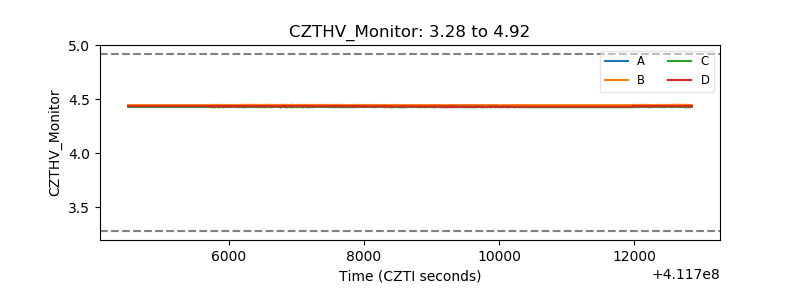

| CZT HV Monitor |  |

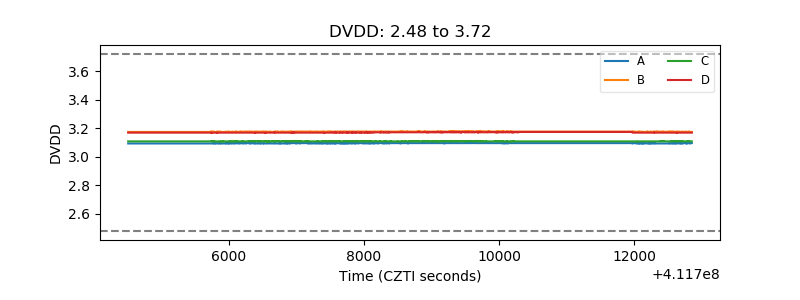

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

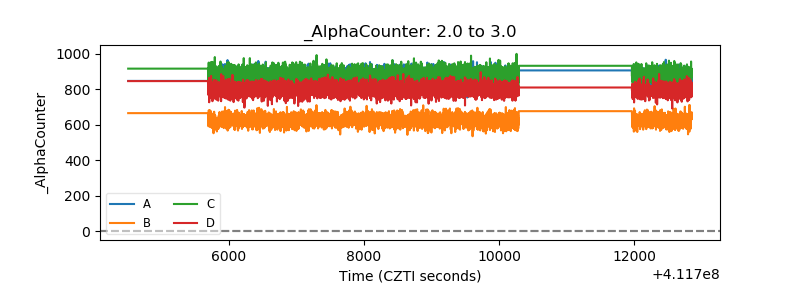

| Alpha Counter |  |

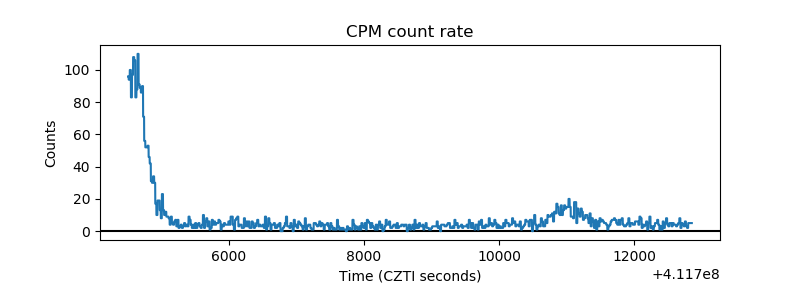

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
