| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005488_39601cztM0_level2.fits | modeM0/AS1A12_018T01_9000005488_39601cztM0_level2_quad_clean.evt |
| Size (bytes) | 436,190,400 | 90,685,440 |
| Size | 416.0 MB | 86.5 MB |
| Events in quadrant A | 3,021,736 | 625,439 |
| Events in quadrant B | 2,530,179 | 639,893 |
| Events in quadrant C | 6,289,052 | 541,964 |
| Events in quadrant D | 3,870,772 | 546,866 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12411 | 2 |
| B | 0 | 11522 | 1 |
| C | 0 | 22556 | 1 |
| D | 0 | 15459 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5595 | 38 | 0.679178% |
| B | 5595 | 19 | 0.339589% |
| C | 5595 | 675 | 12.064343% |
| D | 5595 | 235 | 4.200179% |

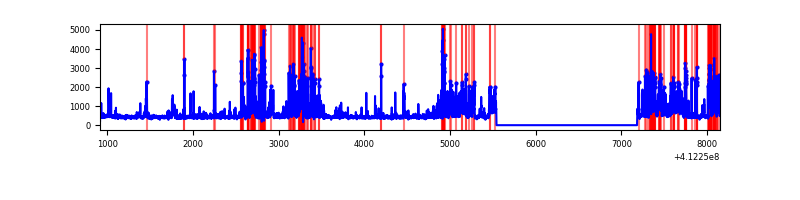

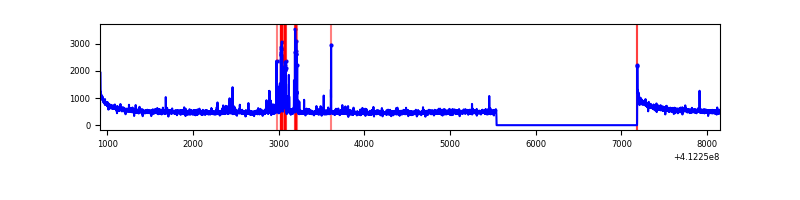

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7237 | 5596 | 31 | 31 | 0.43% | 0.55% |  |
| B | 7237 | 5596 | 8 | 8 | 0.11% | 0.14% |  |
| C | 7237 | 5596 | 683 | 683 | 9.44% | 12.21% |  |
| D | 7237 | 5596 | 225 | 225 | 3.11% | 4.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 450524 | 3597.0 | 613 | 602 | 125.1 |
| A | 13 | 248 | 166652 | 1327.52 | 613 | 602 | 125.1 |
| A | 15 | 222 | 23708 | 184.73 | 613 | 602 | 125.1 |
| B | 5 | 255 | 130102 | 1098.92 | 608 | 591 | 117.9 |
| B | 12 | 111 | 14585 | 118.74 | 608 | 591 | 117.9 |
| B | 11 | 111 | 13740 | 111.57 | 608 | 591 | 117.9 |
| C | 9 | 187 | 2898380 | 21759.3 | 573 | 577 | 133.2 |
| C | 15 | 208 | 877362 | 6583.69 | 573 | 577 | 133.2 |
| C | 15 | 214 | 243336 | 1822.85 | 573 | 577 | 133.2 |
| D | 12 | 227 | 1281032 | 8867.3 | 593 | 575 | 144.4 |
| D | 13 | 249 | 82464 | 567.09 | 593 | 575 | 144.4 |
| D | 13 | 171 | 66280 | 455.01 | 593 | 575 | 144.4 |

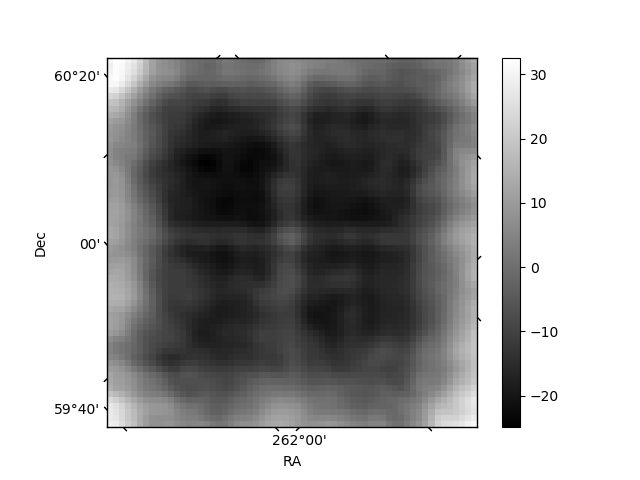

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

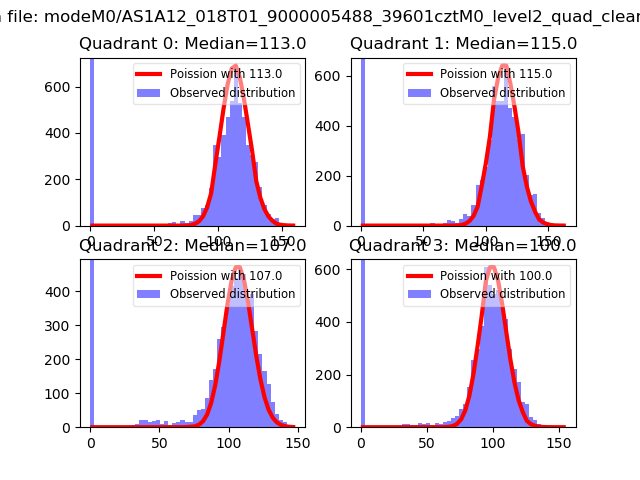

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

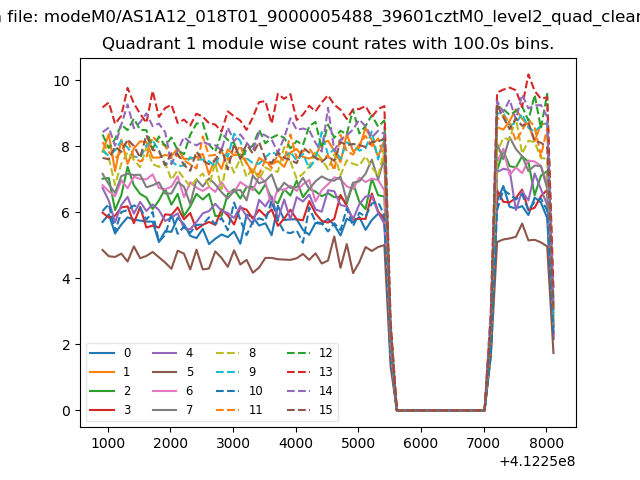

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

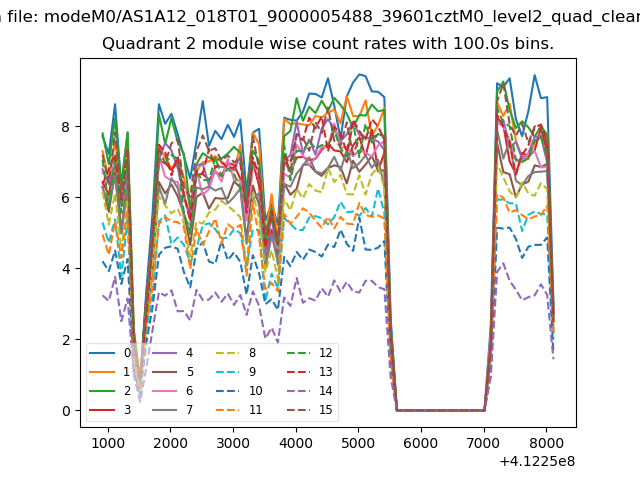

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

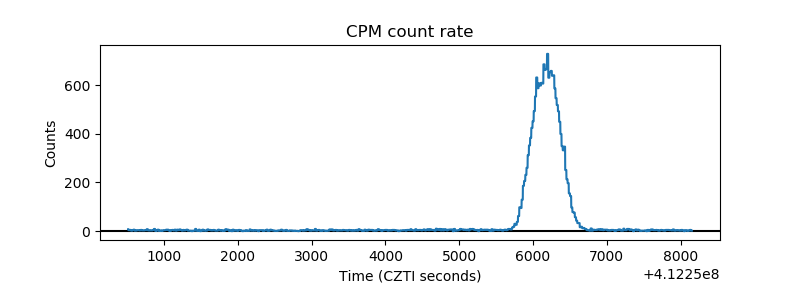

| _CPM_Rate |  |

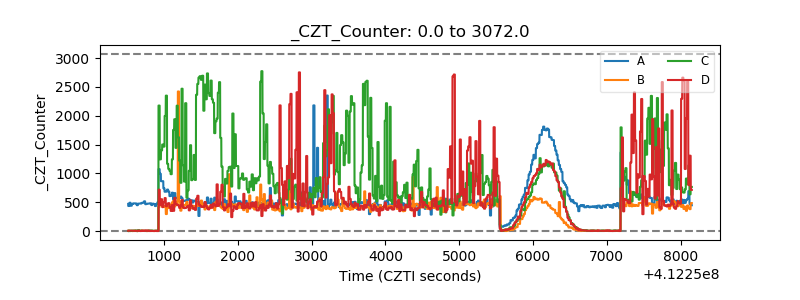

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
