| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_022T01_9000005494_39754cztM0_level2.fits | modeM0/AS1A12_022T01_9000005494_39754cztM0_level2_quad_clean.evt |
| Size (bytes) | 353,620,800 | 88,588,800 |
| Size | 337.2 MB | 84.5 MB |
| Events in quadrant A | 2,884,385 | 603,555 |
| Events in quadrant B | 2,501,502 | 617,322 |
| Events in quadrant C | 2,756,675 | 588,730 |
| Events in quadrant D | 4,536,234 | 503,634 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11929 | 3 |
| B | 0 | 11050 | 2 |
| C | 0 | 11521 | 2 |
| D | 0 | 17224 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5277 | 50 | 0.947508% |
| B | 5277 | 20 | 0.379003% |
| C | 5277 | 22 | 0.416904% |
| D | 5277 | 499 | 9.456130% |

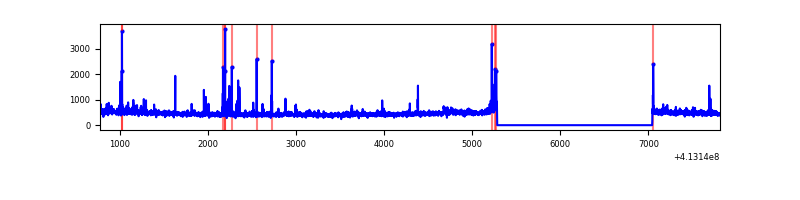

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7038 | 5278 | 38 | 38 | 0.54% | 0.72% |  |
| B | 7038 | 5278 | 12 | 12 | 0.17% | 0.23% |  |
| C | 7038 | 5278 | 11 | 11 | 0.16% | 0.21% |  |
| D | 7038 | 5278 | 434 | 434 | 6.17% | 8.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 462924 | 3883.22 | 578 | 566 | 119.1 |
| A | 13 | 248 | 113803 | 951.05 | 578 | 566 | 119.1 |
| A | 13 | 210 | 25214 | 207.01 | 578 | 566 | 119.1 |
| B | 5 | 255 | 86732 | 775.76 | 578 | 560 | 111.1 |
| B | 0 | 190 | 55352 | 493.26 | 578 | 560 | 111.1 |
| B | 5 | 172 | 41785 | 371.12 | 578 | 560 | 111.1 |
| C | 15 | 214 | 218576 | 1659.04 | 568 | 573 | 131.4 |
| C | 14 | 254 | 134334 | 1017.95 | 568 | 573 | 131.4 |
| C | 15 | 208 | 101903 | 771.14 | 568 | 573 | 131.4 |
| D | 12 | 227 | 2191064 | 16311.99 | 547 | 531 | 134.3 |
| D | 2 | 250 | 60162 | 444.04 | 547 | 531 | 134.3 |
| D | 12 | 233 | 38899 | 285.71 | 547 | 531 | 134.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

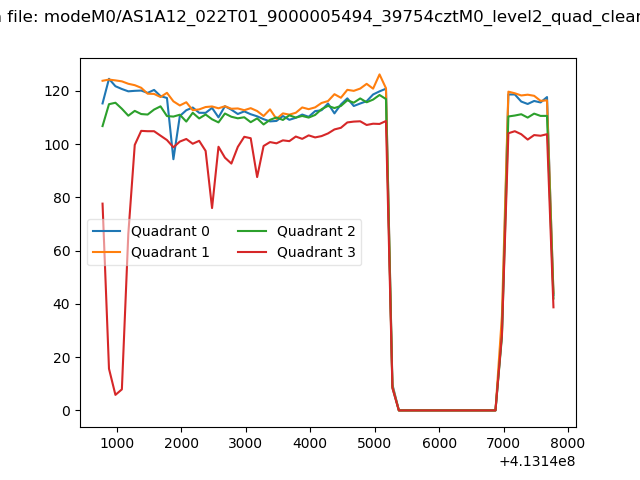

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

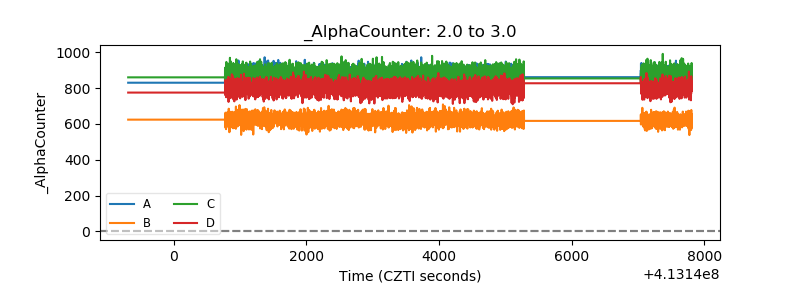

| Alpha Counter |  |

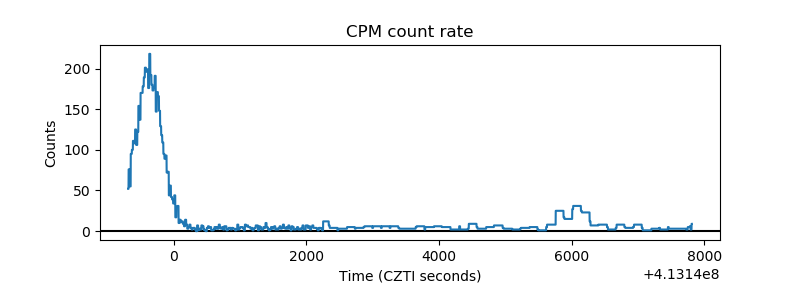

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

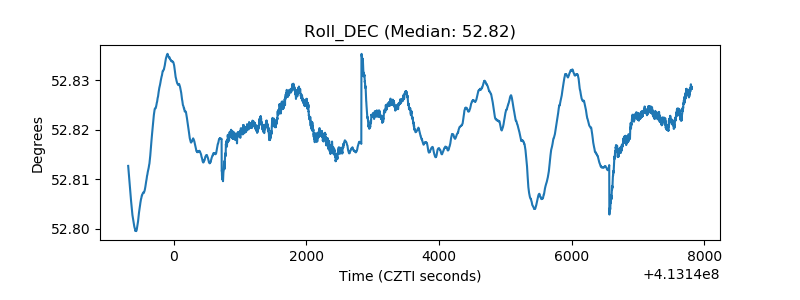

| _Roll_DEC |  |

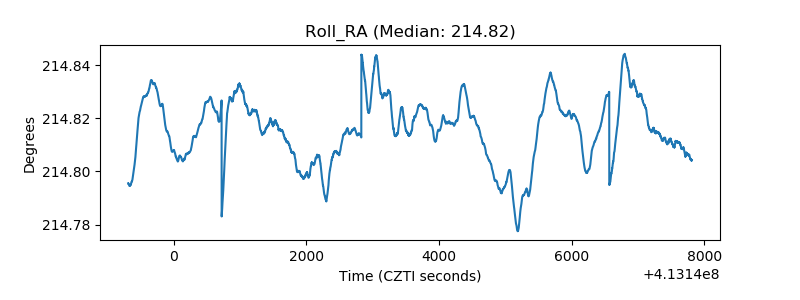

| _Roll_RA |  |

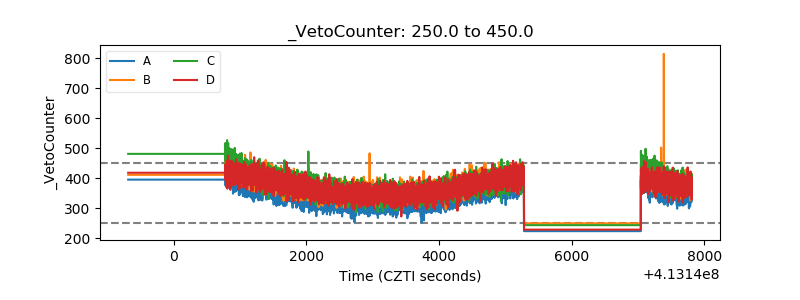

| Veto Counter |  |
