| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_032T02_9000005500_39867cztM0_level2.fits | modeM0/AS1A12_032T02_9000005500_39867cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,463,659,200 | 313,197,120 |
| Size | 1.4 GB | 298.7 MB |
| Events in quadrant A | 16,284,729 | 1,965,669 |
| Events in quadrant B | 10,267,179 | 2,232,687 |
| Events in quadrant C | 13,801,181 | 2,081,062 |
| Events in quadrant D | 12,381,813 | 1,916,399 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 380 | 0 |
| B | 0 | 380 | 0 |
| C | 0 | 380 | 0 |
| D | 0 | 380 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60182 | 6 |
| B | 0 | 42721 | 5 |
| C | 0 | 52307 | 5 |
| D | 0 | 49549 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18695 | 2332 | 12.473924% |
| B | 18695 | 268 | 1.433538% |
| C | 18695 | 1140 | 6.097887% |
| D | 18695 | 917 | 4.905055% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 28319 | 18700 | 1819 | 1819 | 6.42% | 9.73% |  |
| B | 28319 | 18700 | 157 | 157 | 0.55% | 0.84% |  |
| C | 28319 | 18700 | 1130 | 1130 | 3.99% | 6.04% |  |
| D | 28319 | 18700 | 804 | 804 | 2.84% | 4.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 10 | 5985326 | 14594.38 | 2033 | 1992 | 410.0 |
| A | 10 | 83 | 1437988 | 3502.64 | 2033 | 1992 | 410.0 |
| A | 13 | 248 | 793779 | 1931.3 | 2033 | 1992 | 410.0 |
| B | 4 | 170 | 882966 | 2215.0 | 2130 | 2079 | 397.7 |
| B | 5 | 172 | 340673 | 851.4 | 2130 | 2079 | 397.7 |
| B | 5 | 255 | 281867 | 703.53 | 2130 | 2079 | 397.7 |
| C | 9 | 187 | 4502598 | 9469.75 | 2069 | 2084 | 475.3 |
| C | 15 | 214 | 760188 | 1595.16 | 2069 | 2084 | 475.3 |
| C | 1 | 16 | 296613 | 619.73 | 2069 | 2084 | 475.3 |
| D | 2 | 249 | 1143048 | 2274.54 | 2091 | 2040 | 501.6 |
| D | 13 | 249 | 814211 | 1619.02 | 2091 | 2040 | 501.6 |
| D | 12 | 227 | 764544 | 1520.01 | 2091 | 2040 | 501.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

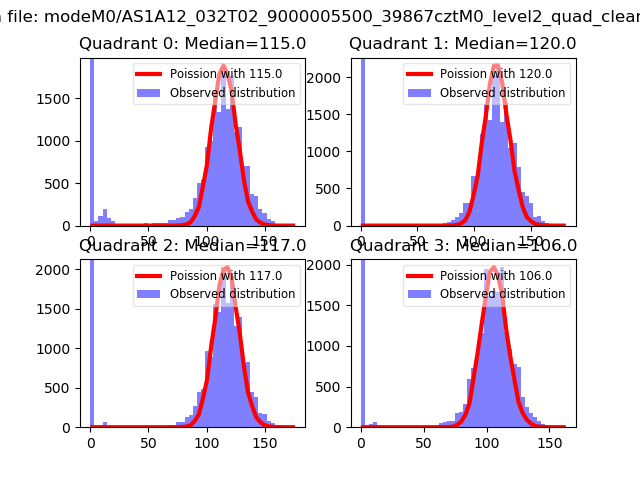

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

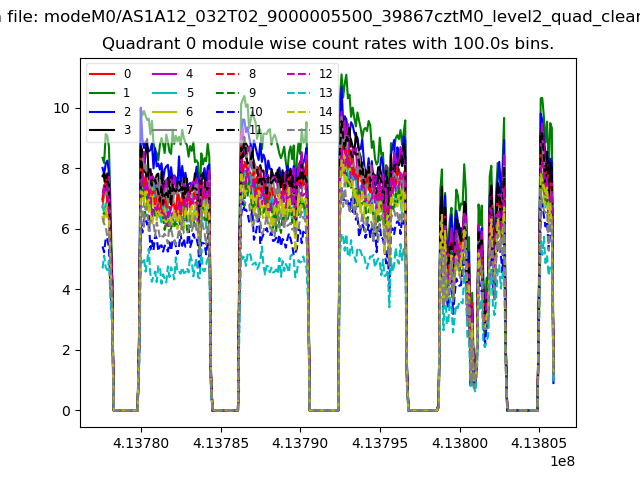

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

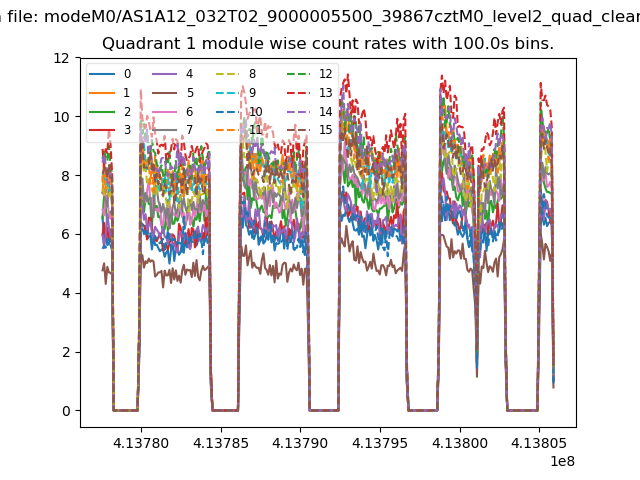

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
