| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_068T03_9000005508_39918cztM0_level2.fits | modeM0/AS1A12_068T03_9000005508_39918cztM0_level2_quad_clean.evt |
| Size (bytes) | 261,118,080 | 75,072,960 |
| Size | 249.0 MB | 71.6 MB |
| Events in quadrant A | 2,279,792 | 499,996 |
| Events in quadrant B | 2,154,105 | 509,099 |
| Events in quadrant C | 2,309,339 | 492,760 |
| Events in quadrant D | 2,563,237 | 448,104 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9707 | 2 |
| B | 0 | 9570 | 1 |
| C | 0 | 9608 | 1 |
| D | 0 | 10990 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 94 | 0 |
| B | 0 | 94 | 0 |
| C | 0 | 94 | 0 |
| D | 0 | 94 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4599 | 9 | 0.195695% |
| B | 4599 | 5 | 0.108719% |
| C | 4599 | 11 | 0.239182% |
| D | 4599 | 134 | 2.913677% |

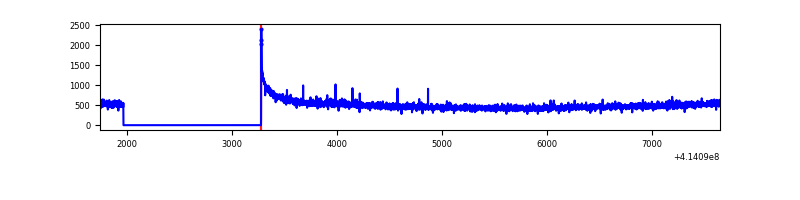

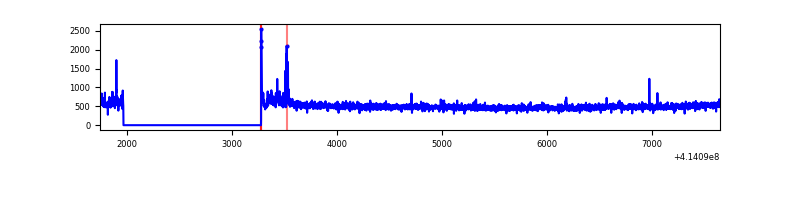

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5911 | 4599 | 3 | 3 | 0.05% | 0.07% |  |
| B | 5911 | 4598 | 5 | 5 | 0.08% | 0.11% |  |
| C | 5912 | 4599 | 4 | 4 | 0.07% | 0.09% |  |
| D | 5911 | 4598 | 120 | 120 | 2.03% | 2.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 333887 | 3210.45 | 499 | 489 | 103.8 |
| A | 13 | 254 | 7185 | 64.48 | 499 | 489 | 103.8 |
| A | 3 | 137 | 5568 | 48.91 | 499 | 489 | 103.8 |
| B | 4 | 171 | 81486 | 828.06 | 496 | 482 | 97.8 |
| B | 0 | 230 | 78446 | 796.99 | 496 | 482 | 97.8 |
| B | 15 | 54 | 14716 | 145.51 | 496 | 482 | 97.8 |
| C | 9 | 54 | 192369 | 1645.02 | 490 | 493 | 116.6 |
| C | 15 | 214 | 188312 | 1610.23 | 490 | 493 | 116.6 |
| C | 0 | 10 | 9497 | 77.19 | 490 | 493 | 116.6 |
| D | 13 | 249 | 244966 | 2035.86 | 484 | 471 | 120.1 |
| D | 12 | 227 | 223961 | 1860.96 | 484 | 471 | 120.1 |
| D | 2 | 249 | 114729 | 951.4 | 484 | 471 | 120.1 |

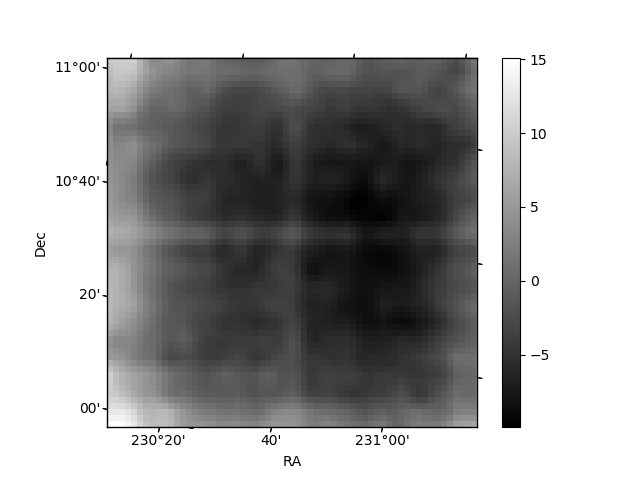

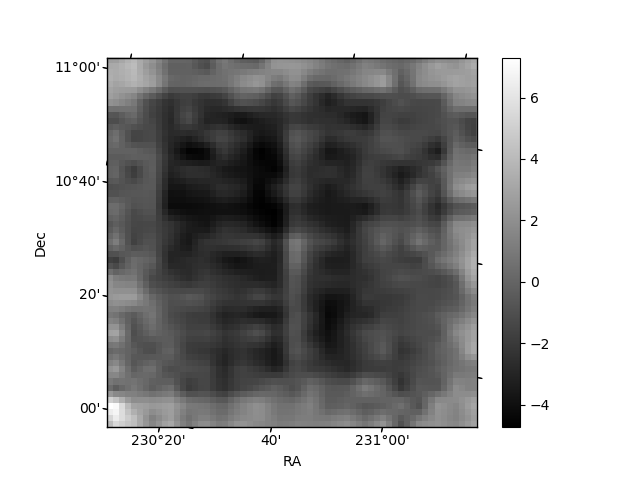

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

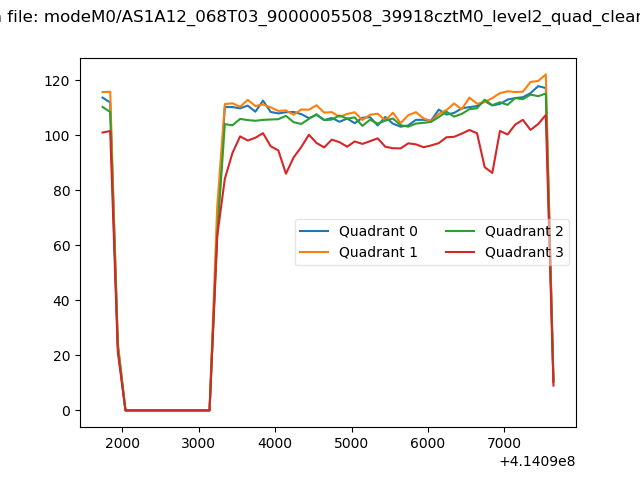

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

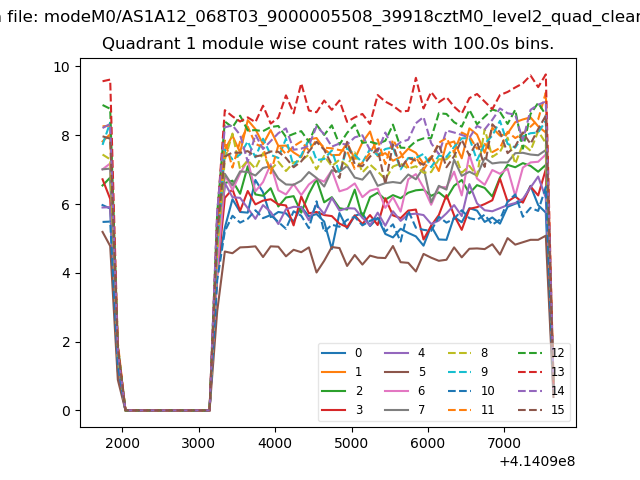

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

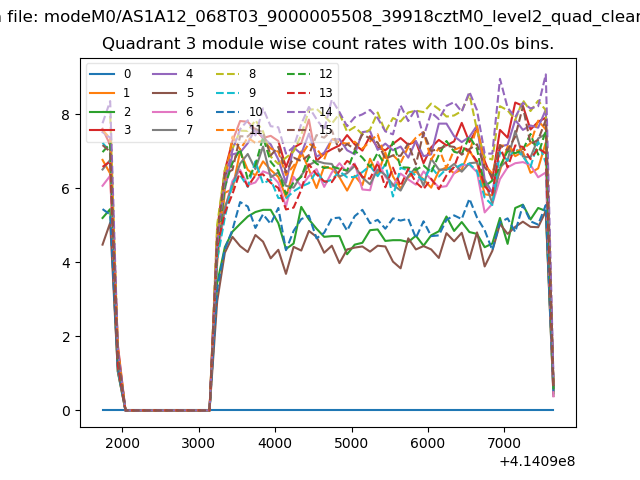

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

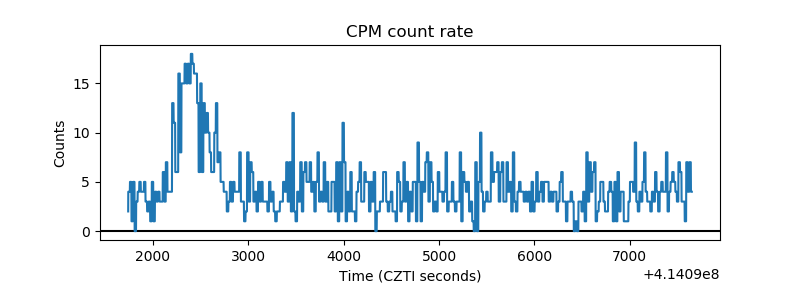

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
