| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_068T01_9000005526_40162cztM0_level2.fits | modeM0/AS1A12_068T01_9000005526_40162cztM0_level2_quad_clean.evt |
| Size (bytes) | 596,972,160 | 76,403,520 |
| Size | 569.3 MB | 72.9 MB |
| Events in quadrant A | 3,179,249 | 602,124 |
| Events in quadrant B | 3,036,346 | 615,706 |
| Events in quadrant C | 12,344,637 | 150,466 |
| Events in quadrant D | 3,099,163 | 550,500 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12720 | 2 |
| B | 0 | 12854 | 1 |
| C | 0 | 40477 | 1 |
| D | 0 | 13006 | 8 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5634 | 87 | 1.544196% |
| B | 5634 | 177 | 3.141640% |
| C | 5634 | 4357 | 77.334043% |
| D | 5632 | 59 | 1.047585% |

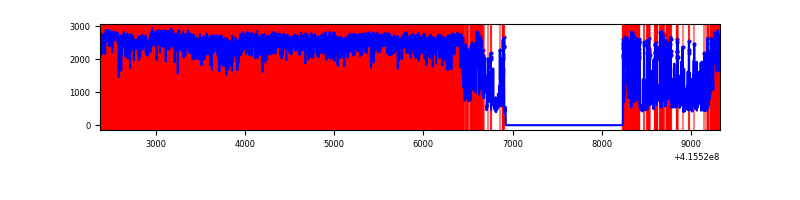

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6946 | 5633 | 73 | 73 | 1.05% | 1.30% |  |
| B | 6946 | 5633 | 126 | 126 | 1.81% | 2.24% |  |
| C | 6946 | 5633 | 4372 | 4372 | 62.94% | 77.61% |  |
| D | 6946 | 5631 | 65 | 65 | 0.94% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 414679 | 3227.15 | 622 | 609 | 128.3 |
| A | 13 | 248 | 260007 | 2021.68 | 622 | 609 | 128.3 |
| A | 2 | 79 | 37288 | 285.87 | 622 | 609 | 128.3 |
| B | 5 | 172 | 323018 | 2658.63 | 615 | 597 | 121.3 |
| B | 5 | 255 | 207150 | 1703.2 | 615 | 597 | 121.3 |
| B | 15 | 85 | 25508 | 205.41 | 615 | 597 | 121.3 |
| C | 9 | 187 | 10836903 | 132978.16 | 346 | 348 | 81.5 |
| C | 15 | 214 | 137318 | 1680.79 | 346 | 348 | 81.5 |
| C | 14 | 254 | 5826 | 67.22 | 346 | 348 | 81.5 |
| D | 9 | 19 | 160071 | 1060.12 | 610 | 593 | 150.4 |
| D | 13 | 249 | 118769 | 785.57 | 610 | 593 | 150.4 |
| D | 12 | 0 | 110384 | 729.83 | 610 | 593 | 150.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

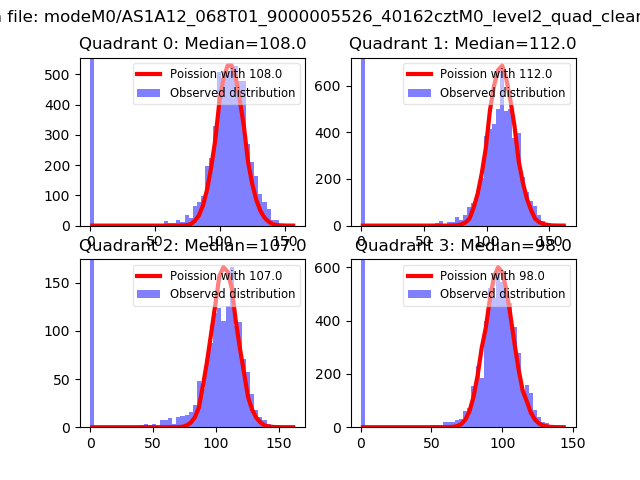

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

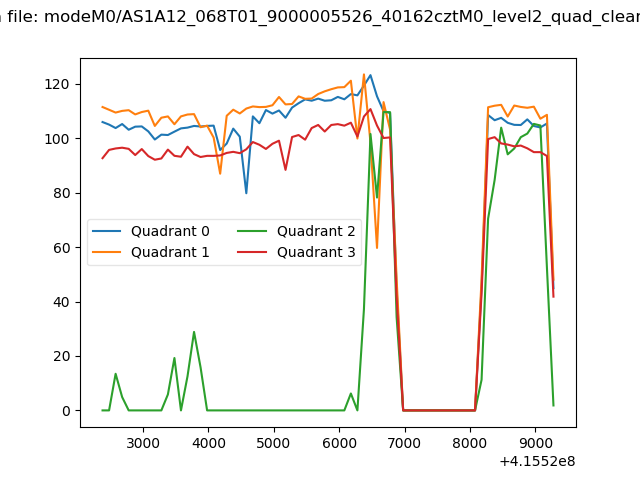

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

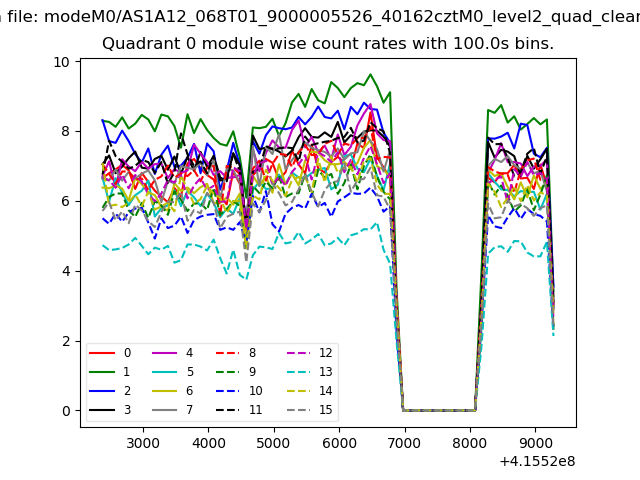

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

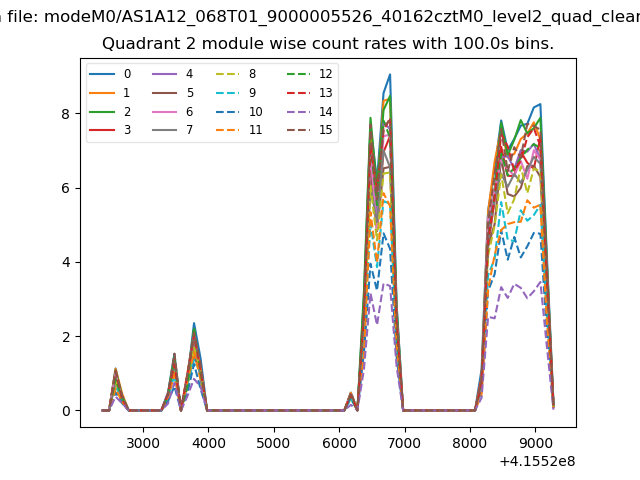

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

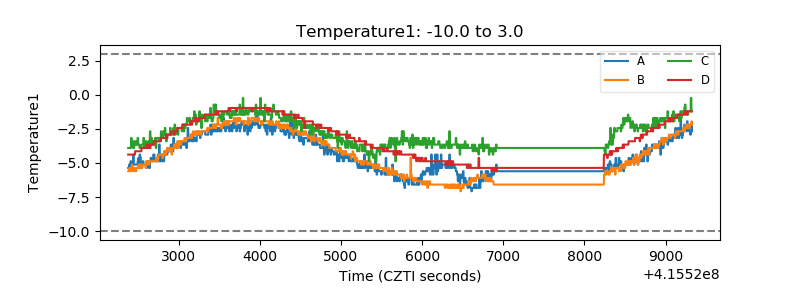

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

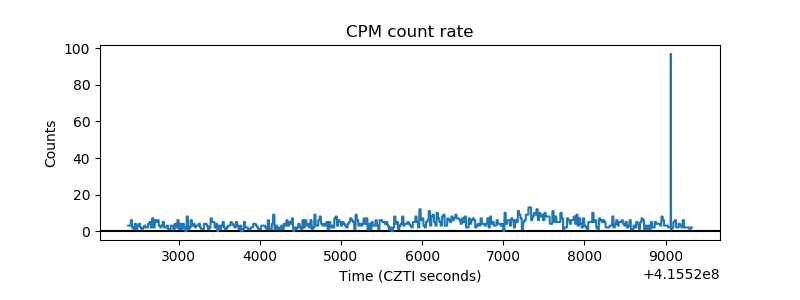

| _CPM_Rate |  |

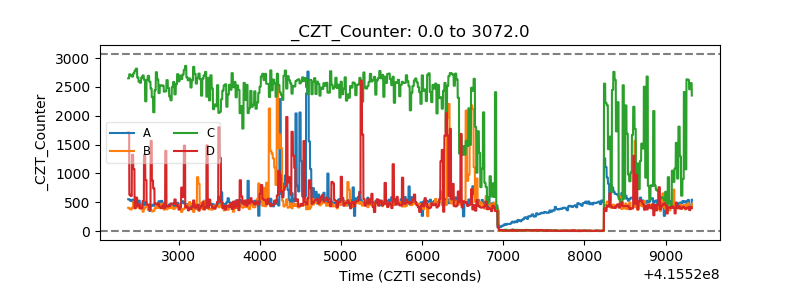

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
