| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_022T01_9000005540_40473cztM0_level2.fits | modeM0/AS1A12_022T01_9000005540_40473cztM0_level2_quad_clean.evt |
| Size (bytes) | 283,754,880 | 86,719,680 |
| Size | 270.6 MB | 82.7 MB |
| Events in quadrant A | 2,709,247 | 594,382 |
| Events in quadrant B | 2,299,521 | 610,180 |
| Events in quadrant C | 2,475,693 | 575,260 |
| Events in quadrant D | 2,614,254 | 483,016 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11180 | 3 |
| B | 0 | 10414 | 2 |
| C | 0 | 10604 | 2 |
| D | 0 | 11375 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5181 | 10 | 0.193013% |
| B | 5181 | 8 | 0.154410% |
| C | 5181 | 7 | 0.135109% |
| D | 5181 | 543 | 10.480602% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

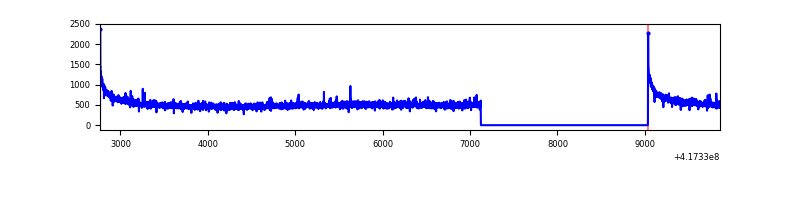

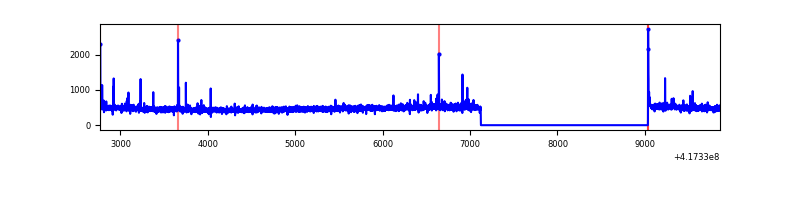

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7094 | 5182 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7094 | 5182 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7094 | 5182 | 5 | 5 | 0.07% | 0.10% |  |
| D | 7094 | 5182 | 77 | 77 | 1.09% | 1.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 462232 | 3929.63 | 576 | 566 | 117.5 |
| A | 13 | 6 | 6792 | 52.99 | 576 | 566 | 117.5 |
| A | 3 | 137 | 6293 | 48.75 | 576 | 566 | 117.5 |
| B | 3 | 112 | 32294 | 287.95 | 569 | 552 | 110.2 |
| B | 5 | 255 | 17410 | 152.93 | 569 | 552 | 110.2 |
| B | 12 | 111 | 13928 | 121.34 | 569 | 552 | 110.2 |
| C | 15 | 214 | 229529 | 1782.72 | 553 | 556 | 128.4 |
| C | 9 | 187 | 35338 | 270.8 | 553 | 556 | 128.4 |
| C | 14 | 254 | 30847 | 235.84 | 553 | 556 | 128.4 |
| D | 12 | 227 | 174320 | 1343.45 | 524 | 508 | 129.4 |
| D | 12 | 191 | 167578 | 1291.34 | 524 | 508 | 129.4 |
| D | 12 | 128 | 77291 | 593.48 | 524 | 508 | 129.4 |

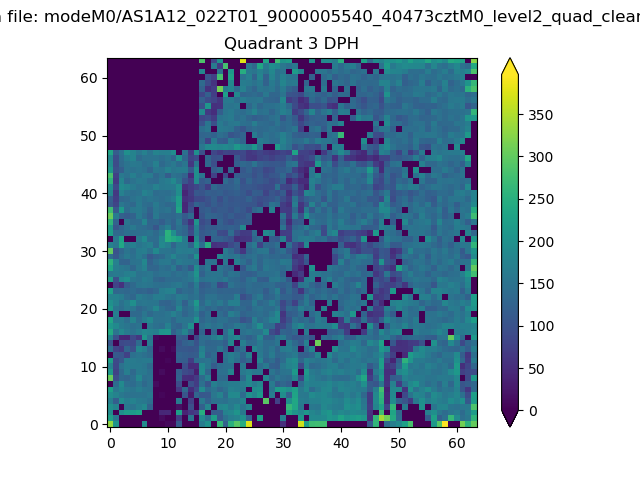

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

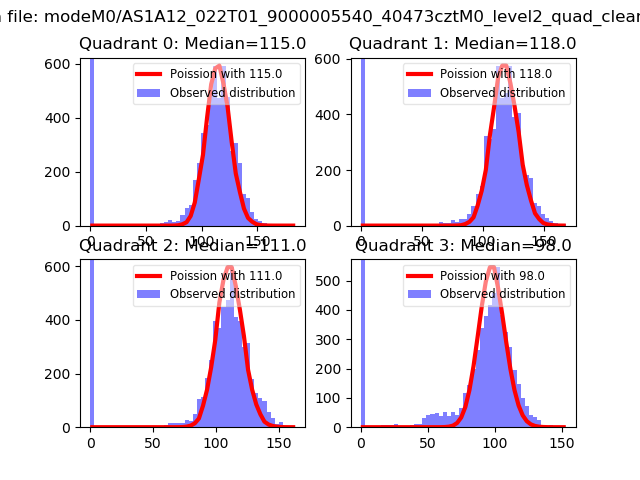

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

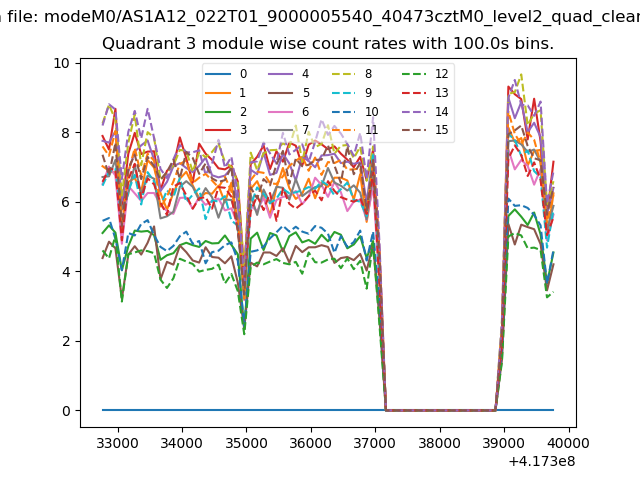

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

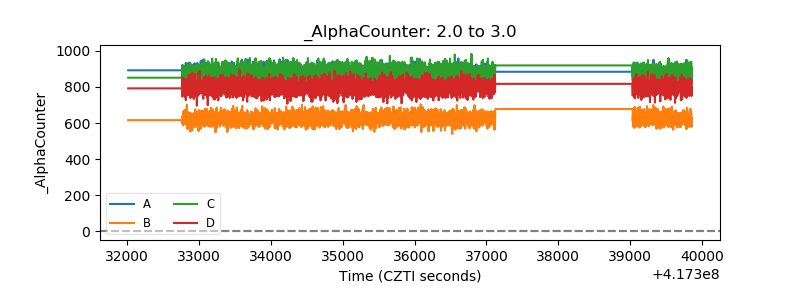

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

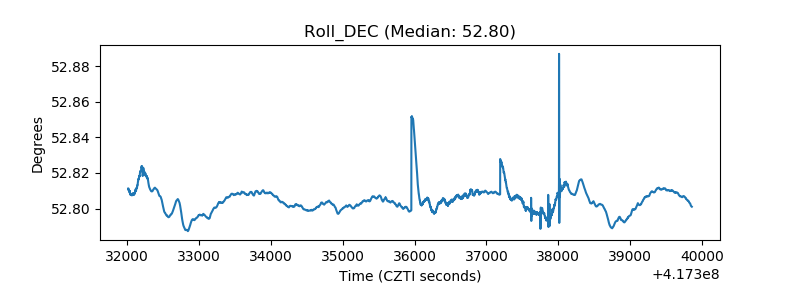

| _Roll_DEC |  |

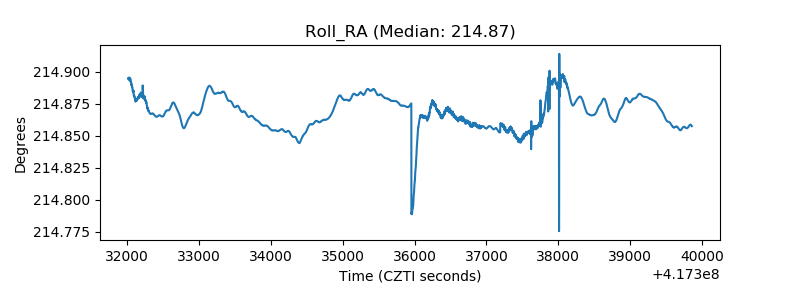

| _Roll_RA |  |
| Veto Counter |  |
