| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_022T01_9000005540_40476cztM0_level2.fits | modeM0/AS1A12_022T01_9000005540_40476cztM0_level2_quad_clean.evt |
| Size (bytes) | 304,280,640 | 89,832,960 |
| Size | 290.2 MB | 85.7 MB |
| Events in quadrant A | 2,927,746 | 621,439 |
| Events in quadrant B | 2,518,798 | 634,460 |
| Events in quadrant C | 2,679,027 | 591,175 |
| Events in quadrant D | 2,737,681 | 514,451 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11874 | 3 |
| B | 0 | 10638 | 2 |
| C | 0 | 11019 | 2 |
| D | 0 | 11550 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 36 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5129 | 31 | 0.604406% |
| B | 5129 | 18 | 0.350946% |
| C | 5129 | 43 | 0.838370% |
| D | 5129 | 422 | 8.227725% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7253 | 5130 | 17 | 17 | 0.23% | 0.33% |  |
| B | 7253 | 5130 | 13 | 13 | 0.18% | 0.25% |  |
| C | 7253 | 5130 | 37 | 37 | 0.51% | 0.72% |  |
| D | 7253 | 5130 | 44 | 44 | 0.61% | 0.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 480915 | 4081.74 | 585 | 574 | 117.7 |
| A | 13 | 248 | 106294 | 898.37 | 585 | 574 | 117.7 |
| A | 9 | 191 | 70632 | 595.32 | 585 | 574 | 117.7 |
| B | 3 | 112 | 91858 | 833.3 | 578 | 563 | 109.6 |
| B | 0 | 230 | 73709 | 667.65 | 578 | 563 | 109.6 |
| B | 5 | 255 | 52031 | 469.78 | 578 | 563 | 109.6 |
| C | 14 | 254 | 226778 | 1726.13 | 564 | 568 | 131.1 |
| C | 15 | 214 | 224043 | 1705.26 | 564 | 568 | 131.1 |
| C | 0 | 10 | 12814 | 93.45 | 564 | 568 | 131.1 |
| D | 2 | 250 | 165376 | 1246.34 | 543 | 530 | 132.3 |
| D | 12 | 191 | 144909 | 1091.6 | 543 | 530 | 132.3 |
| D | 13 | 249 | 96915 | 728.73 | 543 | 530 | 132.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

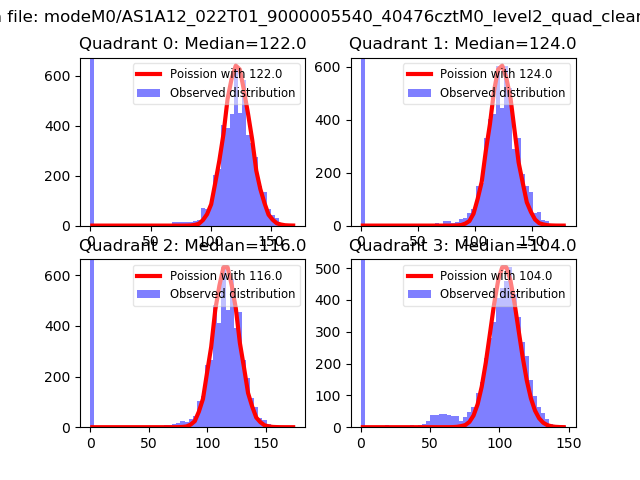

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

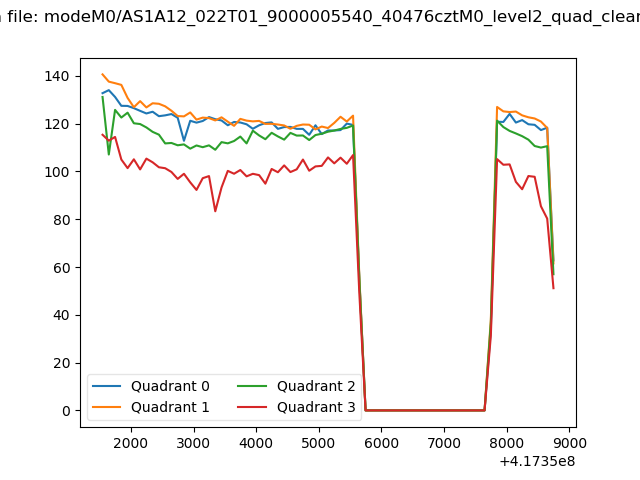

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

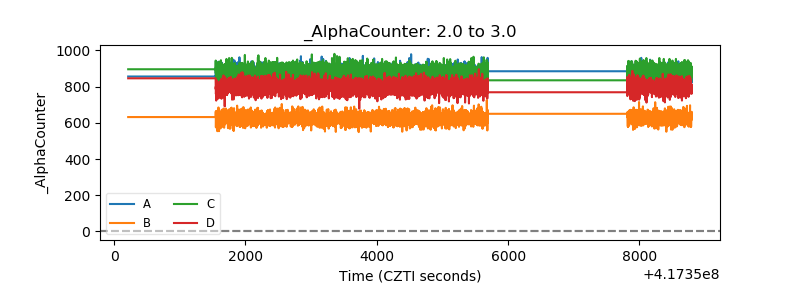

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

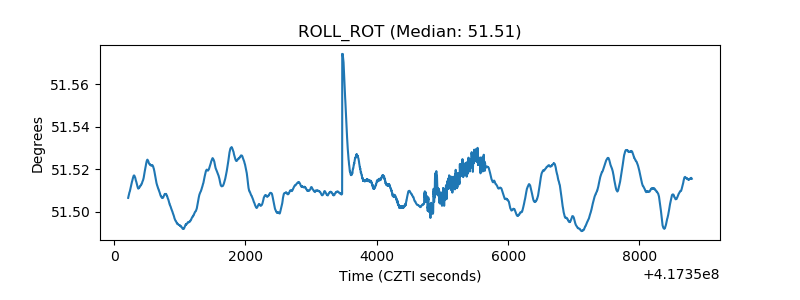

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

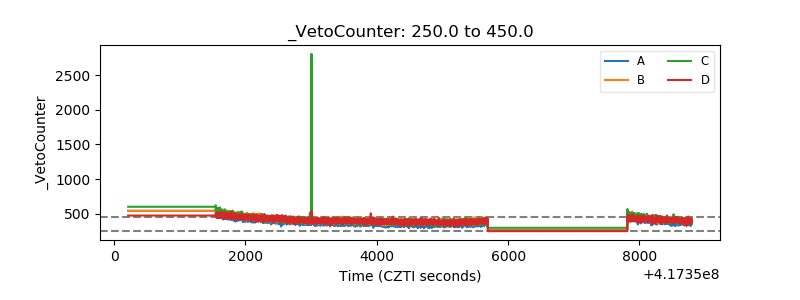

| Veto Counter |  |
