| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_022T01_9000005540_40481cztM0_level2.fits | modeM0/AS1A12_022T01_9000005540_40481cztM0_level2_quad_clean.evt |
| Size (bytes) | 178,410,240 | 45,550,080 |
| Size | 170.1 MB | 43.4 MB |
| Events in quadrant A | 1,375,165 | 308,379 |
| Events in quadrant B | 1,171,837 | 312,711 |
| Events in quadrant C | 1,296,363 | 303,968 |
| Events in quadrant D | 2,531,344 | 245,773 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6173 | 2 |
| B | 0 | 5866 | 1 |
| C | 0 | 5968 | 1 |
| D | 0 | 9585 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60 | 0 |
| B | 0 | 60 | 0 |
| C | 0 | 60 | 0 |
| D | 0 | 60 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2917 | 5 | 0.171409% |
| B | 2917 | 1 | 0.034282% |
| C | 2917 | 3 | 0.102845% |
| D | 2917 | 465 | 15.941035% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2917 | 2917 | 2 | 2 | 0.07% | 0.07% |  |
| B | 2917 | 2917 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2917 | 2917 | 1 | 1 | 0.03% | 0.03% |  |
| D | 2917 | 2917 | 275 | 275 | 9.43% | 9.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 253015 | 4200.91 | 285 | 280 | 60.2 |
| A | 9 | 191 | 5896 | 93.35 | 285 | 280 | 60.2 |
| A | 12 | 189 | 4353 | 67.7 | 285 | 280 | 60.2 |
| B | 4 | 170 | 23138 | 404.4 | 287 | 279 | 56.5 |
| B | 3 | 112 | 8582 | 146.89 | 287 | 279 | 56.5 |
| B | 5 | 255 | 7703 | 131.34 | 287 | 279 | 56.5 |
| C | 15 | 214 | 126372 | 1866.44 | 285 | 287 | 67.6 |
| C | 9 | 187 | 45614 | 670.98 | 285 | 287 | 67.6 |
| C | 0 | 10 | 6827 | 96.81 | 285 | 287 | 67.6 |
| D | 12 | 227 | 1205179 | 18003.73 | 262 | 254 | 66.9 |
| D | 12 | 191 | 72903 | 1085.51 | 262 | 254 | 66.9 |
| D | 2 | 250 | 67581 | 1005.99 | 262 | 254 | 66.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

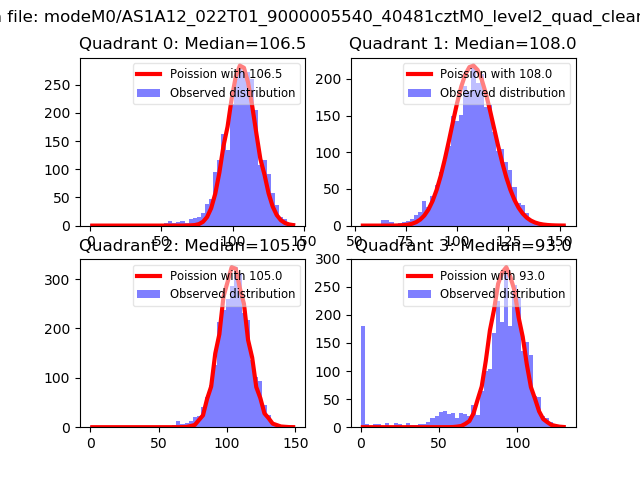

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

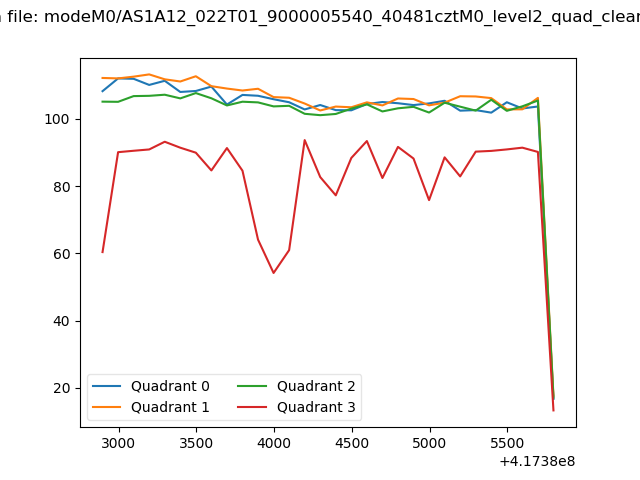

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

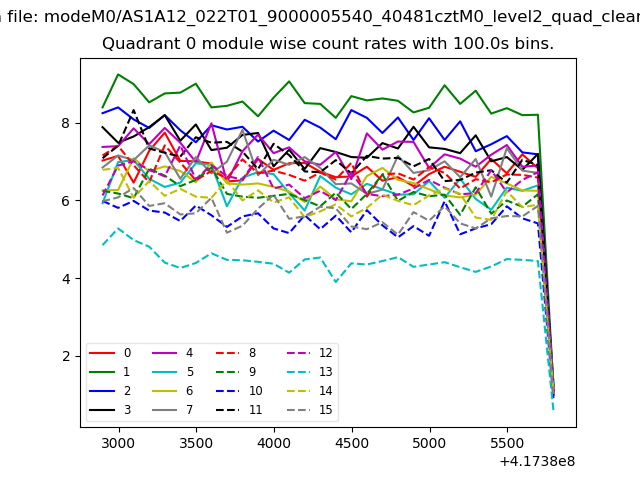

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

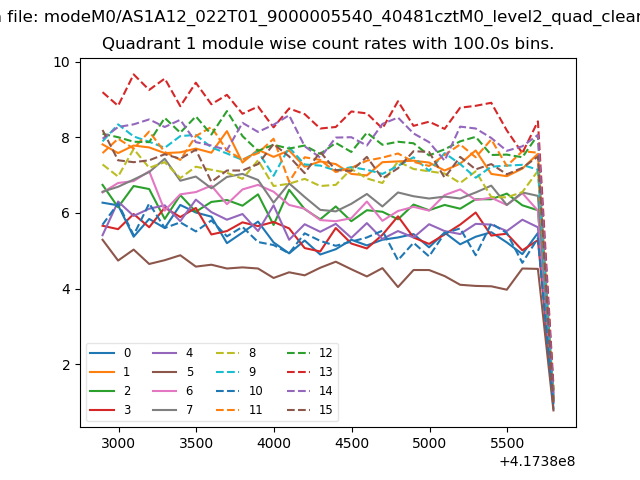

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

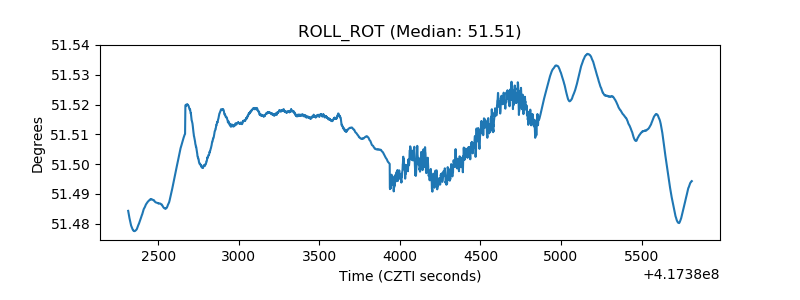

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
